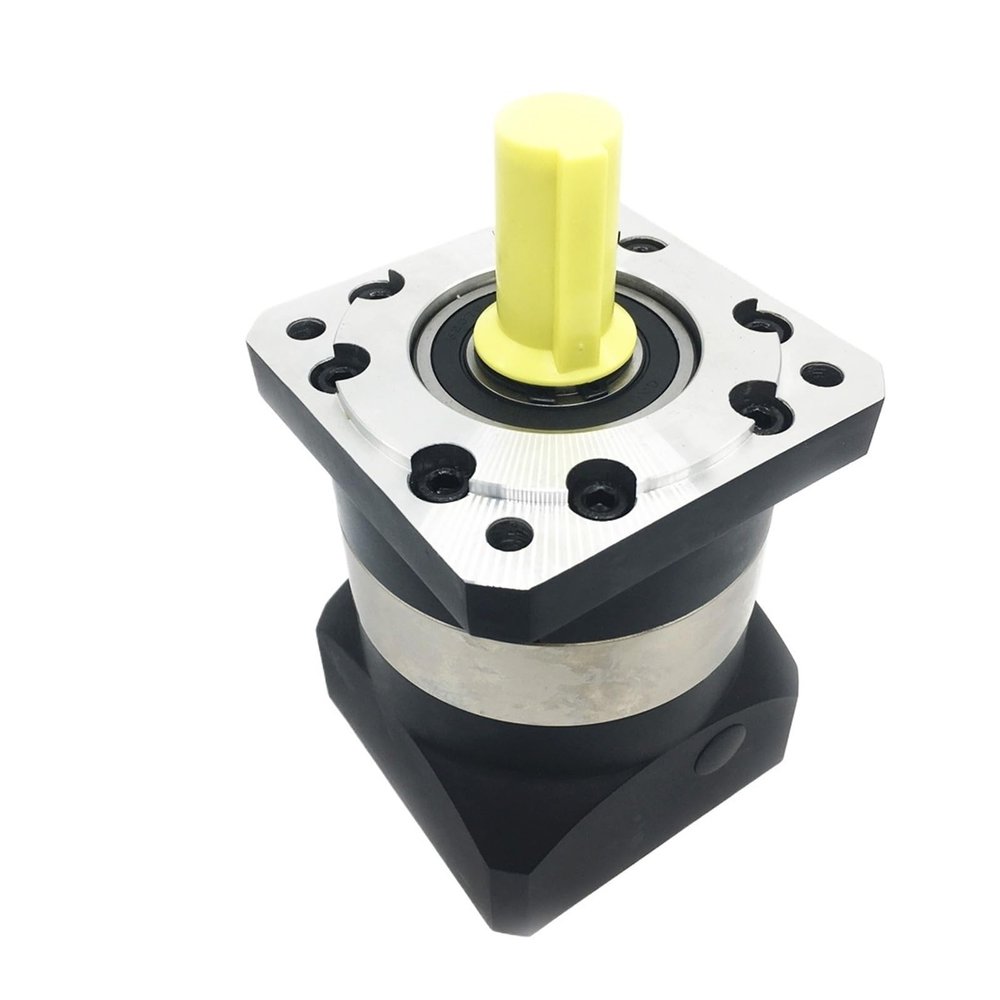

ZXAOMMBEA Planetary Gearbox, 5:1 Ratio, 35 mm Input Shaft, for 180 mm Servo Motors

Description

• YZHATDH planetary gearbox
• Reduction ratios: 3:1, 10:1, 20:1, 40:1, 50:1, or 100:1
• 35 mm input shaft; 55 mm output shaft
• For 180 mm flange servo motors (5.5 kW/7.5 kW)
• High precision

Motor. Included: 1 x planetary reducer 4 x mounting screws 1 x key Reducer parameters: Speed ratios: Single stage (L1): 3:1 / 4:1 / 5:1 / 7:1 / 10:1. Two stages (L2): 20:1 / 25:1 / 35:1 / 40:1 / 50:1 / 70:1 / 100:1. Product type: Planetary gearbox. Input shaft: 35 mm. Output shaft: 55 mm. Rated torque: 210 Nm (10:1 / 100:1). 358 Nm (7:1 / 70:1). 364 Nm (4:1 / 5:1 / 20:1 / 25:1 / 35:1 / 40:1 / 50:1). 423 Nm (3:1). Maximum torque: 2 times the rated torque. Emergency braking torque: 2.5 times the rated torque. Housing length: L1 = 276 mm; L2 = 317 mm. Compatible motor type: Servo motor with a 180 mm flange. Backlash accuracy: L1 8 arcmin; L2 12 arcmin. Maximum radial force: 1,240 N. Maximum axial force: 1,000 N. Torque stiffness: 11 Nm/arcmin. Maximum input speed: 4,500 rpm. Rated input speed: 3,000 rpm. Noise level: less than 68 dB. Service life: 20,000 hours. Full-load efficiency: L1 96%; L2 93%. Torque: 423 Nm. Model number: PLF160-L1/L2-35-114.3-200. Construction: Gearbox. Type: Geared motor. Protection feature: Leak-resistant. Commutation: Brush. Efficiency: IE1. Origin: CN. Certification: CCC. Product type: Planetary gearbox. Input shaft: 35 mm. Output shaft: 55 mm.
