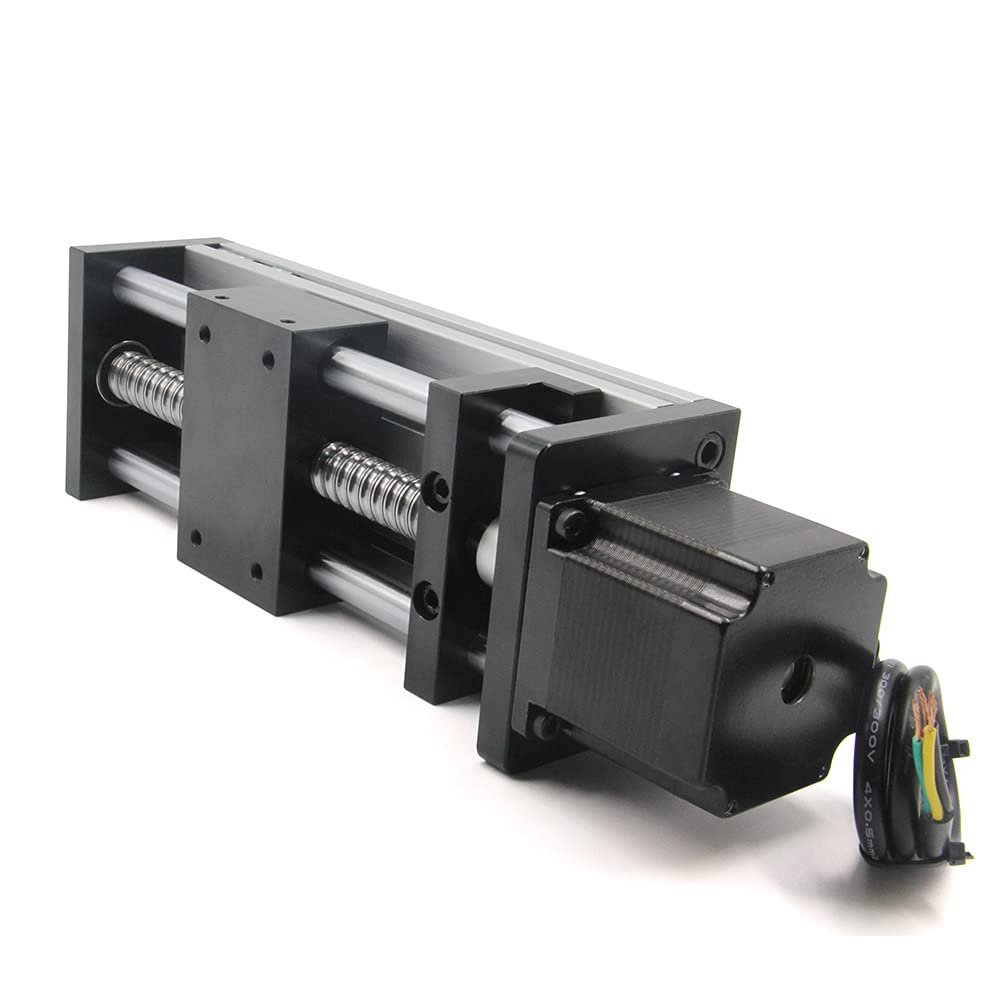

Zeberoxyz 100 mm Linear Stage Actuator with SFU1605 Ball Screw and NEMA23 Stepper Motor

Description

• High-quality metal construction with fine workmanship, stable performance, and high operating efficiency
• Positioning repeatability: 0.03 mm
• Maximum horizontal load: 30 kg; maximum vertical load: 15 kg
• Speed: 0100 mm/s
• Effective stroke: 100 mm; screw lead: 5 mm per revolution
• Includes 1 optical linear actuator with NEMA23 stepper motor

Specifications:
Product name: 100 mm effective stroke, dual optical-axis guide, SFU1605 ball screw with NEMA23 stepper motor.

Installation: 4 M5 threaded holes for workpiece mounting.

Stepper motor parameters:
Step angle: 1.8 degrees
Motor flange size: 57 mm
Motor length: 56 mm
Holding torque: 1.2 Nm
Current: 3 A
Resistance: 0.8 ohm
Inductance: 2.4 mH
Rotor inertia: 440 g
Cables: 4
Wiring: Red: A+; Green: A; Yellow: B+; Blue: B

Linear-stage actuator parameters:
Effective stroke: 100 mm
Overall length: 276 mm
Type: Two-axis system form
Ball screw type: SFU1605 (diameter: 16 mm; screw lead: 5 mm)
Ball screw grade: C7
Weight: approximately 2,317 g

Package contents:
1 optical linear actuator with NEMA23 stepper motor.

Please note: Manual measurements may have deviations of 03 mm. Due to differences in screen settings and lighting, the actual product color may vary slightly from the color shown. If you have any questions or problems, please contact us; we will do our best to assist you within 24 hours.
