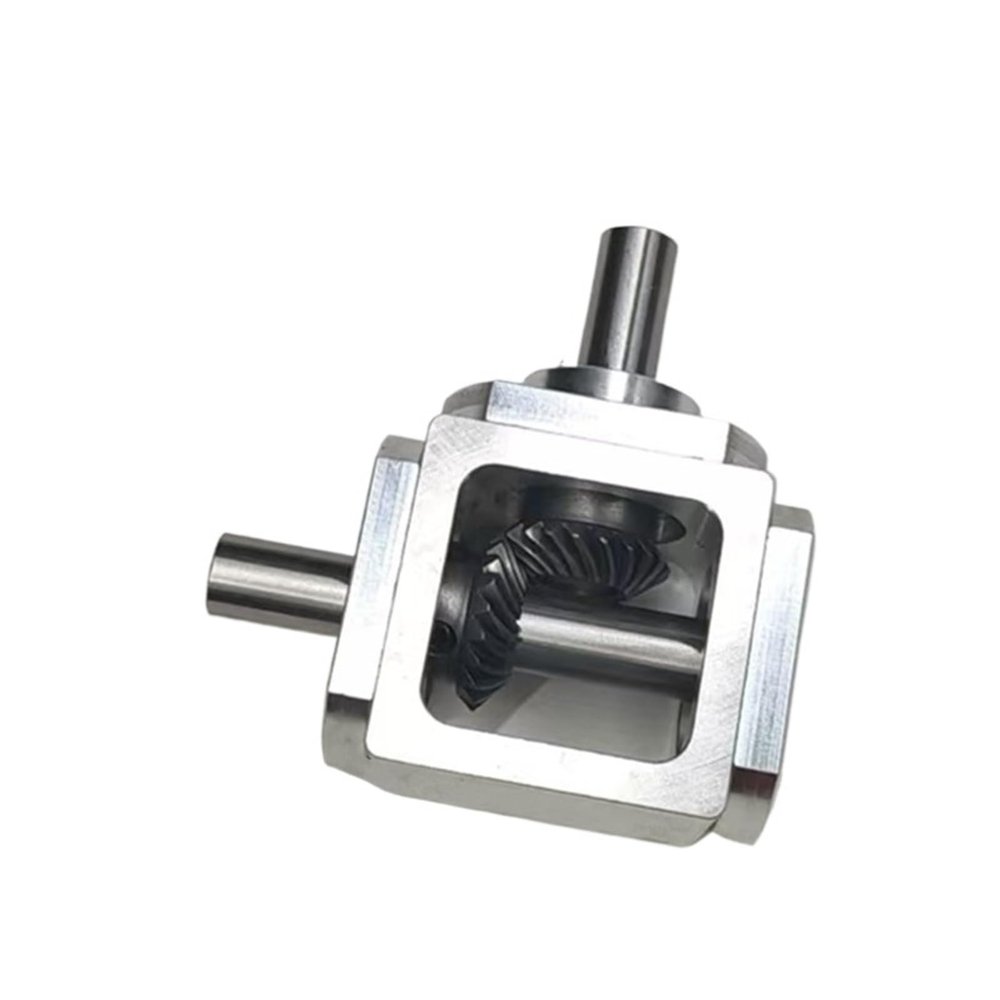

YXZKJZJ 1:1 T-Type Commutator Shaft Right-Angle Bevel Gear Reducer, 10 mm, Model A

Description

• 1:1 T-type commutator shaft designed for power transmission with a robust construction
• Single output and same-direction or reverse dual outputs, all with 10 mm shaft diameters
• Dimensions: 40 mm L 40 mm W 30 mm H; wall thickness: 5 mm
• Aluminum housing, stainless steel optical shaft, and steel bevel gear
• Recommended speed: 2,000 rpm; spiral bevel gear: module 1, 20 teeth, 10 mm bore

Parameters: Type: reducer. Single output: 10 mm shaft diameter. Same-direction dual output: 10 mm shaft diameter. Reverse dual output: 10 mm shaft diameter. Dimensions: 40 40 30 mm; wall thickness: 5 mm. Housing material: aluminum. Optical shaft material: stainless steel. Bevel gear material: steel. Speed ratio: 1:1. Recommended speed: 2,000 rpm. Spiral bevel gear specifications: module 1, 20 teeth, 10 mm bore.
