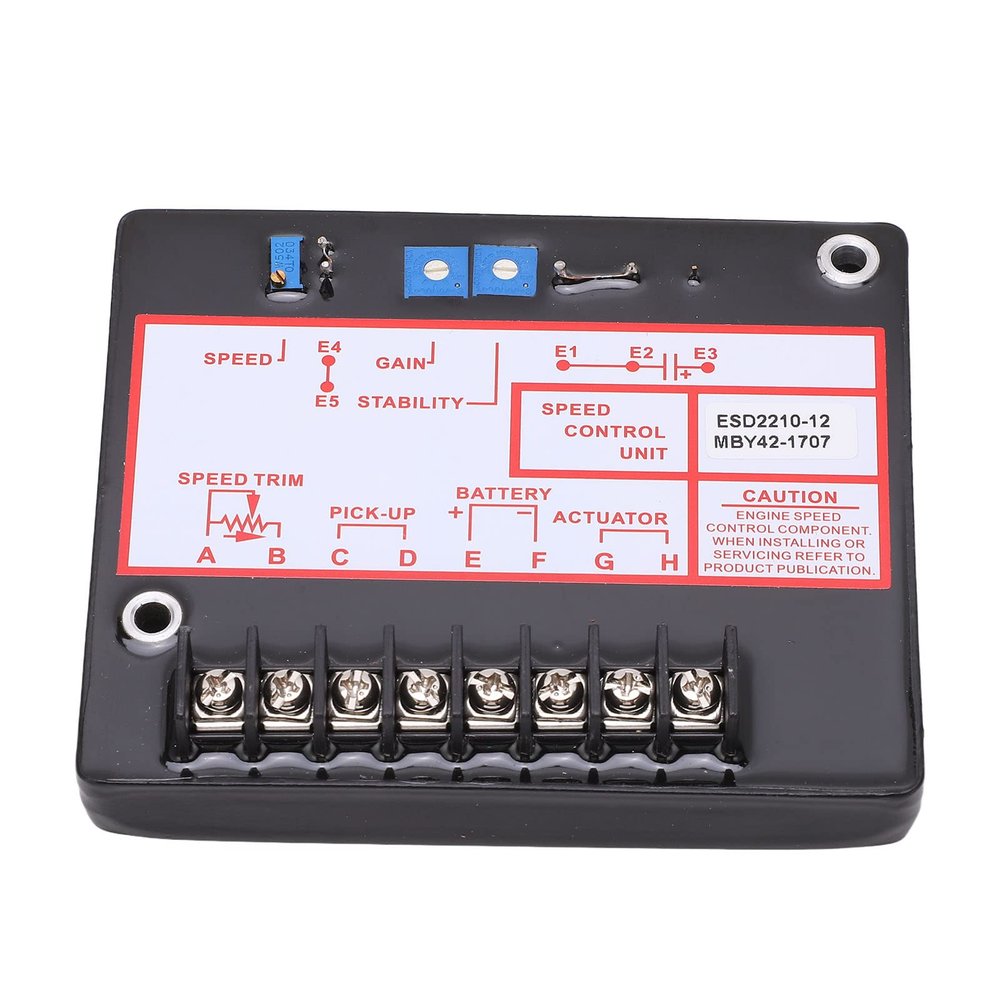

YWBL-WH ESD2210-12 Generator Engine Governor Control Panel, Fast and Precise Speed Controller

Description

• Good protection: Protects against reverse voltage, transients, accidental actuator shorts, and power loss
• Closed-loop control: Supports synchronizing or droop mode when connected to a proportional electric actuator and speed sensor
• Durable construction: ABS plastic housing with excellent toughness, wear resistance, and aging resistance
• Wide operating range: DC 1224 V supply, 1,0007,000 Hz frequency adjustment, and AC 150 V, 858,500 Hz speed sensor range
• Fast, precise response: Controls generator speed for rapid and precise response to load changes

1. Main purpose: This speed control unit is a fully electronic device for controlling generator speed, providing a fast and precise response to transient load changes. 2. Closed-loop control: When connected to a proportional electric actuator and provided with a magnetic speed sensor signal, the engine is controlled in synchronizing or droop mode. 3. Good protection: Protects against battery reverse polarity, transient voltage, accidental actuator short circuits, speed sensor signal loss, and battery power loss. 4. Operating range: The supply voltage is 1224 V DC, the frequency adjustment range is 1,0007,000 Hz, and the speed sensor signal range is 150 V AC, 858,500 Hz. 5. Plastic housing: The generator governor housing is made of ABS plastic, offering good toughness, wear resistance, and aging resistance for a long service life. Specifications: Item type: Generator speed governor Model: ESD2210-12 Material: ABS Supply voltage: DC 1224 V Maximum output current: DC 4 A Frequency adjustment range: 1,0007,000 Hz Speed sensor signal range: AC 150 V, 858,500 Hz External frequency adjustment range: 300 Hz Idle speed adjustment range: Speed setting -3,800 Hz to -1,300 Hz Package contents: 1 x Generator governor 1 x User manual
