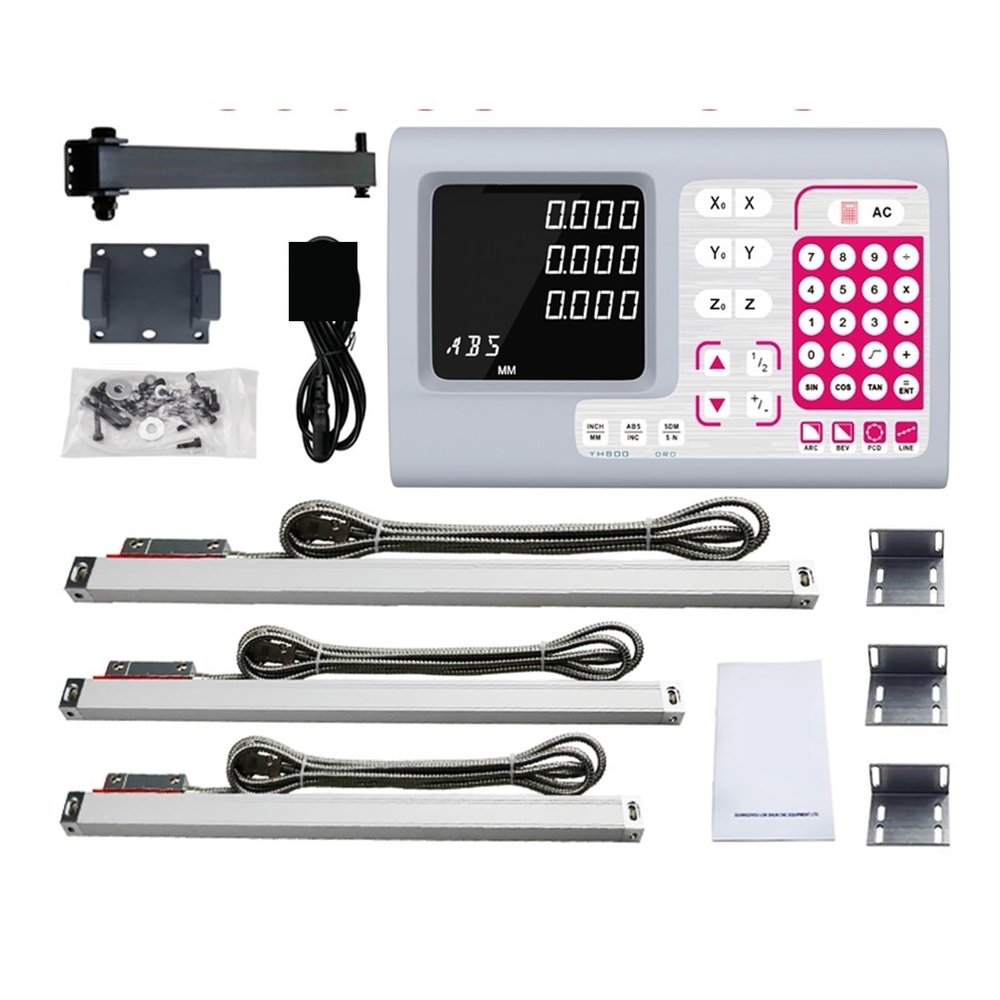

YH800-3S 3-Axis DRO Set with 3 Linear Scales, 5 μm, 50–1000 mm

Description

• Professional design with a clean appearance and fast, responsive counting.
• Die-cast alloy housing with surface coating, dust-resistant and wear-resistant, with good shielding.
• Independent power supply, high stability, and strong resistance to interference.
• Power and signal interference protection with a high-quality, durable keypad.
• Direct access to functions such as sine, cosine, and tangent calculations.
• YH800-3S digital readout with zero clearing, reset, mm/inch mode, ABS/INC conversion, and 200 sets of sub-datum data.
• Additional functions include power-off memory, center finding, linear error compensation, sleep mode, calculator, drilling patterns, arc and inclined-plane machining, digital filtering, vibration filtering, and radius/diameter selection.
• Compatible with TTL signals and DB9 connectors.
• Selectable resolution: 10 m, 5 m, 2 m, 1 m, or 0.5 m.
• Three 5 m linear scales with measuring lengths from 0 to 1000 mm (040 in).
• Linear scale total length: measuring length plus 140 mm, up to 1140 mm.
• Linear scale input voltage: 5 V; grating pitch: 0.02 mm; cable length: 3 m.
• Linear scale signal wiring: pin 2 black 0 V, pin 6 green A, pin 7 red 5 V, pin 8 white B.

The YH800-3S 3-axis digital readout set includes one digital readout system and three 5 m linear optical scales for lathe or milling machines. The compact DRO is designed to occupy less space while providing functions such as zero clearing, coordinate conversion, calculator operation, drilling patterns, machining functions, error compensation, and filtering. The linear scales have measuring lengths from 0 to 1000 mm, a 5 m resolution, 5 V input voltage, DB9 connectors, and 3 m cables.
