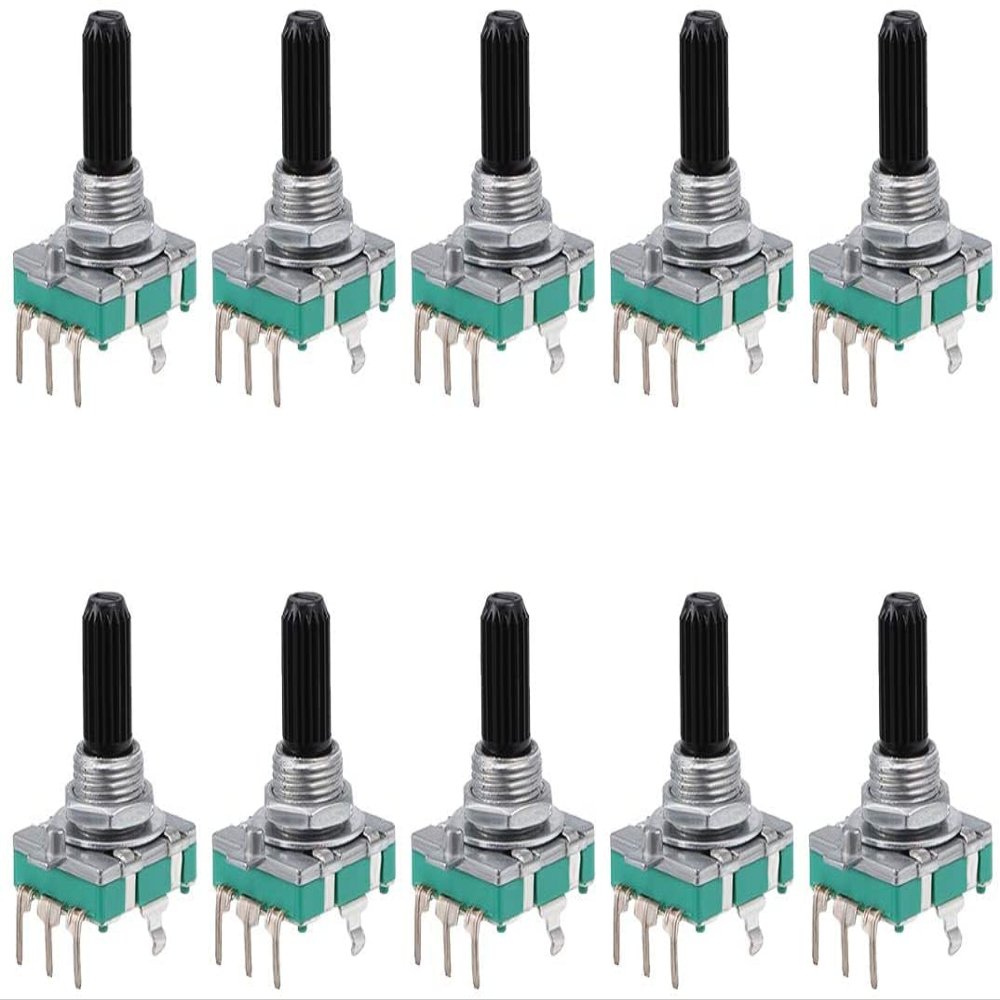

XYWHPGV 360° Rotary Encoder Code Switch, EC16 Digital Potentiometer, 3 Pins, 20 Positions, 10-Pack

Description

• Type: Encoder code switch; model: EC16; 360 rotation; 20 pulses; rated voltage: 5 V.
• 5 pins total: 3 functional signal pins and 2 mounting pins.
• Shaft diameter: 6 mm (0.24 in); shaft height: 20 mm (0.79 in); thread diameter: 9 mm (0.35 in).
• Overall dimensions: 20.5 16 31 mm (0.81 0.63 1.22 in, H).
• During forward rotation, the A-line phase leads the B-line phase; during reverse rotation, the B-line phase leads the A-line phase.
• The phase relationship and direction of rotation can be identified with a simple digital logic circuit using an exclusive-OR gate and a D flip-flop.
• Output pulses can be counted during clockwise and counterclockwise rotation without the counting limit of rotary potentiometers.
• The encoder switch can reset the output state, allowing counting to start from 0.
• Applications: industrial control, robotics, camera lenses, computer input devices such as optomechanical mice and trackballs, and controlled-voltage rheometers.
• Suitable for Raspberry design, sensor-module design, PCB design, dimming and sound applications, 3D printers, LCD displays, and auto CD players; compatible with PIC or ATMEL microcontrollers.

A rotary encoder is an electromechanical device that converts the angular position or movement of a shaft or axle into digital output signals. Rotary encoders are used in applications that require monitoring or control of mechanical systems, including industrial controls, robotics, camera lenses, computer input devices such as optomechanical mice and trackballs, and controlled-voltage rheometers. Specifications: Model: EC16; adjustment method: 360; pin count: 5; number of positions: 20; rated voltage: 5 V; shaft diameter: 6 mm (0.24 in); shaft height: 20 mm (0.79 in); thread diameter: 9 mm (0.35 in); overall dimensions: 20.5 16 31 mm (0.81 0.63 1.22 in, H). Note: Avoid storing the product in locations with high temperature, high humidity, or corrosive gases. Do not expose the product to water, as this may cause an abnormal output waveform.
