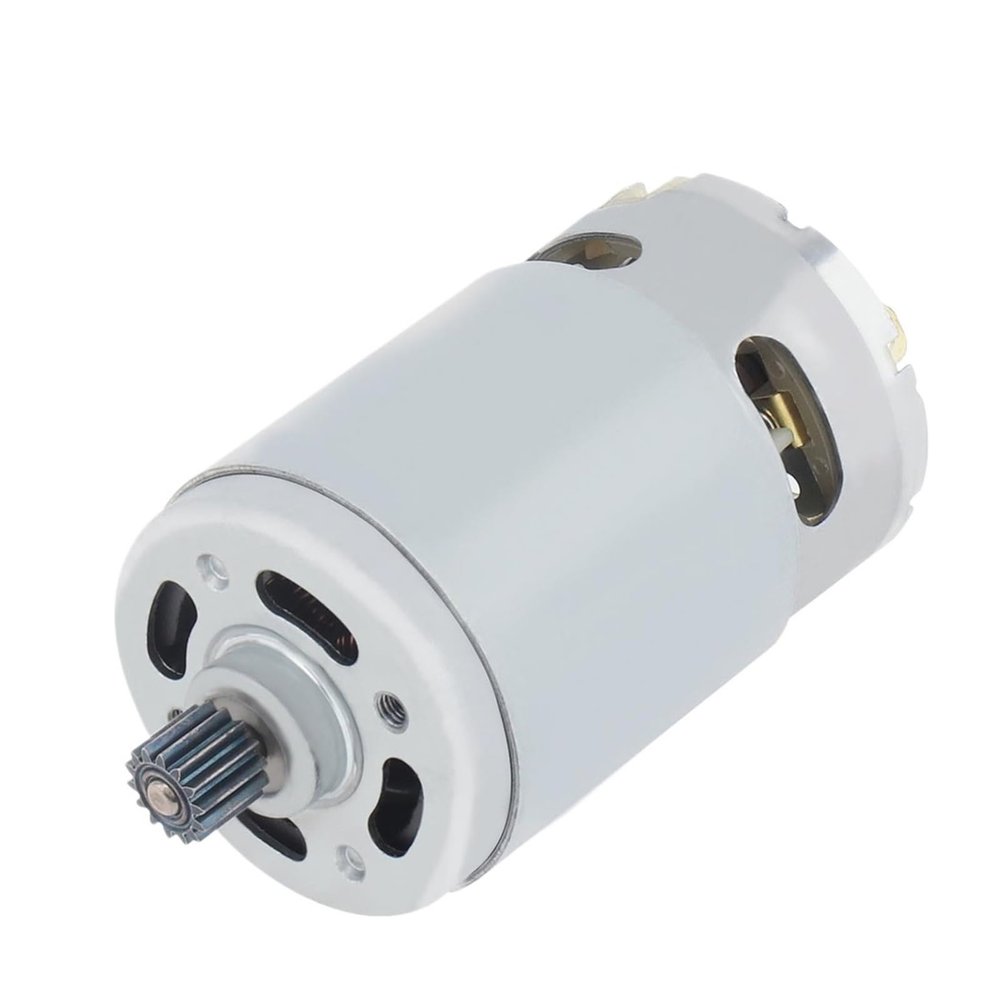

WENH RS550 DC Motor, 11-Tooth, 8.8 mm, 10.8 V

Description

• RS550 DC motor with 915 teeth, designed as a replacement for rechargeable lithium-ion cordless drills and screwdrivers.
• Stainless steel housing and pure copper coil; low current, high efficiency, and strong output power.
• Low noise, high speed, high torque, good heat dissipation, stable performance, and long service life.
• Easy to install; the front can be secured with two M3 screws.
• Suitable for cordless drills, bench drills, electric drills, and power screwdrivers.

Supported voltages: 10.8 V / 12 V / 14.4 V / 16.8 V / 18 V / 21 V / 25 V Supporting gear teeth: 9 / 11 / 12 / 13 / 14 / 15 No-load speed: 20,00030,000 rpm Rated power: approximately 80 W Motor housing length: 75.1 mm; diameter: 37.2 mm Motor shaft diameter: 3.2 mm; length: 12 mm Motor gear diameter: 7.9 mm; thickness: 6.5 mm Motor mounting: 2 M3 screws; spacing: 25 mm Operating temperature: 050C Storage conditions: 040C; relative humidity: 1590% How to choose a motor for a rechargeable electric drill or screwdriver: 1. Confirm that your motor model is RS550 or that it has an approximately 37.2 mm motor diameter, approximately 57 mm motor body length, and approximately 75.1 mm total length. 2. Confirm your motor voltage (DC 10.825 V) and choose a motor with the same or a similar voltage. 3. Confirm the number of teeth on your motor (915 teeth). Select a motor with the same number of teeth and check that the gear outside diameter and thickness are the same or similar. Some compatible lithium-ion cordless drill models: 10.8 V: GSR 10.8-2-LI, GSB 10.8-2-LI, GSR 108-2-LI, GSB 108-2-LI 12 V: GSR 12-2-LI, GSB 12-2-LI, GSR 120-LI, GSB 120-LI 14.4 V: GSR 14.4-2-LI, GSB 14.4-2-LI, GSR 144-2-LI, GSB 144-2-LI 18 V: GSR 18-2-LI, GSB 18-2-LI, GSR 180-2-LI, GSB 180-2-LI Additional listed model and identification references: GSR 10.8 V LI-2 3 601 H68 100; GSR 12-LI 3 601 J92 901; GSR 12-2-LI 3 601 H68 101; PS21 3 601 J92 910; GSR 12V-15 3 601 H68 102; PS21 3 601 J92 911; PS31 3 601 H68 110; GSR 10.8 V LI 3 601 J92 9E0; PS31 3 601 H68 111; GSR 10.8 V LI 3 601 J92 9F0; GSR 10.8-2-LI 3 601 H68 150; GSR 10.8 V LI 3 601 J92 9G0; GSR 10.8-2-LI 3 601 H68 180; GSR 10.8 V LI 3 601 J92 9H0; GSR 12-2-LI 3 601 H68 181; GSR 12V-15FC 3 601 JF6 000; GSR 10.8-2-LI 3 601 H68 1B0; GSR 12V-140FC 3 601 JF6 010; GSR 10.8-2-LI 3 601 H68 1C0; GSR 10.8-15 FC 3 601 JF6 050; GSR 10.8-2-LI 3 601 H68 1E0; GSR 12V-15FC 3 601 JF6 080; GSR 10.8-2-LI 3 601 H68 1G0; GSR 10.8-15 FC 3 601 JF6 0B0; GSR 10.8-2-LI 3 601 H68 1H0; GSR 12V-15FC 3 601 JF6 0E0; GSR 12-2-LI 3 601 H68 1L0; GSR 12V-15FC 3 601 JF6 0K0.
