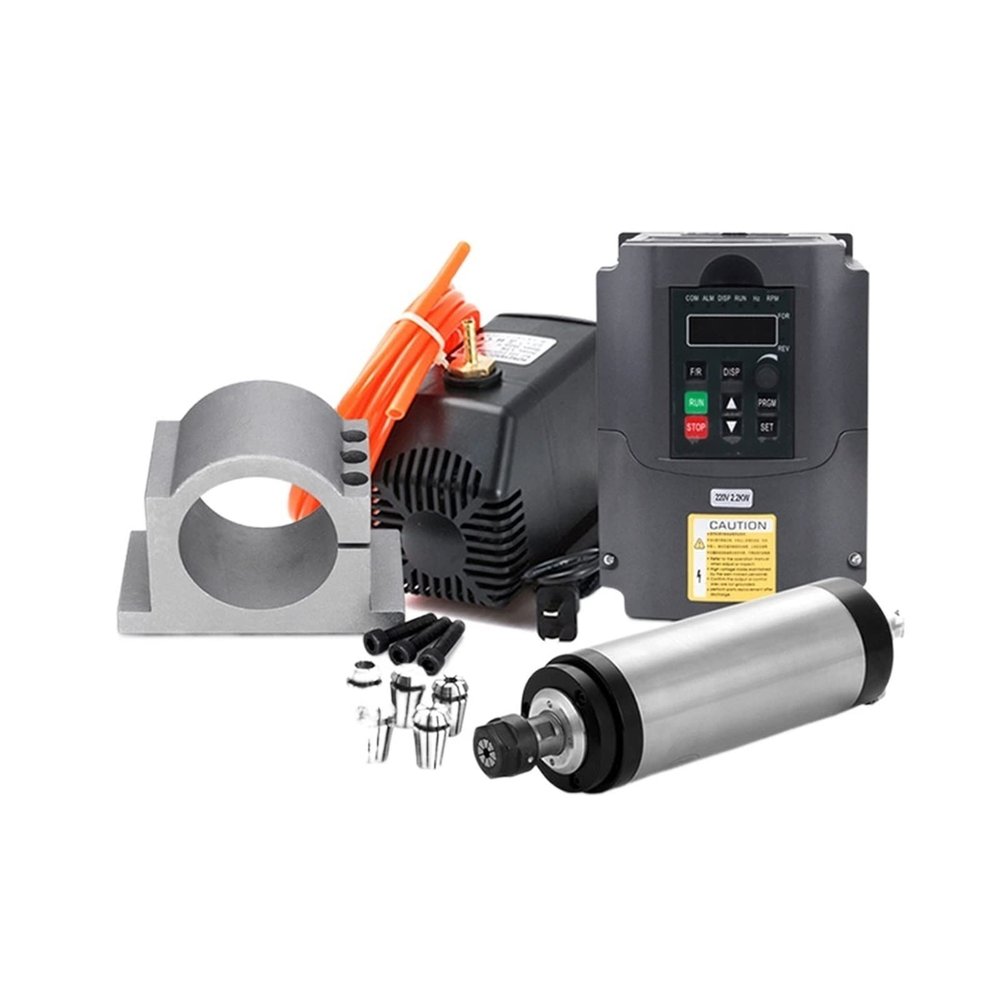

Water-Cooled CNC Spindle Motor Kit, 1.5 kW/2.2 kW, VFD, Clamp, Water Pump and ER Collets

Description

• PID control with advanced closed-loop arithmetic, fast response, and high adaptability
• Simple PLC function with 16-step speed and inverter control
• RS485 communication port with international-standard MODBUS control
• Very strong interference resistance
• Low-speed operation with 150% rated torque at 0.5 Hz
• Carrier adjustable via 16 kHz for a virtually silent working environment
• Wide voltage operating range: normal operation at 304456 V
• Automatic voltage regulation (AVR) technology to support the inverter's load capacity
• Dynamic fast start using synchronized and nonsynchronized control techniques
• Fault protection and short-circuit protection

Package contents: 2.2 kW kit: - 1 2.2 kW water-cooled CNC spindle - 1 2.2 kW VFD - 1 3.5 m water pump - 1 5 m water hose - 1 80 mm spindle clamp - 13 ER20 collets: 1, 2, 3.175, 4, 5, 6, 7, 8, 9, 10, 11, 12, 7, and 13 mm 1.5 kW kit: - 1 1.5 kW CNC water-cooled spindle - 1 1.5 kW VFD - 1 3.5 m water pump - 1 5 m water hose - 1 65 mm spindle clamp - 13 ER11 collets: 1, 2, 3.175, 4, 5, 6, 7, 8, 9, 10, 11, 12, 7, and 13 mm Specifications: 1. CNC spindle motor - Diameter: 65 mm (1.5 kW) / 80 mm (2.2 kW) - Power: 1.5 kW / 2.2 kW - Frequency: 0400 Hz - Speed: 024,000 rpm - Cooling: water-cooled - Collet: ER11 / ER20 - Runout: less than 0.1 mm - Lubrication: grease - Bearings: 4 bearings, C7005X2 and C7002X2 2. Inverter (automatic adjustment) - Frequency: 0400 Hz - Inverter parameters: - PD005 = 400 - PD004 = 400 - PD003 = 400 - Note: If there is no problem, do not change the inverter parameters. 3. Water pump - Flow rate: 3,500 L/h - Power: 80 W - Qmax: 3,500 L/h - Structure: single-stage pump - Pressure: high pressure - Do not operate without water. - Caution: Read the instructions carefully before use. 4. ER20 collet set - Clamping range: 113 mm (1, 2, 3.175, 4, 5, 6, 7, 8, 9, 10, 11, 12, 7, and 13 mm) 5. Water hose - Length: 5 m - Size: 6 mm inner diameter 8 mm outer diameter 6. Spindle motor clamp - The source text ends before the clamp specifications are provided.
