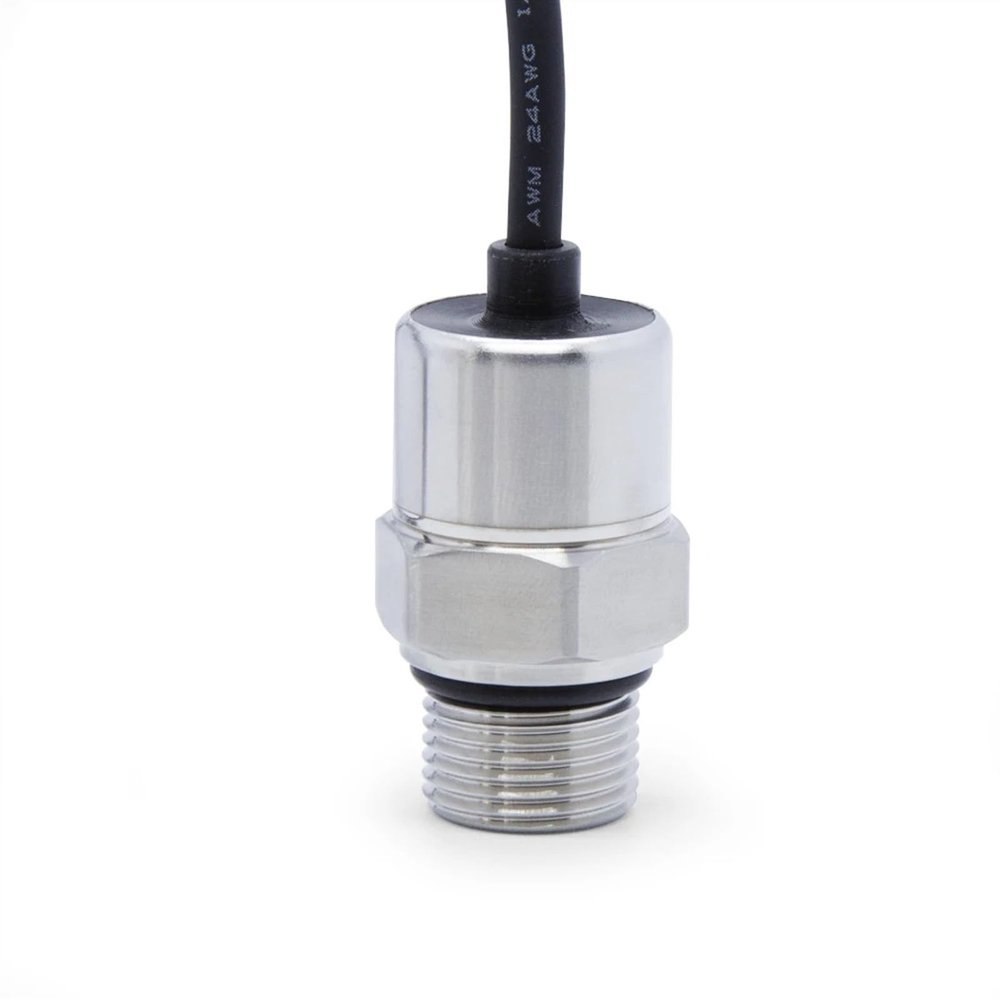

Water, Oil, Fuel, Gas and Air Pressure Sensor, G3/8-19, 5–12 V, 0.5–4.5 V, 0–30 bar, Optional Transducer

Description

• Integrated carbon steel alloy structure
• Compact size, convenient to install and operate
• Complete overvoltage protection
• Suitable for applications involving air, water and oil

Parameters Measuring range: -0.1 to 0 to 30 MPa (optional) Accuracy: 1.0% FS Output signal: Standard 0.54.5 V Supply voltage: 5 or 12 VDC Operating temperature: -40 to 105 C Compensation temperature: -20 to 80 C Operating current: 3 mA Temperature drift (zero point and sensitivity): 0.03% FS/C Long-term stability: 0.2% FS/year Response time: 3 ms Overload pressure: 150% FS Burst pressure: 300% FS Service life: 500,000 cycles Pressure connection: G3/8-19 Electrical connection: Direct cable Housing material: 304 stainless steel Protection rating: IP65 Pressure medium: Non-corrosive liquid or gas
