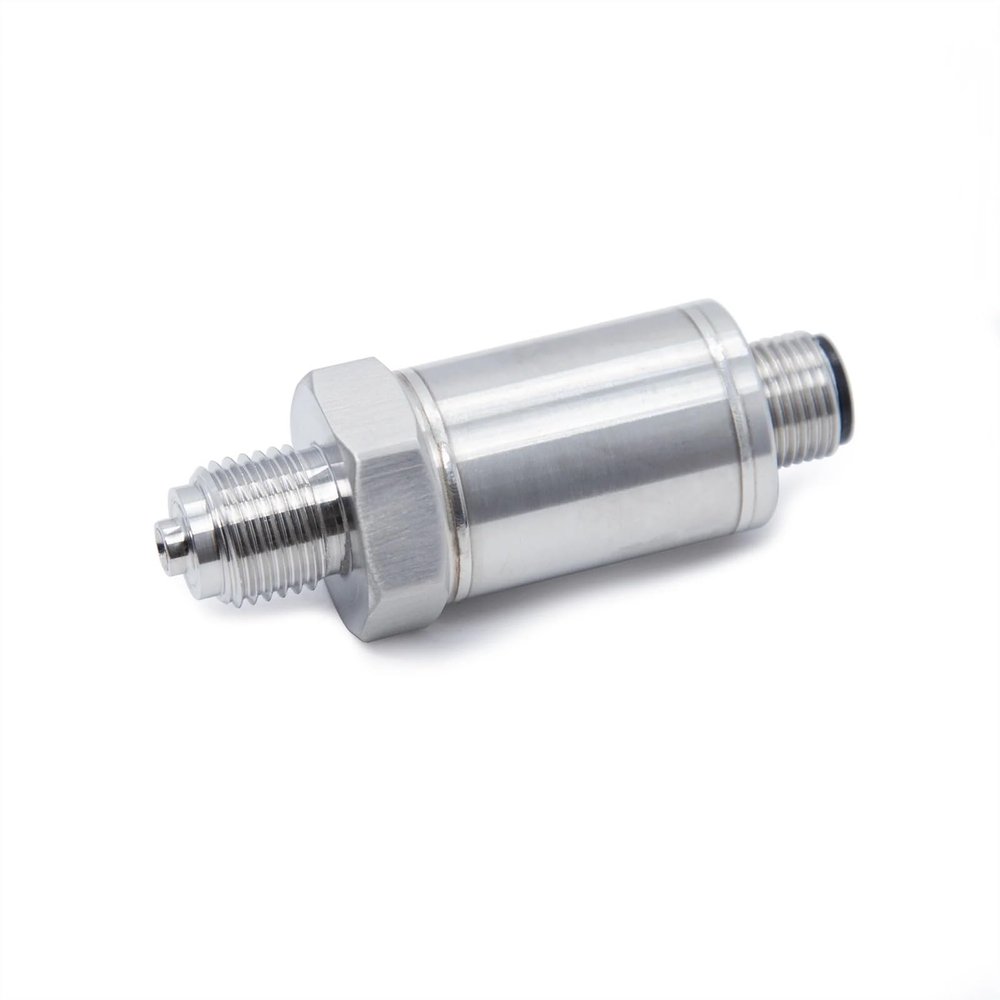

Water, Oil, Fuel, Gas & Air Pressure Transducer, G1/4, 12–36 V, 4–20 mA, M12 4-Pin, SS304, Absolute Pressure Sensor, 0–16 MPa

Description

• Compact and small
• Cost-effective with low power consumption
• Long-term stability and reliability
• Bump design at the lower end of the thread

Parameters Measuring range: -0.1 to 60 MPa (optional) Accuracy: 0.5% FS Output signal: 420 mA Supply voltage: DC 1236 V Operating temperature: -40 to +105 C Compensation temperature: -20 to +80 C Operating current: 3 mA Temperature drift (zero point and sensitivity): 0.03% FS/C Long-term stability: 0.2% FS/year Response time: 3 ms Overload pressure: 150% FS Burst pressure: 300% FS Service life: 500,000 cycles Pressure connection: G1/4 Electrical connection: M12, 4-pin Housing material: SS304 Protection rating: IP67
