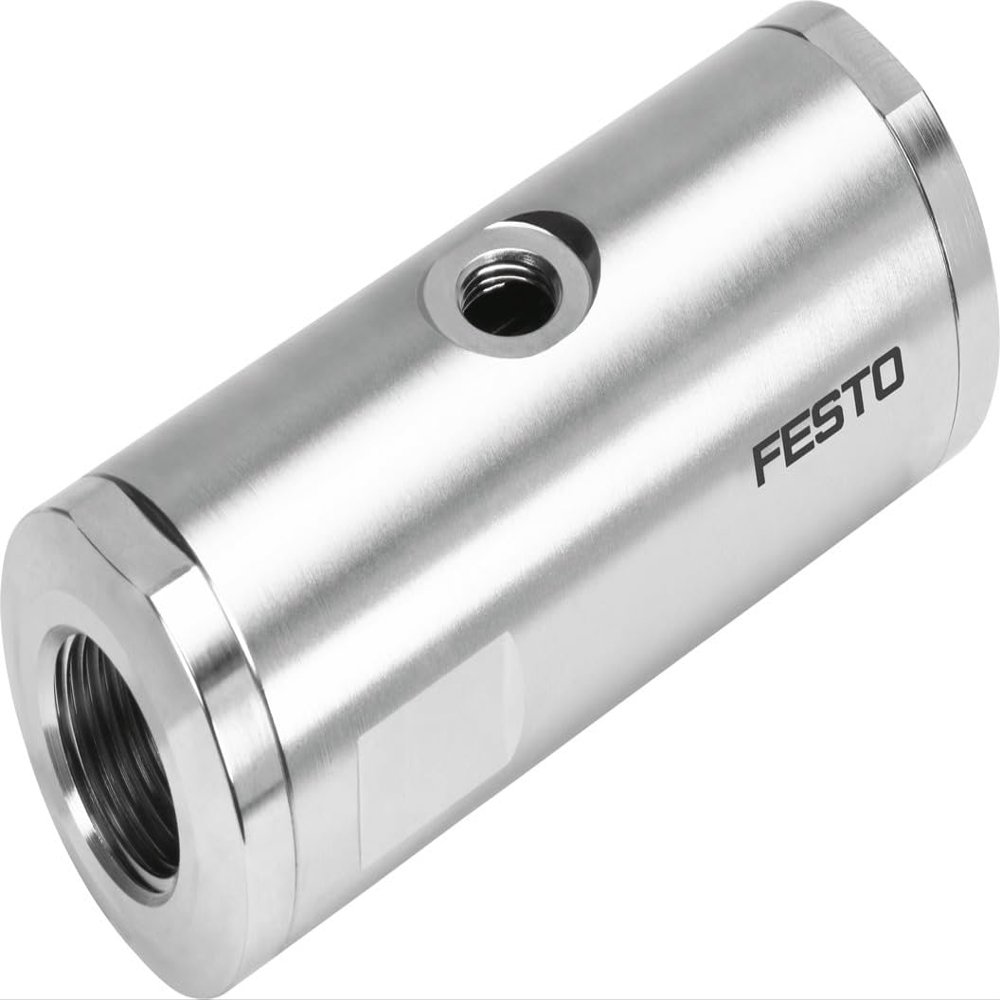

VZQA-C-M22U-6-GG-ALV4N-4 (2931679) Pneumatic Pinch Valve, Soft-Sealing

Description

Construction: pneumatically actuated pinch valve Actuation type: pneumatic Sealing principle: soft Installation position: any Mounting type: inline installation Valve connection: G1/4 Nominal size DN: 6 Valve function: 2/2-way, open, monostable Flow direction: reversible Medium pressure: 0 to 4 bar Operating pressure: 1 to 6.5 bar Nominal valve pressure: 10 Differential pressure: 2.5 bar Burst pressure: 16 bar Overload pressure: 7.8 bar Reset type: rebound elasticity Control type: externally controlled Control auxiliary air connection 12: M5 Control medium: compressed air according to ISO 8573-1:2010 [7:4:4] Medium: compressed air according to ISO 8573-1:2010 [-:-:-] Maximum viscosity: 4,000 mm/s Medium temperature: -5 to 60 C Ambient temperature: -5 to 60 C Storage temperature: 6 to 8 C Flow rate Kv: 0.7 cubic meters Switch-on time: 125 ms Switch-off time: 125 ms Material note: contains LABS-containing substances; RoHS compliant Housing material: wrought aluminum alloy Housing cover material: high-alloy stainless steel Housing cover material number: 1.4435 Seal material: FPM Shut-off element material: NBR Product weight: 105.5 g Shell material: PA6
