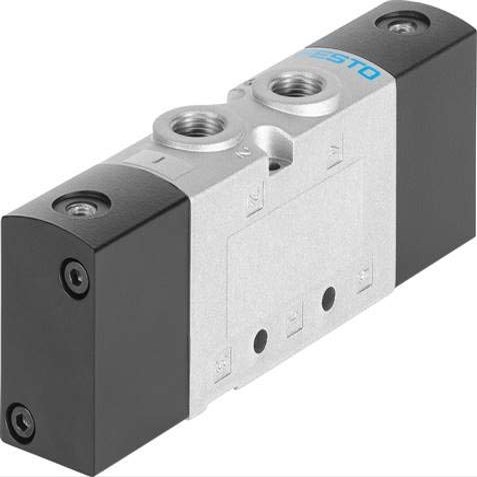

VUWS-L20-M52-E-G18 (575678) 5/2-Way Pneumatic Valve, Monostable

Description

• 5/2-way valve, monostable
• Pneumatic actuation
• Normal nominal flow rate: 700 l/min
• Operating pressure: -0.9 to 10 bar
• Pneumatic spring return
• Port size: G1/8
• Reversible flow direction

Valve function: 5/2-way, monostable Actuation type: pneumatic Valve size: 21.0 mm Normal nominal flow rate: 700 l/min Operating pressure: -0.9 to 10 bar Design: spool valve Return type: pneumatic spring Approval: cULus Recognized (OL) Nominal width: 5.7 mm Exhaust function: adjustable by throttling Sealing principle: soft seal Installation position: any Manual override: none Control type: direct Pilot air supply: external Flow direction: reversible Overlap: positive overlap Pilot pressure: 2.5 to 10 bar Switch-off time: 26 ms Switch-on time: 13 ms Operating medium: compressed air according to ISO 8573-1:2010 [7:4:4] Operating and control medium note: lubricated operation is possible and required for continued operation Vibration resistance: transport test with severity level 2 according to FN 942017-4 and EN 60068-2-6 Shock resistance: shock test with severity level 2 according to FN 942017-5 and EN 60068-2-27 Corrosion resistance class KBK: 2 moderate corrosion stress Medium temperature: -10 to 60 C Control medium: compressed air according to ISO 8573-1:2010 [7:4:4] Ambient temperature: -10 to 60 C Product weight: 190 g Mounting type: with through-hole; optionally on a manifold Exhaust port connection: not captured Pneumatic connection 1: G1/8 Pneumatic connection 2: G1/8 Pneumatic connection 3: G1/8 Pneumatic connection 4: G1/8 Pneumatic connection 5: G1/8 Material note: RoHS compliant Seal material: HNBR/NBR Housing material: painted die-cast aluminum Spool material: wrought aluminum alloy Screw material: galvanized steel
