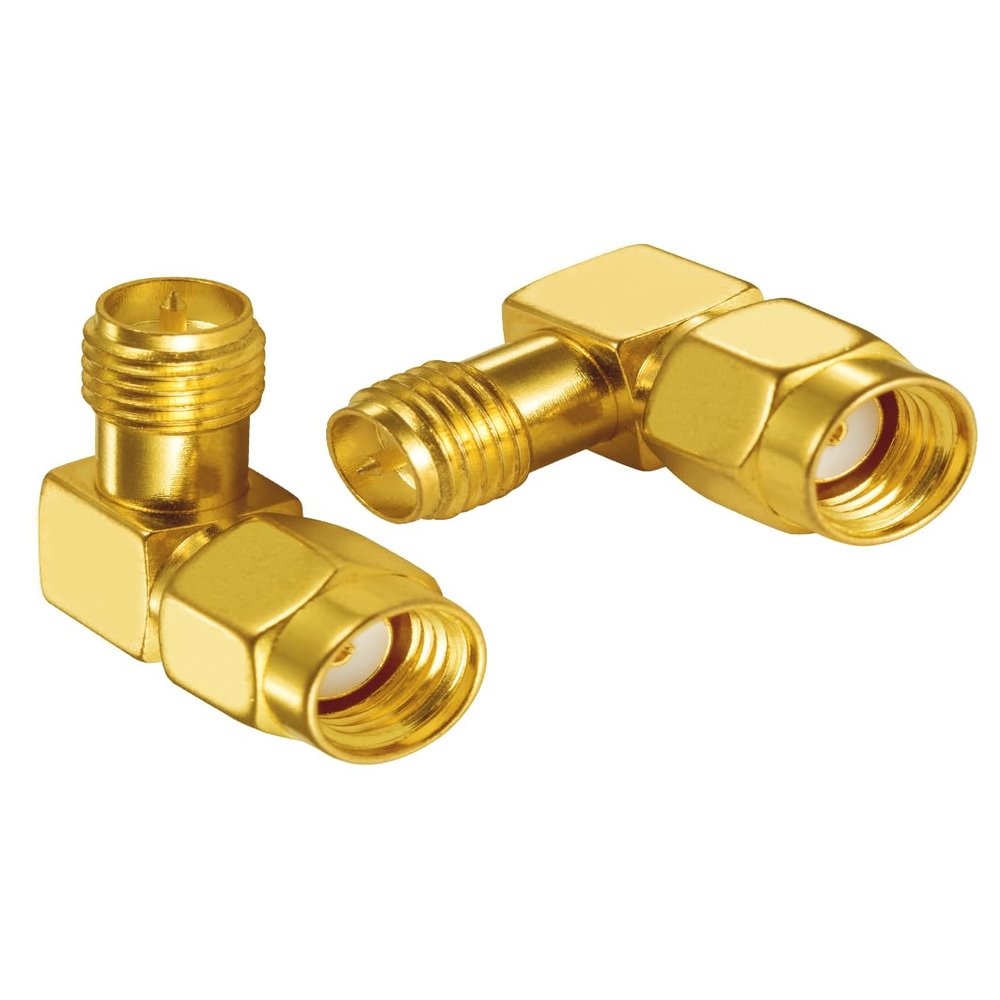

Vecys 90° RP-SMA WiFi Antenna Adapter, Plug to Jack, Gold-Plated, 2-Pack

Description

• Right-angle 90 RF coaxial RP-SMA adapter
• Connection 1: RP-SMA plug; connection 2: RP-SMA jack with pin
• Impedance: 50
• Gold-plated body
• Material: copper
• For antennas, WiFi devices, coaxial cables, external WiFi antennas, WLAN PCI cards, Bluetooth, and GSM antennas
• Supports PCI/PCE wireless access points, routers, UMTS mobile WiFi cards, WLAN ISM, Bluetooth, 4G LTE, GSM, WLAN, Bluetooth, HSDPA, UMTS, and DCS antenna connections
• Package includes 2 right-angle RP-SMA plug-to-jack adapters

Product specifications: Temperature range: -65 to +165 C; PE cable: -40 to +85 C. Vibration: MIL-STD-202, Method 213. Impedance: 50 . Frequency range: DC to 12.4 GHz. Operating voltage: 335 V maximum. Insulation resistance: 5,000 M. Insertion loss: 0.15 dB at 6 GHz. VSWR: 1.20. Style: right angle. Mounting type: screw mount. Material: copper. Body plating: gold-plated.
