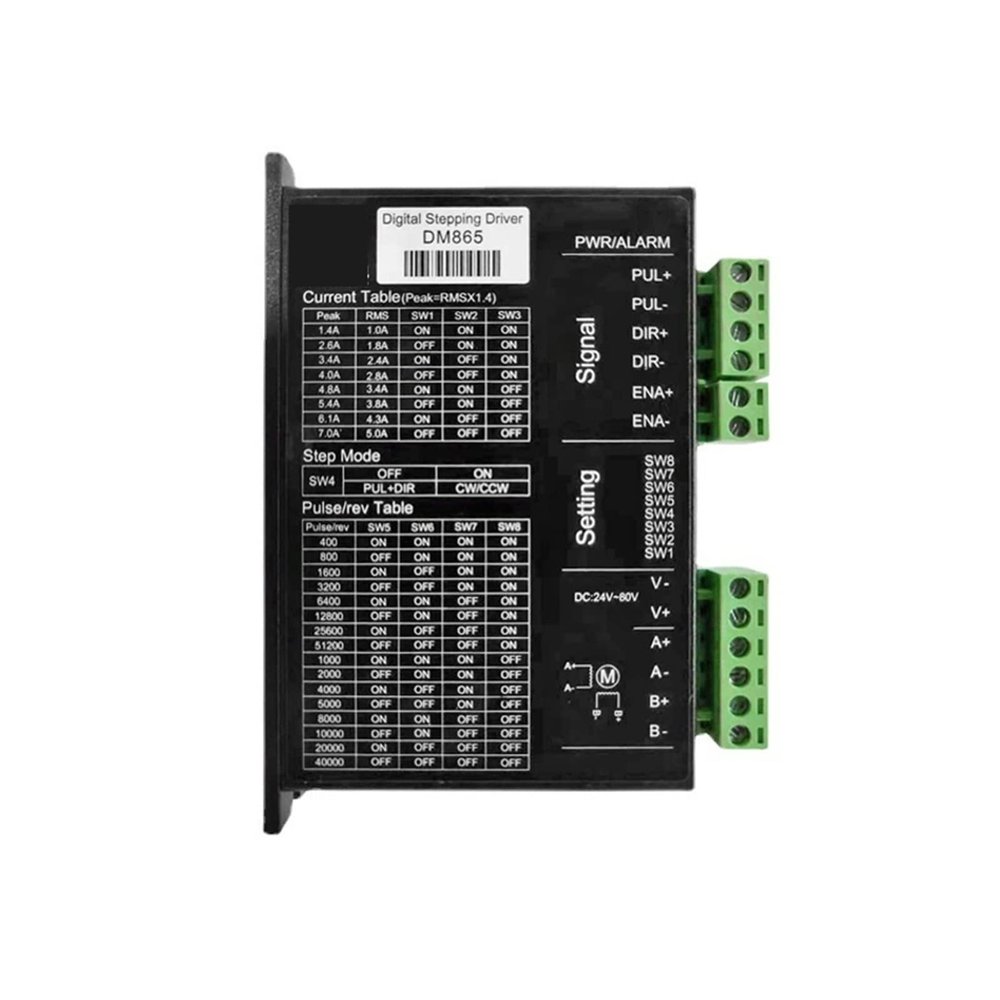

VChics DM865 Stepper Motor Driver for 57/60/86 Two-Phase Motors, Up to DC90V

Description

• 32-bit DSP technology with automatic parameter tuning to significantly reduce noise and vibration
• DSP chip control provides lower noise and faster response
• Set the driver current and microstepping according to the adjustment tables printed on the driver
• Multiple protection functions, including overvoltage, overcurrent, and overheating protection
• Designed for stepper motor, servo, and motion control applications

PI control algorithm with low noise, low vibration, and low heat generation. Signal inputs: single-ended, pulse + direction, and dual pulse. Built-in microstepping; power supply up to DC36V. Current adjustment is convenient, with 16 settings available; peak output current can reach 2.2 A, and the current is halved after a 1-second pause. The factory-set maximum microstepping is 128; up to 25,600 settings are adjustable. Optically isolated differential signal input with a maximum input pulse frequency of 300 kHz. Includes overvoltage protection, undervoltage alarm, phase-current overcurrent protection, motor phase open-circuit detection, and other functions. The pulse, direction, and enable terminals all feature constant-current inputs and can be connected directly to the input signal without adding an external series-voltage step-down current-limiting protection circuit. Model: DM865. Rated voltage: 20. Speed response frequency: 300. Compatible motors: 57, 60, and 86. Unit weight: 0.25 kg.
