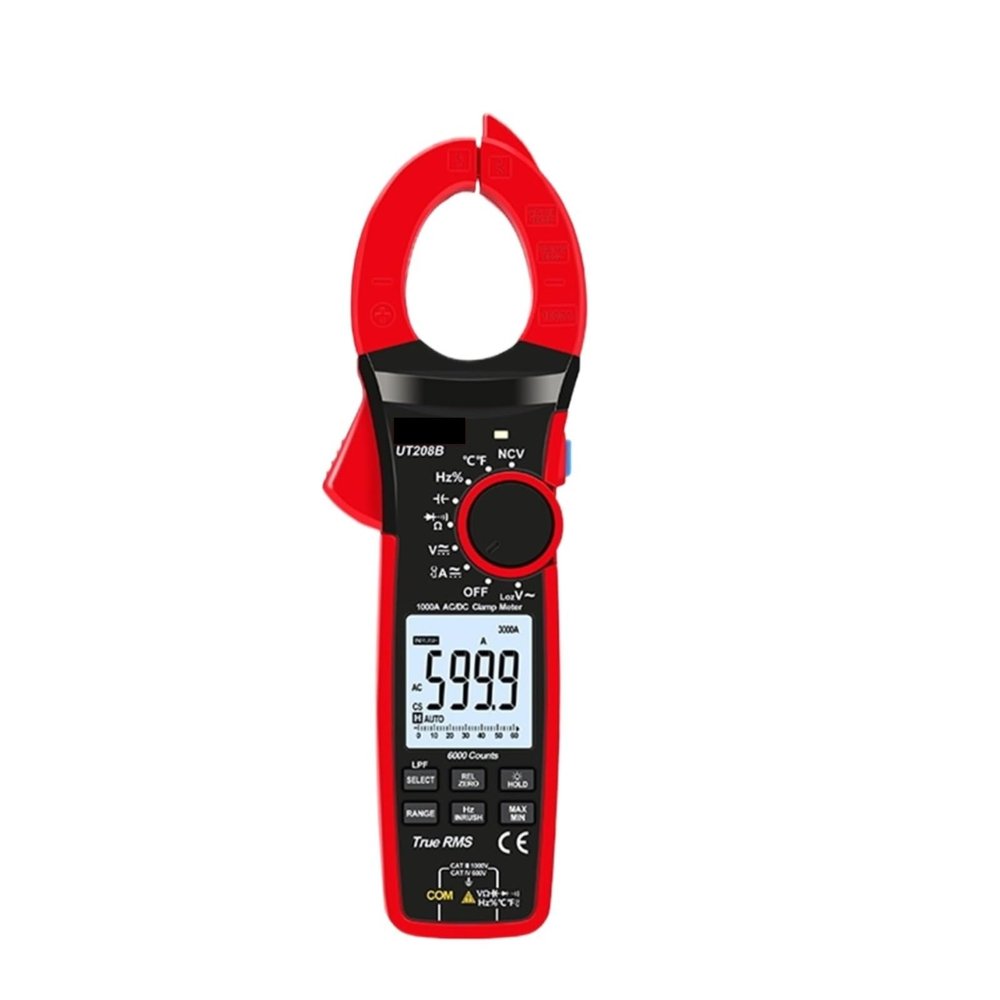

UT208B True RMS Digital Clamp Meter, 1000 A AC/DC, 1000 V

Description

• Large LCD, True RMS, and motor-symbol indicator
• 6,000-count display for detailed measurements
• Measures AC/DC current up to 1,000 A and voltage up to 1,000 V
• Measures resistance, capacitance, frequency, duty cycle, and temperature
• CAT III 1,000 V/CAT IV 600 V safety ratings
• NCV detection with audible and visual alerts
• Inrush current, LPF ACV, and LoZ ACV functions
• Optional UT-CS09D flexible current clamp supports AC current up to 3,000 A
• 42 mm jaw opening and 31-segment analog bar
• Flashlight, backlight, data hold, MAX/MIN, relative mode, diode, and continuity test
• Requires three 1.5 V R03 batteries; batteries are not included

The UT200 Series consists of 6,000-count digital clamp meters with auto-ranging, a large LCD, True RMS measurement, automatic range storage, and NCV detection. The meters have CAT III 1,000 V and CAT IV 600 V safety ratings and are CE/ETL certified. The UT206B, UT207B, and UT208B include LoZ ACV for eliminating ghost voltages, LPF ACV for measuring inverter and VFD voltage, inrush-current measurement, and transient-current capture. The UT206B and UT208B also provide high-precision temperature measurement with 0.1 C resolution and support the optional UT-CS09D flexible current clamp, extending the AC current range to 3,000 A. The UT208B measures AC/DC current up to 1,000 A and AC/DC voltage up to 1,000 V, with resistance measurement up to 60 M and capacitance measurement up to 60 mF. It has a red-and-gray housing, measures 272 81 43.5 mm, and has a 42 mm jaw opening. The package includes test leads, a carrying case, and an English manual. A point-contact temperature probe is specified for the UT206B/UT208B. Batteries are not included.
