Universal Suspension Set for Higher Loads

Description

• For higher loads: Ideal for heavier objects such as large lights, signs, and decorations
• Includes wire rope gripper and screw cap for stable, durable fastening
• 1.8 mm wire rope, 3,000 mm length for extended reach and flexibility
• Easy installation for quick, trouble-free assembly
• High load capacity for durable and reliable heavy-duty applications

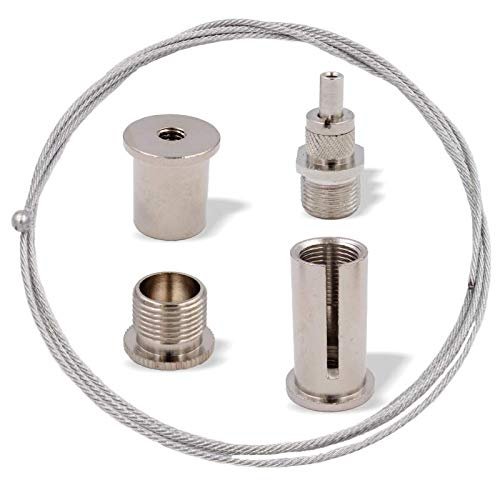

Universal suspension set for higher loads, consisting of a ceiling mount, wire rope, and wire rope gripper. Details Color: Silver Ceiling mount item number: 96-M131-01-0102 Wire rope gripper item number: 01-A20-01-0102 Ceiling fastener item number: 03-M131-02-0102 Wire rope item number: 02-18-03000-K2OT-05 Length: 3,000 mm Wire rope: 1.5 mm Side cable outlet: Yes Maximum working load: See below Installation The ceiling mount is secured at the suspension point via the internal thread on the top. It can be installed either with a wall plug and screw or by screwing it into an M6 threaded stud. The ceiling or support must be suitable for this purpose and capable of supporting the load. Insert the wire rope into the ceiling mount and attach the wire rope gripper to the wire rope. Screw the gripper into the slotted ceiling fastener. Working load The specified values apply only when used with our wire ropes and when properly installed. The breaking load of the rope is five times higher than the working load. 0.8 mm: 7 kg 1.0 mm: 9 kg 1.2 mm: 12 kg 1.5 mm: 20 kg 1.8 mm: 25 kg 2.0 mm: 30 kg 3.0 mm: 50 kg Applications Signmaking, lighting, acoustics, trade show construction, retail fixture construction, and model building.
