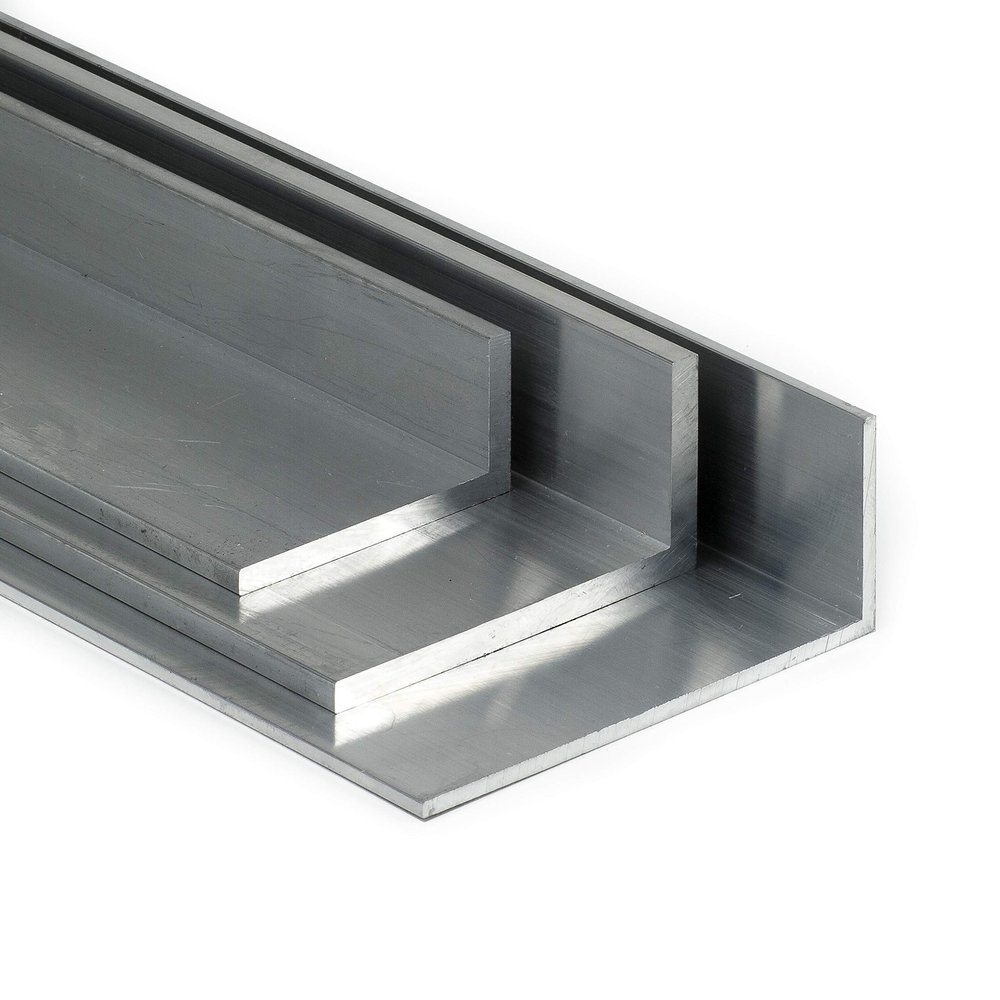

Unequal-Leg Aluminum Angle AlMgSi0.5, 40 × 20 × 4 mm, 1200 mm Long

Description

• Dimensions (W H T): 40 mm 20 mm 4 mm
• Length: 1200 mm (120 cm)
• Unequal-leg aluminum angle in alloy AlMgSi0.5 / AW-6060
• Available in additional sizes and lengths from 25 mm to 2000 mm
• Custom cut to the selected length
• Suitable for milling, drilling, and sawing with cooling
• Surface: mill finish / untreated; may show storage marks
• Rough-sawn length; cut faces and edges are untreated
• Length tolerance: approximately +0.0 to 2 mm
• Width and thickness tolerance according to EN 755 et seq.: approximately 2%, depending on batch
• Angle accuracy: approximately 2; DIN EN 755-9
• Density: 2.75 kg/dm
• Brinell hardness: HB 7080
• Electrical conductivity: 2835 m/( mm)
• Thermal conductivity: approximately 1.86 W/(cmC)
• Weldable using MIG/TIG with filler metal

Material: aluminum. Alloy: AlMgSi0.5 / DIN 3.3206 / EN AW-6060 / T66 extruded / F22. Select from various widths, heights, wall thicknesses, and lengths. Available widths: 15 mm, 20 mm, 30 mm, 40 mm, 50 mm, and 80 mm. Available heights: 40 mm, 50 mm, 60 mm, 80 mm, 100 mm, and 130 mm. Available wall thicknesses: 4 mm, 5 mm, 6 mm, and 10 mm. Available lengths range from 25 mm to 2000 mm. The item is individually cut to the selected length; select the desired length from the list. The surface is untreated and mill finish and may show storage marks. Cut faces and edges are untreated, and the length is rough sawn. Suitable for milling, drilling, and sawing with cooling. Material properties: tensile strength Rm 215260 N/mm; yield strength Rp0.2 160230 N/mm; warm-aged. Suitable for anodizing: very good. Hard chrome plating: good. Chrome-nickel plating: good. Powder coating: very good. Chip formation: spiral. The product image is for illustration and may show a similar item.
