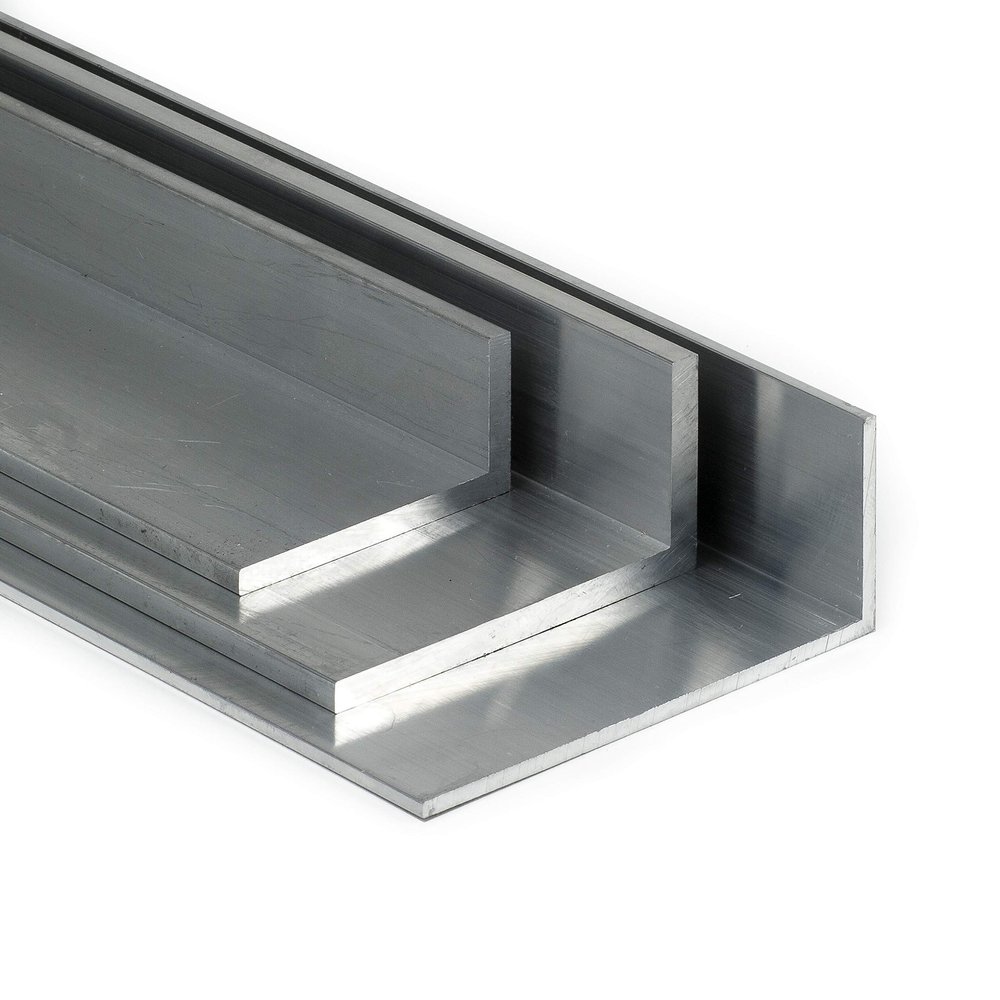

Unequal-Leg Aluminum Angle AlMgSi0.5, 20 x 10 x 2 mm, 1,400 mm Long

Description

• Dimensions (W x H x T): 20 mm x 10 mm x 2 mm; length: 1,400 mm
• Unequal-leg aluminum angle, alloy AlMgSi0.5 / EN AW-6060
• Available in various widths, heights, thicknesses, and lengths from 25 to 2,000 mm
• Individually cut to the selected length
• Suitable for milling, drilling, and sawing with cooling
• Raw, unfinished surface; may show storage marks
• Raw-sawn length with unfinished cut surfaces and edges
• Length tolerance: approximately +0 to 2 mm
• Width, height, and thickness tolerance: approximately 2% according to EN 755, depending on batch
• Angle accuracy: approximately 2 according to DIN EN 755-9
• Density: 2.75 kg/dm; Brinell hardness: HB 7080
• Electrical conductivity: 2835 m/(mm); thermal conductivity: approximately 1.86 W/(cmC)
• MIG/TIG weldable with filler metal
• Tensile strength: Rm 215260 N/mm; yield strength: Rp0.2 160230 N/mm
• Suitable for anodizing, hard chrome plating, chrome-nickel plating, and powder coating

Aluminum angle made from AlMgSi0.5 / DIN 3.3206 / EN AW-6060, T66 pressed / F22. Select from various widths of 10, 15, or 20 mm; heights of 20, 25, 30, 35, 50, or 60 mm; thicknesses of 1.5 or 2 mm; and lengths from 25 to 2,000 mm. The item is individually cut to the selected length. Please choose your desired dimensions and length from the available options. The surface is raw and unfinished and may show storage marks. Cut surfaces and edges are unfinished, and the length is raw-sawn. Milling, drilling, and sawing are possible with cooling. The material is heat-treated, has a spiral chip form, and is very well suited for anodizing and powder coating. Chrome plating and chrome-nickel plating are rated good. The product image is for illustration and may differ from the actual item.
