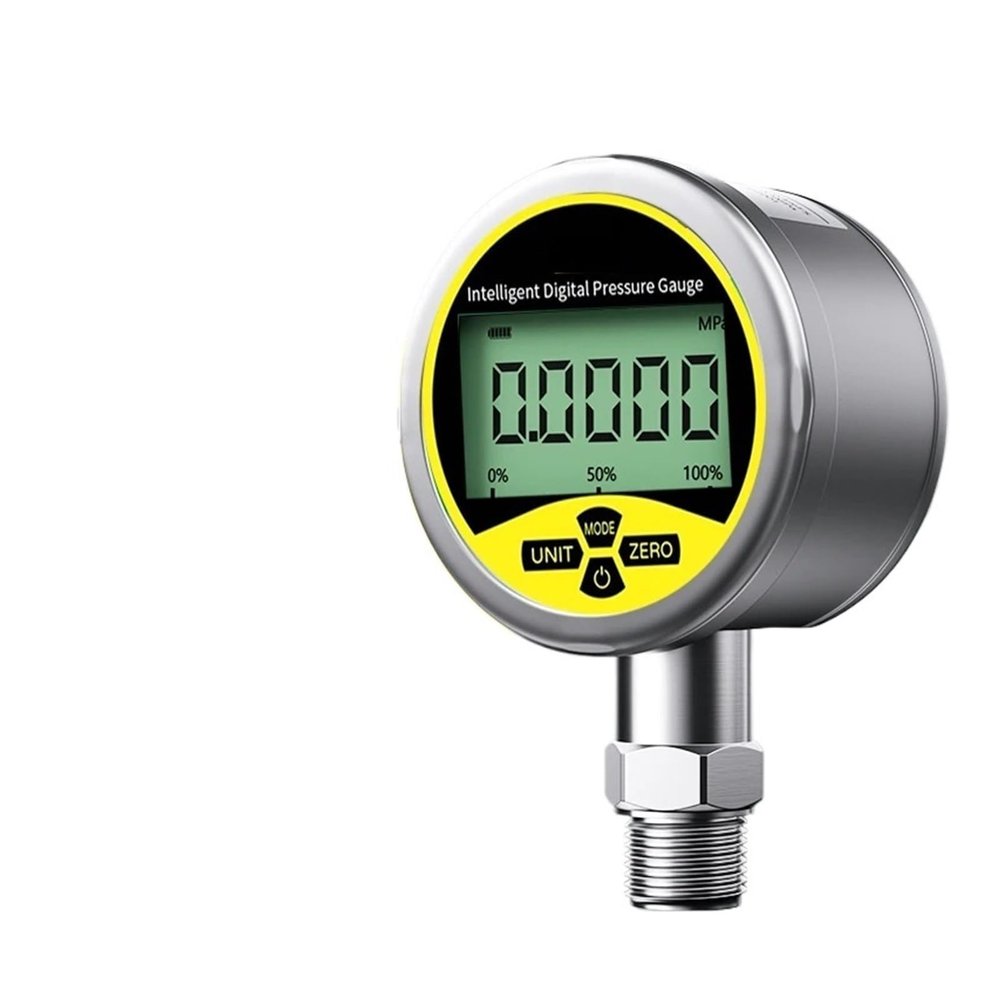

Ultrasonic Transducer / Digital Pressure Gauge, -0.1–60 MPa, 80 mm, M20 × 1.5, SS304

Description

• Extended battery life: Up to 12 months with two AAA batteries, low-power design, and automatic shutoff.
• High-precision measurement: 0.2% FS accuracy and 0.1%/year long-term stability.
• Stainless steel construction: 304 stainless steel resists vibration and corrosion; IP54 protection with optional IP65 upgrade.
• Versatile pressure range: Supports -0.1 to 60 MPa, including negative-pressure and high-pressure configurations.

Parameters and specifications Range: -0.1100 MPa; supports negative-pressure, conventional-pressure, and high-pressure configurations, such as 010 kPa and 060 MPa. Accuracy: 0.2% FS; 0.4% optional for some ranges. Display: 0.56-inch LED or 80 mm LCD large screen with white backlight. Connection thread: M20 1.5; supports customized options such as G1/4 and NPT1/4. Power supply: 3 V battery power using two AAA batteries, or 24 VDC external power supply. Media compatibility: Water, oil, gas, and other non-corrosive media compatible with stainless steel. Operating temperature: -20 to 70C; special configurations can extend the range to -40 to 150C. Protection rating: IP50 standard; IP54 with protective cover. Applications Industrial equipment: Hydraulic systems, air compressors, and pressure monitoring for technical machinery. Energy and environmental protection: Water treatment, heating networks, and oil and gas transmission pressure measurement. Laboratory and medical: Calibration of precision instruments and pressure control for medical equipment. Explosion-protected applications: Hazardous environments such as chemical and petroleum facilities; explosion-protected models are required. Product description Professional design: Fully electronic structure, imported piezoresistive sensor, and 24-bit A/D conversion for accurate and stable data. The 304 stainless steel housing is impact-resistant and suitable for demanding industrial environments. Smart functions: One-button zeroing, quick switching between pressure units, and a low-voltage alarm to help prevent measurement deviations caused by insufficient power. Customization: Supports customization of the range, connection thread, display unit, explosion-protection level, and other specifications. Package contents: 1 digital pressure gauge, 1 manual, 1 certificate, and AAA batteries.
