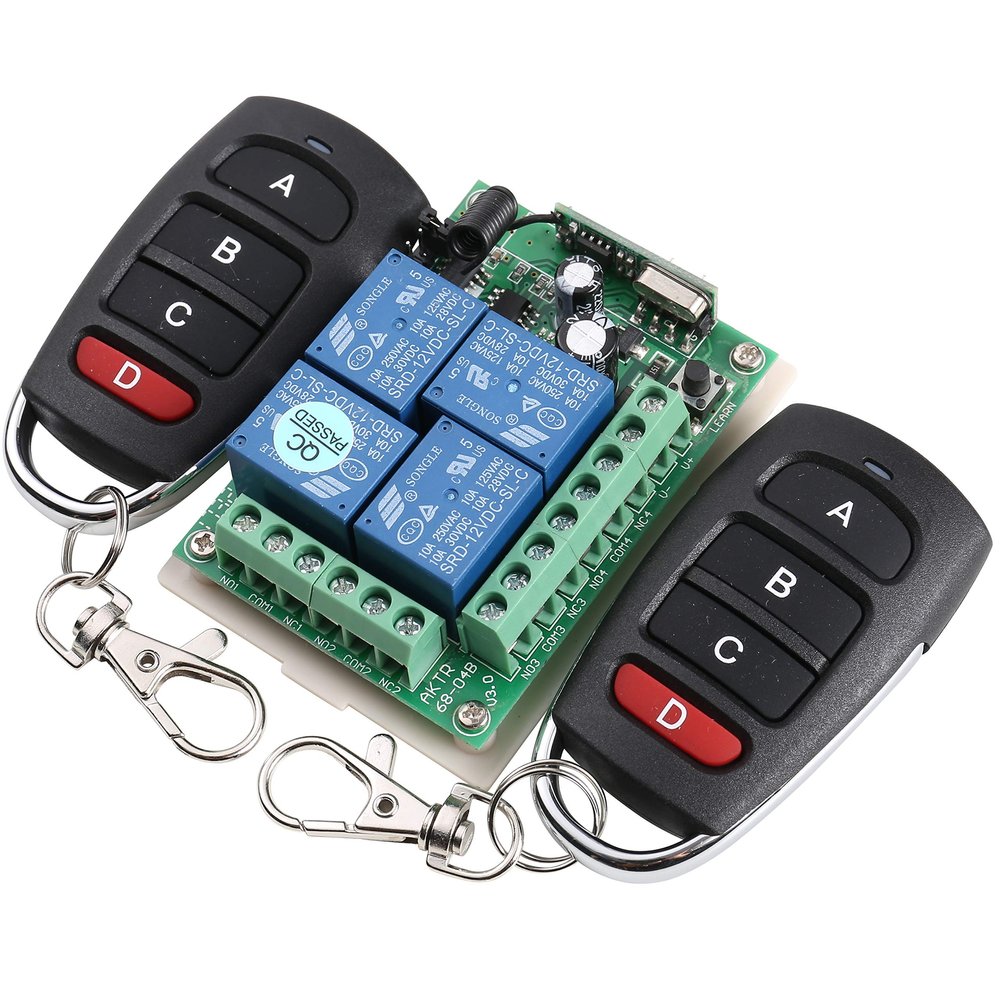

UHPPOTE Wireless 12V DC 4-Channel Remote Control Receiver with 2 Transmitters, 433 MHz

Description

• Operating frequency: 433 MHz
• Compact size, stable performance, and high receiving sensitivity
• Compatible with 2262, 2260, 1572, 2240, and similar chips
• Wireless RF signal can pass through walls, floors, and doors
• Operating modes: jog, self-locking, and interlocking
• Operating voltage: 12V DC
• Output current: 10A
• Suitable for alarm systems, remote-controlled doors and windows, signal control, industrial control, and lifting equipment

Compact wireless 4-channel receiver with stable performance and high receiving sensitivity. It is compatible with most remote controls using 2262, 2260, 1572, 2240, and similar chips. The wireless RF signal can pass through walls, floors, and doors, allowing the receiver to be controlled from a reliable distance. Suitable for electrical control equipment such as theft alarms, remote-controlled electric doors and windows, signal control systems, industrial controls, and lifting equipment. Specifications: intelligent learning encoding; 4 channels; jog, self-locking, and interlocking operating modes; 12V DC operating voltage; 6 mA static operating current; operating temperature from -40C to +80C; receiving sensitivity: -105 dBm; 433 MHz operating frequency; 10A output current; 4 transmitter buttons; black transmitters. Receiver board dimensions: 68 x 48 x 16 mm. Dimensions including housing: 72 x 53 x 26 mm. To pair a transmitter and receiver, connect the power, press the receiver's learning button for one second until the receiver indicator turns on, then immediately press the desired remote-control button. The indicator will flash several times and turn off automatically, completing the pairing process. To clear codes, connect the power and press the receiver's learning button for approximately 8 seconds until the LED flashes continuously, then release the button. The receiver can learn fixed codes (such as PT2262 and SC2260) and learning codes (such as EV1527 and HS2240), with a total capacity of 20 codes. If the number of codes exceeds 20, the receiver successively deletes the earliest learned code. Clear the codes before learning new codes when changing the operating mode. Package includes 1 receiver, 2 transmitters, and 1 instruction manual in English.
