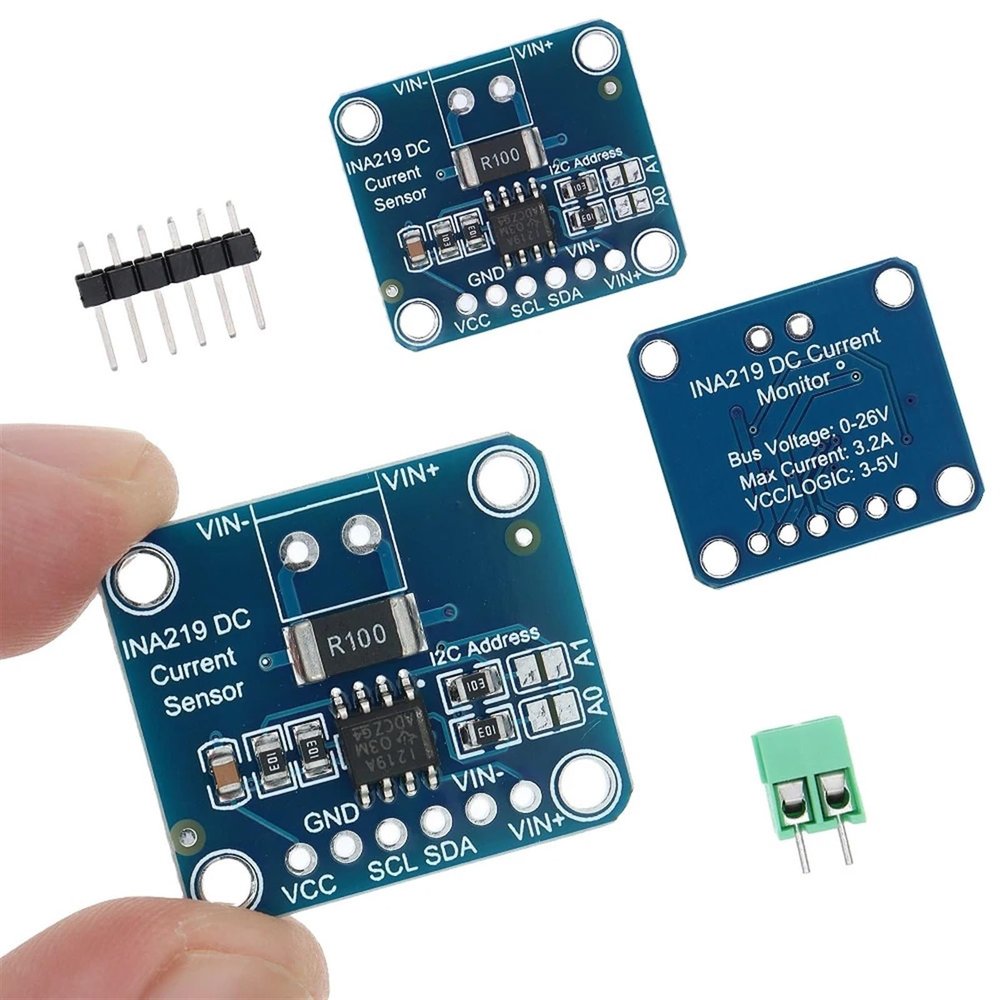

UGGOVXWZH 7-Piece INA219 Bidirectional DC Current Sensor Breakout Module, 3V–5V I2C

Description

• Low-voltage transformers
• Uses the INA219B chip
• 0.1 ohm, 1%, 2 W current-sense resistor
• Target voltage up to 26 V
• Measures up to 3.2 A with 0.8 mA resolution
• 0.9 in 0.8 in circuit board
• I2C 7-bit addresses: 0x40, 0x41, 0x44, and 0x45
• Addresses selectable with jumpers

Low-voltage transformers. The 7-piece INA219 bidirectional DC current power supply sensor breakout module is designed for DIY projects and supports 3V5V IIC/I2C power monitoring. TECHNICAL DETAILS: Uses the INA219B chip; see the datasheet for detailed specifications. Includes a 0.1 ohm, 1%, 2 W current-sense resistor. Supports target voltages up to 26 V and current measurements up to 3.2 A with 0.8 mA resolution. The circuit board measures 0.9 in 0.8 in. This board/chip uses I2C 7-bit addresses 0x40, 0x41, 0x44, and 0x45, selectable with jumpers.
