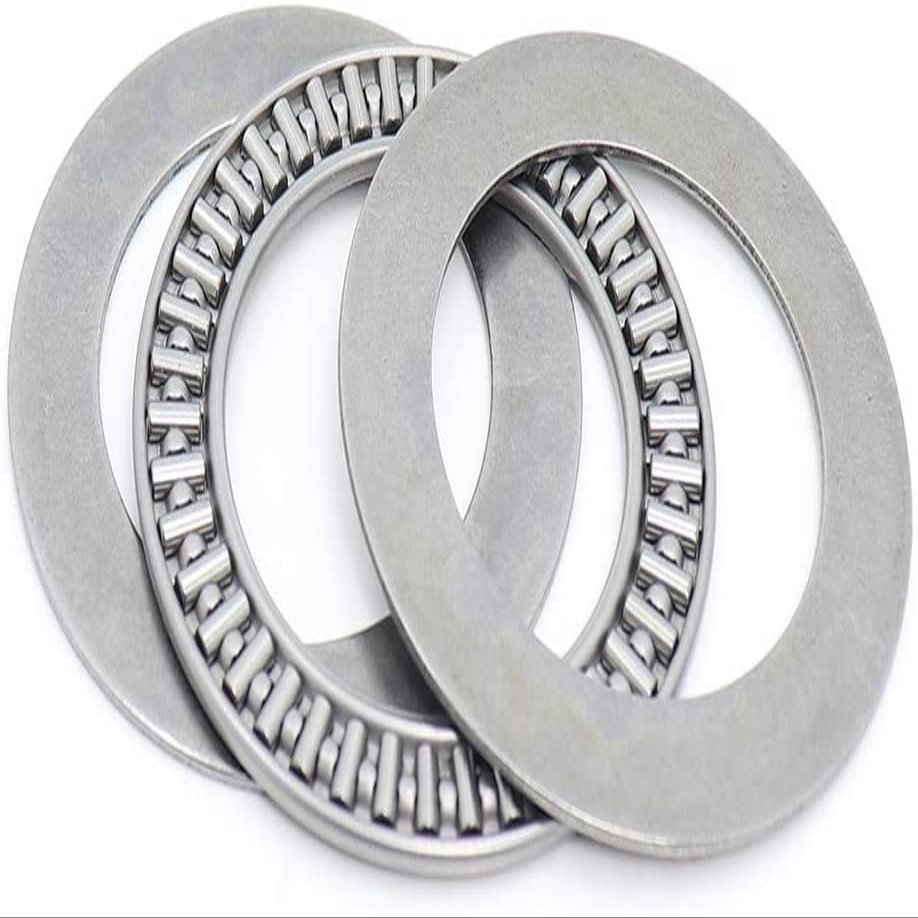

TMP1105 AXK3047 + 2AS Thrust Needle Roller Bearing AXK Series with 2 AS3047 Washers AXK1106 889106 NTB3047 Bearings 30x47x4 mm

Description

• Bearing

Bearing Structure and Introduction Thrust Needle Roller and Cage Assemblies Overview: Thrust needle roller and cage assemblies consist of small-diameter needle rollers arranged in a spoke-like configuration. The needle rollers are equally spaced by a cage; its web section separates the rollers and provides guidance to keep them tracking in an orbital path. The purpose of these assemblies is to transmit a thrust load between two relatively rotating objects while greatly reducing friction. Thrust needle roller and cage assemblies can also be unitized with lipped washers to serve as raceway surfaces for the needle rollers. Washers can be supplied separately or mechanically unitized with the thrust needle roller and cage assemblies for ease of handling. Catalog range: 5 mm240 mm (0.1969 in9.4488 in). Markets: automotive automatic and manual transmissions; automotive accessories, such as compressors and steering gears; agricultural and construction equipment. Features: one-way foolproof assembly features, anti-rotation locking features, and lubrication-flow enhancements. Benefits: High-speed performance and application flexibility. LOAD RATINGS MINIMUM AXIAL LOAD Slippage can occur if the applied axial load is too light and the operating speed of the thrust needle roller and cage assembly is high, particularly if accompanied by inadequate lubrication. For satisfactory operation, a certain minimum load must be applied to a thrust needle roller and cage assembly, which can be calculated as follows: Fa min = C0a/2200 [kN] Where: C0a = static load rating [kN]; Fa min = minimum axial load [kN] LUBRICATION Oil is the preferred lubricant for thrust needle roller and cage assemblies, and an ample oil flow is absolutely necessary for high speeds or for moderate speeds when the load is relatively high. SPECIAL DESIGNS Thrust needle roller and cage assemblies and thru
