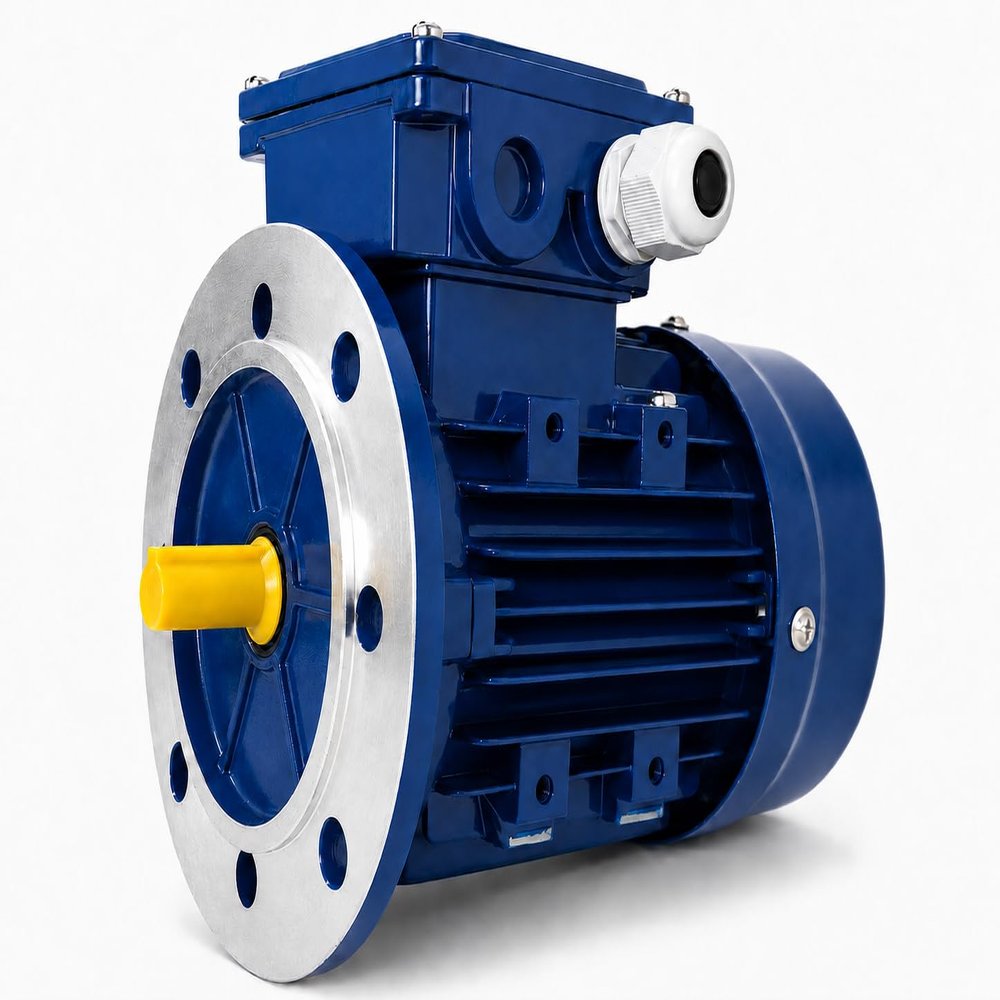

Three-Phase Motor 0.18 kW 1,400 rpm 230/400 V, IMB5 63-Frame Asynchronous Motor, IP55, 4-Pole, 11 mm Shaft

Description

• Powerful 0.18 kW three-phase motor with approximately 1,400 rpm and 230/400 V voltage.
• IMB5 (B5) flange mounting for stable installation in machines and industrial applications.
• Copper winding and aluminum housing for reliable power transmission, low weight, heat dissipation, and corrosion resistance.
• Designed for intermittent S4-80% operation and frequent start-stop cycles.
• Frequency-converter compatible for precise speed control.
• Manufactured according to IEC, DIN, ISO, VDE, and EN standards.
• IP55 protection rating against dust and water jets.
• Rated power: 0.18 kW; rated speed at 50 Hz: approximately 1,400 rpm.
• Supply voltage: 230/400 V; 4 poles; shaft diameter: 11 mm; weight: 4.2 kg.
• Efficiency: 64.2%; power factor: 0.64; torque: 1.26 Nm; locked-rotor current: 1.1 A / 0.63 A.

Three-phase electric motor for versatile use in industry, production, workshops, and mechanical engineering. This motor is suitable as an industrial motor for general drive applications and various machine systems. The motor is designed for intermittent S4-80% operation and is suitable for applications with frequent start-stop cycles. The aluminum housing provides low weight, heat dissipation, and corrosion resistance, while the copper winding supports stable performance and long service life. With an IP55 protection rating, the motor is protected against dust and water jets and is suitable for industrial working environments. Depending on the selected version, the motor is available with IMB3, IMB14, or IMB5 mounting and can be integrated into different machines and systems. The motor is compatible with a frequency converter for speed adjustment. It is manufactured according to IEC, DIN, ISO, VDE, and EN standards. Technical parameters: B5 flange mounting, frame size 63, rated power 0.18 kW, 230/400 V supply voltage, 4 poles, 11 mm shaft diameter, 4.2 kg weight, 64.2% efficiency, 0.64 power factor, and 1.26 Nm torque.
