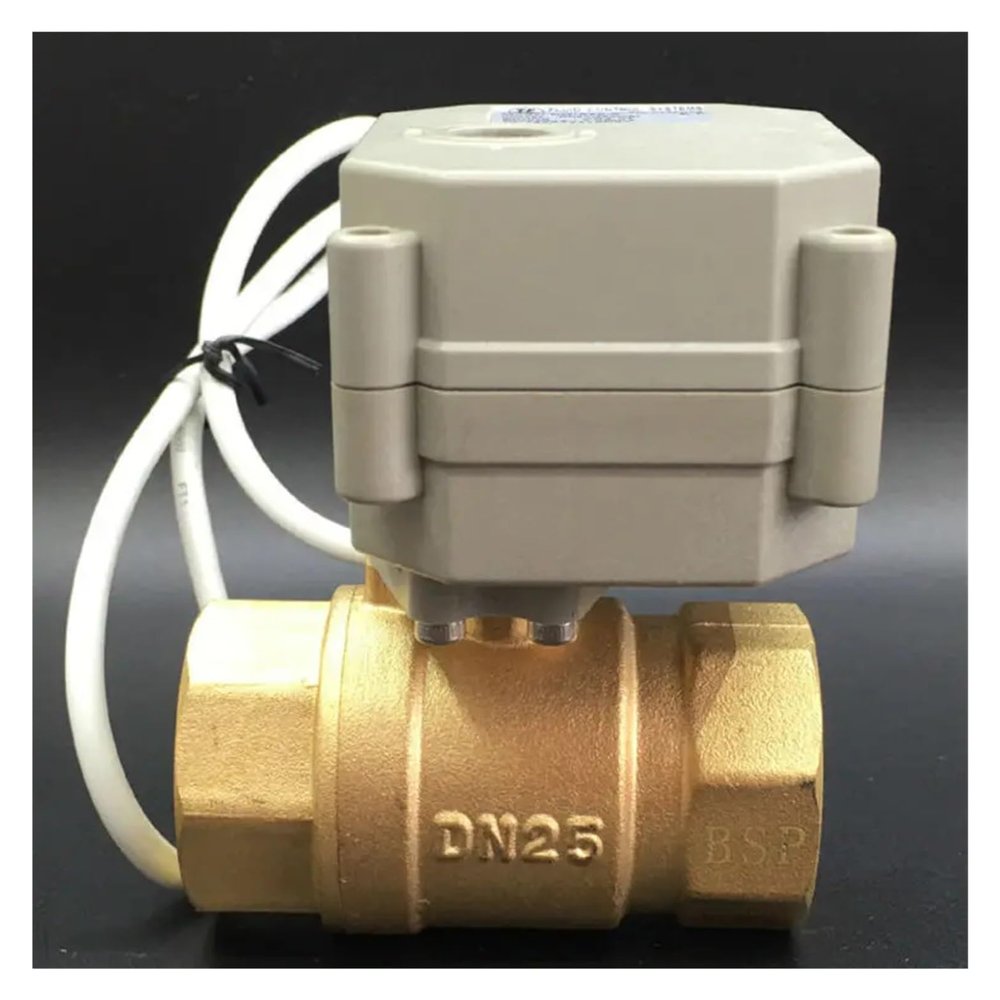

TFM25-B2-C Motorized 2-Way Brass Valve, 1 in. (DN25), DC 9–24V

Description

• Safety: The internal limit switch can automatically cut power when fully open or fully closed.
• Installation: Can be installed at any angle or in any direction; suitable for wet conditions.
• Material: Lead-free and suitable for drinking water and food.
• Performance: Reliable operation, no leakage, and low noise.
• Environmental protection: Energy-saving and environmentally friendly.
• Control signals: 05V, 010V, or 420mA.
• Control: 5-wire control with position-feedback signal.
• Protection rating: IP67.

Proportional valve controller for 05V, 010V, or 420mA signals. Wiring: 1. RD: Connect to the positive terminal of DC 924V. 2. BK: Connect to the negative terminal of DC 924V and the 420mA, 05V, or 010V signal. 3. GR: Control input position; control current/voltage positive (420mA, 05V, or 010V). 4. YW: Connect to the LED light between 924V; the light illuminates if an error occurs. 5. WT: Position-feedback connection; OC output PWM signal. PWM frequency: 0100 Hz. Duty cycle: 595%. Product model: TFM25-B2-C Connection size: 1 in., DN25 Valve thread: BSP or NPT, optional Valve body material: Brass Operating voltage: DC 924V (DC 9V, DC 12V, or DC 24V) Control signal: 05V, 010V, or 420mA, optional Position: Any position Angle error: 1.6 Opening/closing time: 7 seconds Stall delay: 24 seconds Wiring control: 5-wire control with feedback signal Maximum working pressure: 1.0 MPa Circulation medium: Liquid or air Operating current: 500 mA Service life: 100,000 cycles Actuator material: PPO Seal materials: FKM and PTFE Actuation rotation: 90 Maximum torque: 2 Nm Cable length: 0.5 m Ambient temperature: 15 to 60C Fluid temperature: 195C Manual override: None Open/closed indicator: Yes Protection rating: IP67 Concerned chemicals: None NC or NO: Normally closed Actuator mode: With guide Structure: Ball Medium: Water Material: Brass Medium temperature: 195C Power supply: DC 924V Standard or non-standard: Standard Pressure: Maximum 1.0 MPa Model number: TFM25-B2-C Power source: DC Smart device: No Voltage: DC 924V Wires: 5 wires with signal feedback Signal: 05V, 010V, or 420mA Torque: 4 Nm On/off time: 7 seconds Position: Any position
