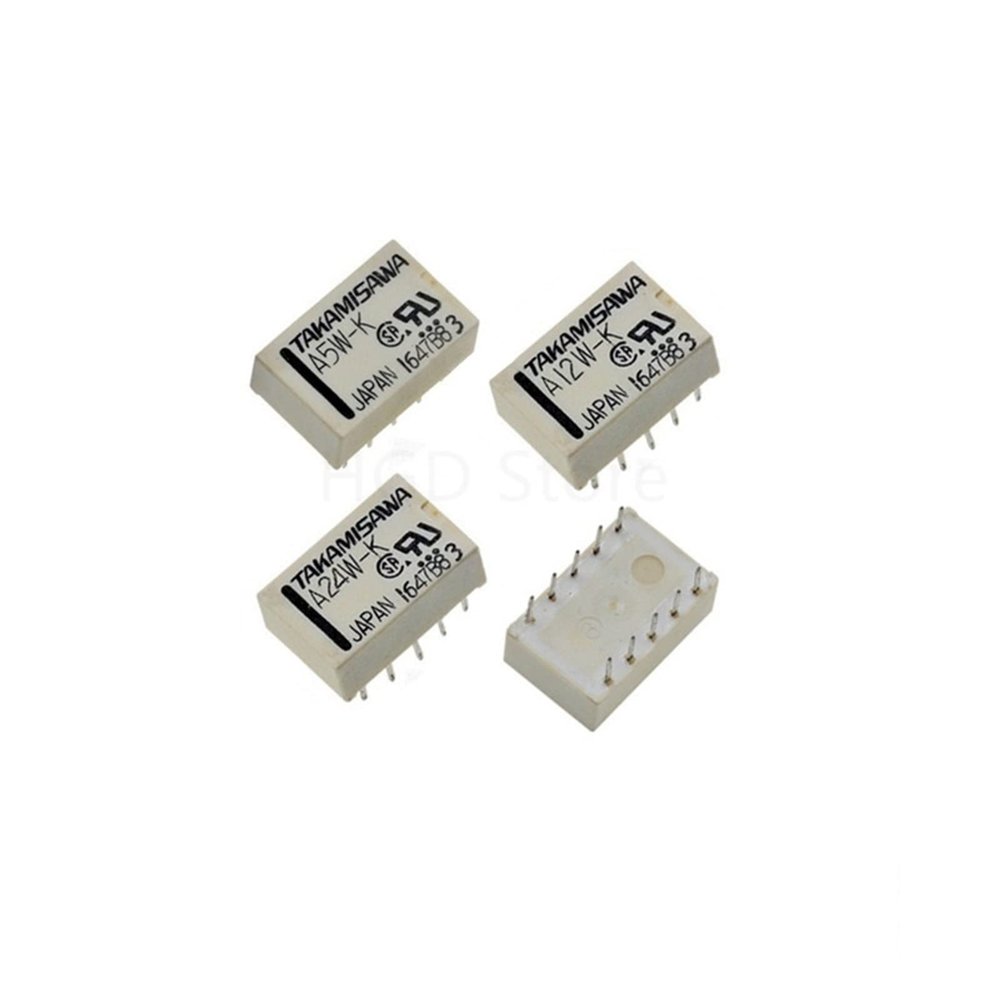

TAKAMISAWA A5W-K/A12W-K A12W-K 12VDC 10-Pin Signal Relays, 5-Pack

Description

• Relay / reed relay
• Signal relay
• Series A
• Model: A5W-K
• Dimensions: 14.0 9.0 5.0 mm (L W H)
• Weight: 1.2 g
• Contact type: 2C (DPDT)
• Contact rating: 1 A, 30 VDC; 0.5 A, 125 VAC
• Impedance: 50 m
• Rated current: 2 A
• Electrical life: 200,000 cycles
• Mechanical life: 100 million cycles
• Coil resistance (10%): 178
• Coil power consumption: 140 mW
• Rated voltage: 5 VDC
• Pickup voltage: 3.5 VDC
• Release voltage: 0.5 VDC
• Operating temperature: -40 to +85 C
• Insulation resistance: 1,000 M
• Dielectric strength between coil and contact: 1,000 VAC / 1 min
• Dielectric strength between contacts: 1,000 VAC / 1 min

Relay / reed relay. Type: signal relay. Series: A. Model: A5W-K. Overall dimensions: 14.0 9.0 5.0 mm (L W H). Weight: 1.2 g. Contact parameters: contact type 2C (DPDT), contact rating 1 A at 30 VDC and 0.5 A at 125 VAC, impedance 50 m, rated current 2 A, electrical life 200,000 cycles, and mechanical life 100 million cycles. Coil parameters: resistance (10%) 178 , coil power consumption 140 mW, rated voltage 5 VDC, pickup voltage 3.5 VDC, release voltage 0.5 VDC, and operating temperature from -40 to +85 C. Insulation resistance: 1,000 M. Dielectric strength between coil and contact: 1,000 VAC for 1 minute. Dielectric strength between contacts: 1,000 VAC for 1 minute.
