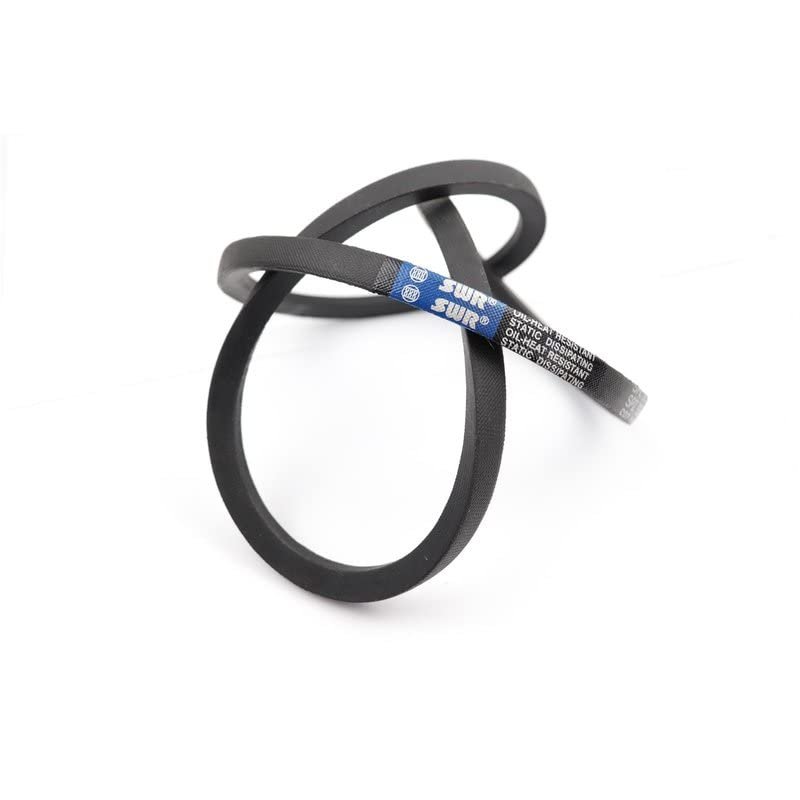

SWR Classic V-Belt Z44-10 x 1120 Li

Description

• Wear-resistant, rubberized polyester-cotton fabric
• High-strength tension member embedded in a damping rubber compound
• Especially resistant to environmental influences such as heat, ozone, sunlight, and weathering

The classic SWR drive belt features a polyester tension cord, an extremely robust rubber core, and a covering fabric. Its distinctive feature is that the firmer, stable rubber compound does not affect its flexibility. Applications include, for example, mechanical engineering and gardening equipment as replacement parts. Classic V-belts are suitable for universal use. Technical data: - V-belt designation: Z44 - 10 x 1120 Li - Profile: 10 x 6 mm (top width x height) - Inside circumference (Li): 1120 mm - Effective length in the tension member area (Lw/Ld) = Li + 22 mm: 1142 mm - Outside circumference (La) = Li + 38 mm: 1158 mm - Top width: 10 mm - Bottom width: 4.5 mm - Height: 5.5 mm - Angle: 40 - Material: Chloroprene embedding compound, fabric-covered, black - Tension member: Low-stretch polyester tension cords - Standard: DIN 2215 / ISO 4184 - Tolerance according to DIN: 1% - Recommended minimum pulley diameter: 50 mm Properties: - Matched set - Limited oil resistance - Temperature range: -30C to +90C - Maximum speed: 30 m/s Note: These classic V-belts are not suitable for back-tension rollers, idler rollers, or engaging V-belt drives. So-called clutch belts are designed for these conditions. In multi-groove V-belt drives, all V-belts used must always be replaced together and must come from the same production batch. A note can be added during checkout for this purpose. If this instruction is disregarded, the V-belts may experience increased wear or be destroyed.
