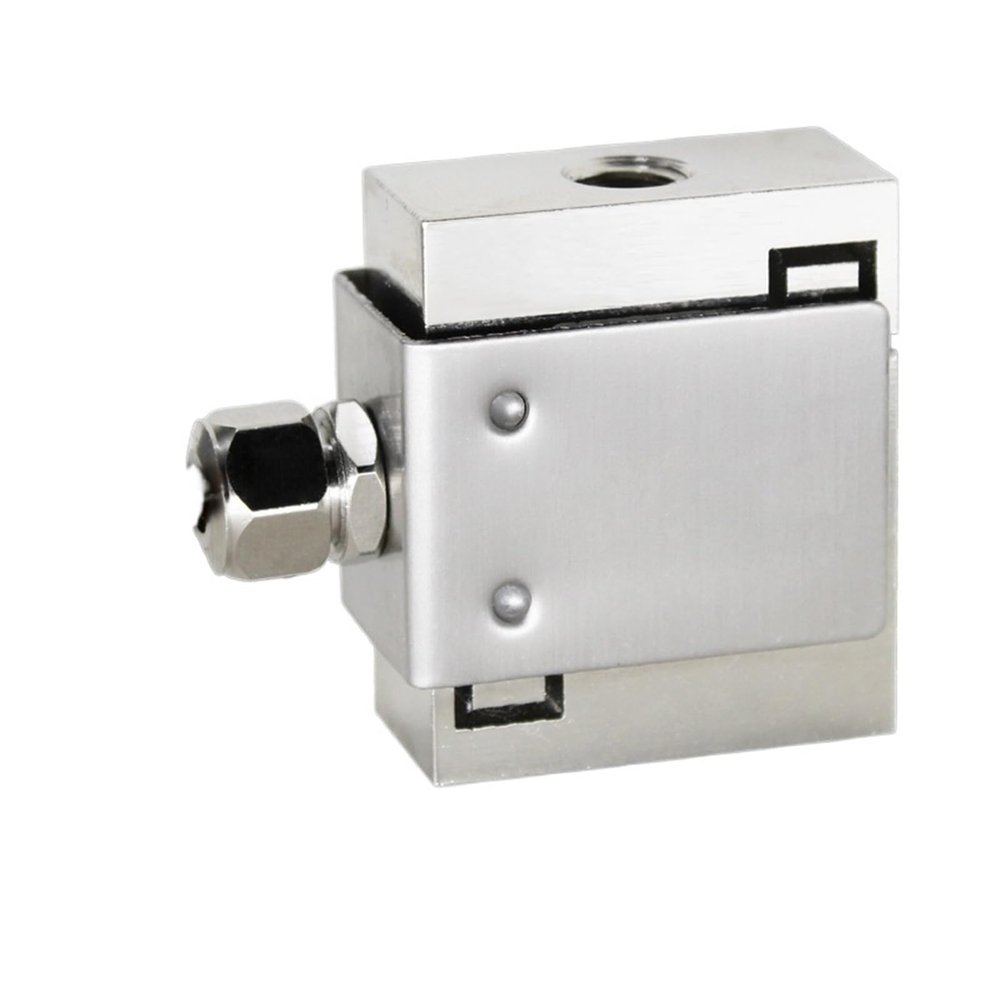

S-Type Load Cell Sensor, 5 kg/50 kg Tension Sensor, 0–5 kg

Description

• Tension and compression in both directions for convenient force measurement
• Easy installation and good stability
• High measurement accuracy; suitable for high-temperature, low-temperature, and pressurized environments
• Oil-resistant, waterproof, and corrosion-resistant; suitable for all environments
• Suitable for mixing plants, dosing machines, asphalt mixing plants, and more
• Safe and explosion-proof; suitable for harsh environments and hazardous areas

Sensitivity: 2.0 mV/V, 0.05 Nonlinearity: 0.03 FS Hysteresis: 0.03 FS Repeatability: 0.03 FS Creep: 0.03 FS/30 min Zero output: 1 FS Zero temperature coefficient: 0.03 FS/10 Sensitivity temperature coefficient: 0.03 FS/10 Operating temperature range: -20C to +80C Input resistance: 350 20 Output resistance: 350 5 Safe overload: 150% FS Insulation resistance: >5000
