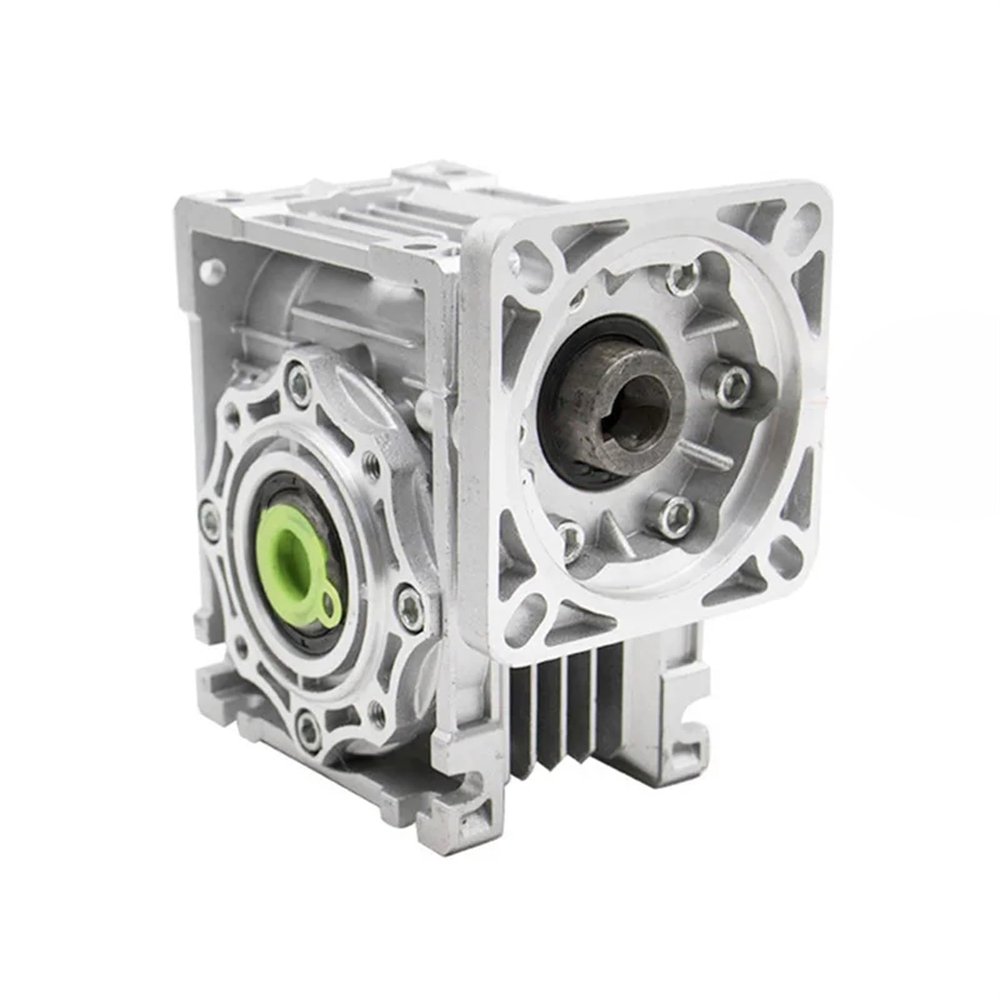

Styire NMRV040 Precision Vertical Speed Reducer Gearbox, 14 mm Input/18 mm Output

Description

• Input bore: 14 mm (0.55 in); 5 mm (0.20 in) keyway. Output bore: 18 mm (0.71 in); 6 mm (0.24 in) keyway.
• 60 60 mm input flange: register 50 mm (1.97 in); diagonal hole spacing 70 mm (2.76 in).
• 86 86 mm input flange: register 73 mm (2.87 in); diagonal hole spacing 95 mm (3.74 in).
• Easy disassembly: The removable output shaft simplifies maintenance, supports thorough cleaning, and helps prevent performance issues caused by buildup.
• Low-noise operation: The smooth surface minimizes friction, allowing the worm gearbox to operate quietly while maintaining performance.

Available speed ratios: 5, 7.5, 10, 15, 20, 25, 30, 40, 50, 60, 80, and 100. Please select the ratio you need. For the 60 60 mm (2.24 2.24 in) input flange: input bore 14 mm (0.55 in) with a 5 mm (0.20 in) keyway; output bore 18 mm (0.71 in) with a 6 mm (0.24 in) keyway; input flange register 50 mm (1.97 in); diagonal hole spacing 70 mm (2.76 in). Compatible with a 60 mm servo motor. For the 86 86 mm (2.24 2.24 in) input flange: input bore 14 mm (0.55 in) with a 5 mm (0.20 in) keyway; output bore 18 mm (0.71 in) with a 6 mm (0.24 in) keyway; input flange register 73 mm (2.87 in); diagonal hole spacing 95 mm (3.74 in). Compatible with a NEMA34 stepper motor. We are a professional manufacturer of speed reducers. We also offer various types of speed reducers. Contact us anytime for a detailed introduction to other models.
