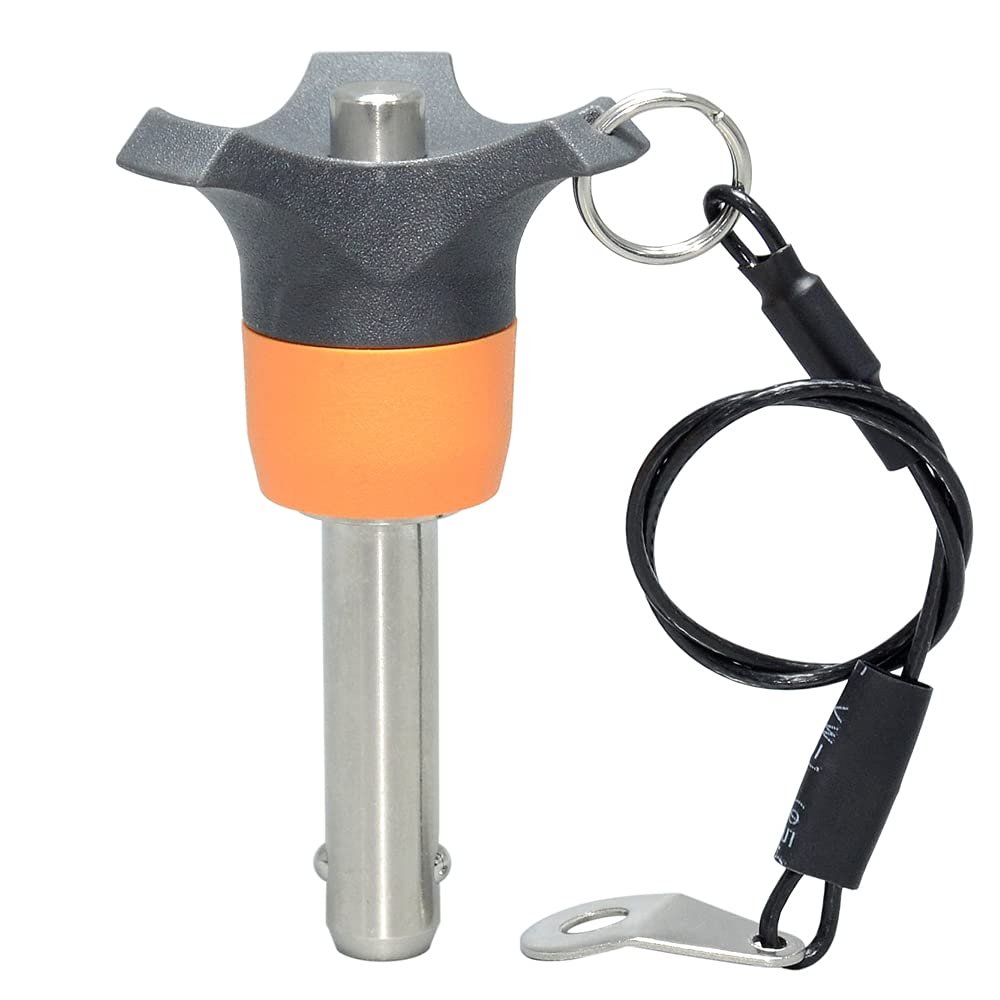

Stainless Steel Quick-Release Positioning Pin, M5 x 35 mm

Description

• Model: PLD; pin diameter: 5 mm; clamping length: 35 mm.
• Product drawings and specification sheets are included in the product images. Dimensions for each position are identified by uppercase letters and listed in the specification table.
• Available in multiple sizes.
• Pin material: 304 stainless steel; handle material: Nylon 6 (orange and gray); button material: 304 stainless steel; ball-lock material: 440C stainless steel; built-in spring material: 304 stainless steel.
• To install or remove the pin, press the button to retract the two locking balls. Release the button to allow the balls to extend and lock the pin in position.
• Each quick-release pin includes a 1.5 mm diameter, 250 mm long retention cable that can be installed or removed as needed.
• All dimensions are in metric millimeters. Due to manual measurement, slight deviations may occur; the error will be less than 0.5 mm.

About this product: This ball-lock pin is secured by two raised locking balls. Press the button to easily control installation or removal of the pin. The ball-lock pin is made of high-quality 304 stainless steel, suitable for use in environments such as food processing, high humidity, and outdoors. It is a precision positioning pin designed for accurate, secure positioning. Applications: Made of strong, wear-resistant, and corrosion-resistant stainless steel, this ball-lock pin can be widely used with standard components in precision equipment, including factory automation, MRO, manufacturing and processing, electronic and electrical equipment, ships, military aviation, decorative hardware, industrial manufacturing, and plastic molds. Ball-lock pins are ideal for quickly securing components, especially when they are frequently removed and repositioned. This pin is available in a variety of sizes to meet different requirements. It can be used with a retention cable for improved security, traceability, and loss prevention. We are a factory and can provide custom processing services for additional specialty hardware components. We can customize the style and size according to customer drawings or requirements.
