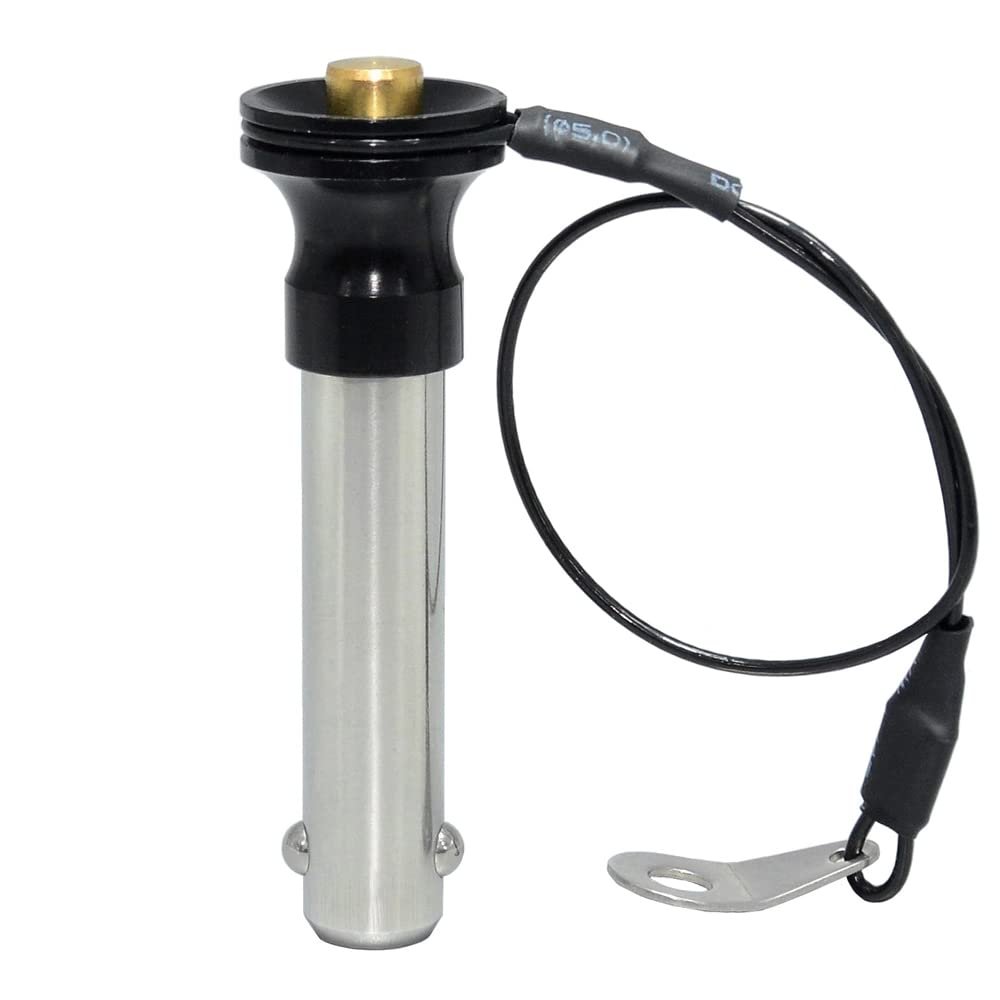

Stainless Steel Quick-Release Positioning Pin, M16 × 95 mm

Description

• Product model: PLC; pin diameter: 16 mm; clamping length: 95 mm.
• Product drawings and specification sheets are included in the product images. Uppercase letters identify dimensions at different positions; refer to the specification table for the corresponding measurements. Multiple sizes are available.
• Materials: 304 stainless steel pin, aluminum alloy handle, black galvanized handle finish, 304 stainless steel button, 440C stainless steel locking balls, and 304 stainless steel integrated spring.
• To use, press the button to retract both locking balls for easy installation or removal. Release the button to allow the balls to extend and lock the pin in place.
• Each quick-release pin includes a 1.5 mm diameter, 250 mm long retention cable that can be installed or removed as needed.
• Note: All dimensions are in metric millimeters. Because measurements are taken manually, slight deviations may occur; the error will be less than 0.5 mm.

About this product: This ball-lock pin is secured by two extended locking balls. Press the button to easily control installation and removal of the pin. The ball-lock pin is made of high-quality 304 stainless steel, which can be used in demanding environments such as food processing, high-humidity areas, and outdoor applications. It is a high-quality, high-precision positioning pin designed for safety and environmental compatibility. Applications: Made of strong, wear-resistant, and corrosion-resistant stainless steel, this ball-lock pin can be widely used in standard components for precision equipment, including factory automation, MRO, manufacturing and processing, electronic and electrical equipment, ships, military aviation, decorative hardware, industrial manufacturing, and plastic molds. Ball-lock pins are ideal for quickly securing components, especially when they are frequently removed and repositioned. This pin is available in a variety of sizes to meet different requirements. It can be used with a retention cable for greater security, traceability, and loss prevention. We are a factory. If you need other specialized hardware parts, we can provide custom processing services. We can customize the style and size you need based on customer drawings or requirements. We welcome your inquiries.
