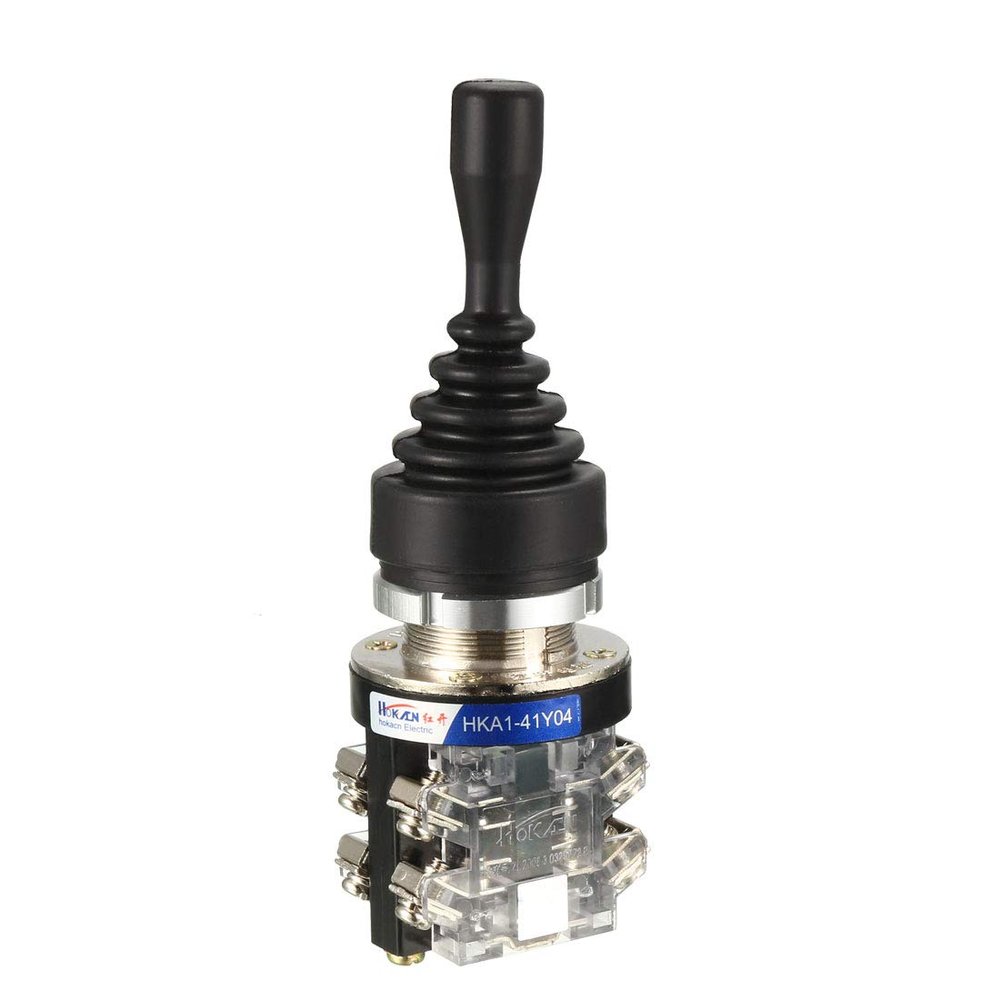

Sourcing Map 4-Position Joystick Switch, 4 NO Latching Type, 150/250/600 V, 30 mm Panel Mount, HKA1-41Y04

Description

• Operates in 4 directions with a 30-degree handle deflection
• Latching operation with 1 normally open contact per direction
• Rated voltage: 150 V / 250 V / 600 V; rated current: 15 A / 10 A / 5 A
• Drill a 30 mm (1-17/94 in) hole and secure with the screw ring
• Widely used in automation, system installation and control, power monitoring, and critical power and cooling service

Description: Joystick switches are manually operated control devices designed for installation in control and front panels as well as portable control equipment. They are used wherever motion sequences are controlled by hand in accordance with the direction of operation. They are suitable for raising, lowering, and triggering movements to the right and left. This 30 mm selector switch is designed for modular installation. The rubber bushing is oil-resistant and dust-resistant. Widely used in the steel and construction industries, machine tools, transport and conveying equipment, plant and mechanical engineering, and warehouse and studio technology. Specifications: Model: HKA1-41Y04 Rated voltage: 150 V / 250 V / 600 V Rated current: 15 A / 10 A / 5 A Action type: Latching Positions: 4 Contact type: 1 normally open contact per direction Terminal type: Screw terminals Panel-mount diameter: 30 mm / 1-17/94 in Overall size: 145 x 49 mm / 5.71 x 1.93 in (L x D) Joystick length: 78 mm / 3.07 in
