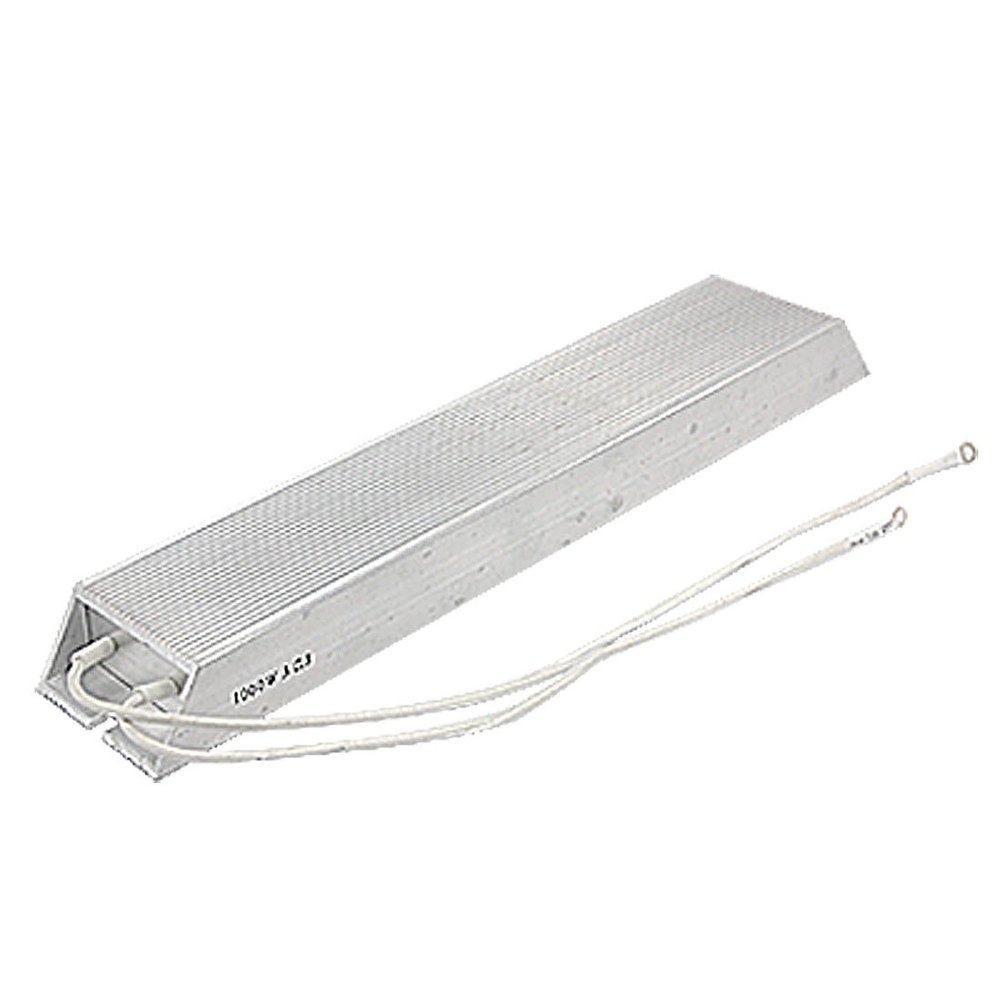

Sourcing Map 1000W 3 Ohm Aluminum-Cased Wirewound Braking Resistor

Description

• Product type: Braking resistor
• Resistance: 3 ohms; rated power: 1000W
• Dimensions: 33 x 6 x 3 cm (13 x 2.4 x 1.2 in, L x W x T)
• Wire dimensions: 36 x 0.5 cm (14.2 x 0.2 in, L x outer diameter)
• Mounting pitch: approximately 0.6 cm (0.236 in)
• Terminal inner diameter: approximately 0.4 cm (0.157 in)
• Housing material: Aluminum; color: silver
• Net weight: 1008 g
• Package includes: 1 braking resistor

Specifications:
Product type: Braking resistor
Resistance: 3 ohms
Rated power: 1000W
Resistance tolerance: 5% (J)
Dimensions: 33 x 6 x 3 cm (13 x 2.4 x 1.2 in, L x W x T)
Wire dimensions: 36 x 0.5 cm (14.2 x 0.2 in, L x outer diameter)
Mounting pitch: approximately 0.6 cm (0.236 in)
Terminal inner diameter: approximately 0.4 cm (0.157 in)
Housing material: Aluminum
Color: Silver
Net weight: 1008 g
Package includes: 1 braking resistor

Description:
Widely used in power supplies, converters, elevators, arena audio systems, lifting and braking equipment, ships, load equipment, and high-demand equipment industries. The aluminum casing has good heat dissipation and is suitable for heatsink installation and use in harsh environments. Multiple connection configurations make installation easy. Compact size with high load capacity.

Note: For a longer service life, the actual load power connected to this product should be less than 70% of the rated power.
