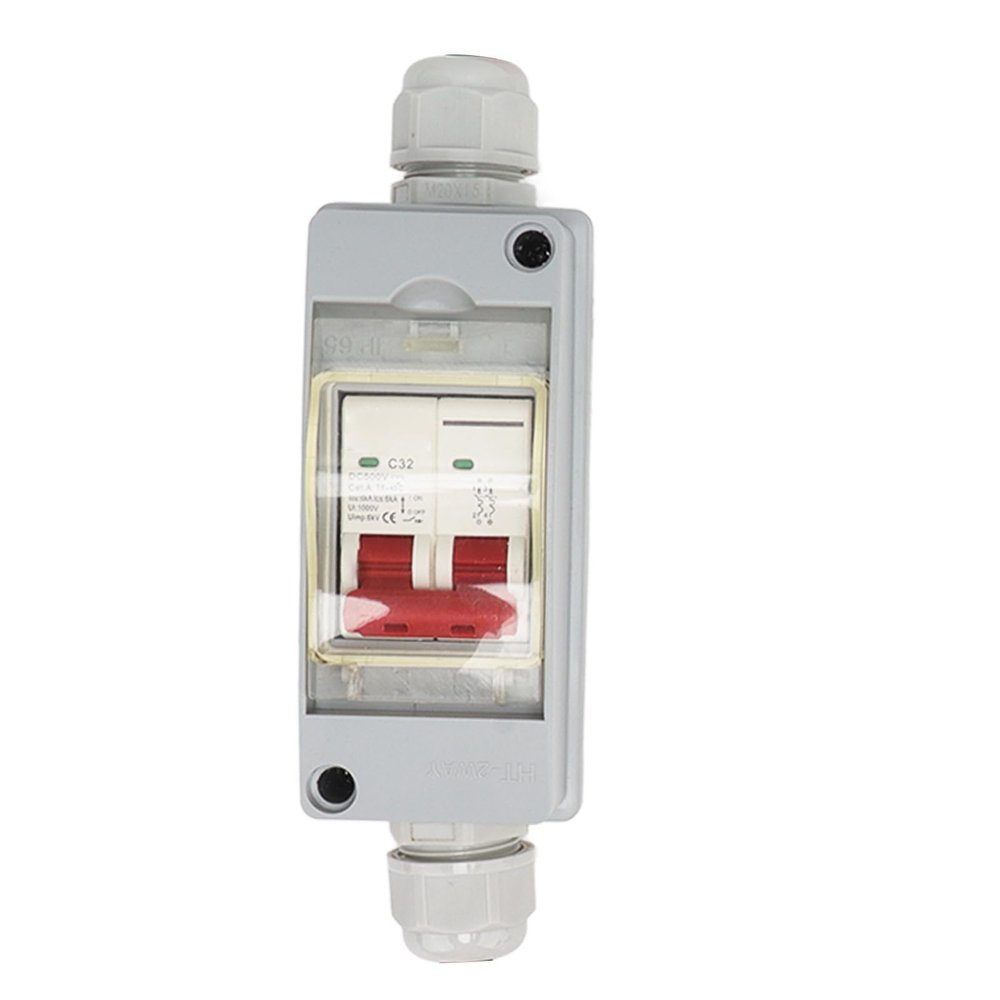

Solar Panel Disconnect Switch 500V 32A 2P with IP65 Waterproof Distribution Box (No Cables)

Description

• Safety protection: Includes overvoltage, overload, and lightning protection functions, with remote communication capability.
• Easy installation: 500V solar photovoltaic DC combiner box for installation between the solar panel and inverter.
• Sturdy construction: Equipped with a DC module to maximize photovoltaic DC circuit-breaker protection; the transparent cover allows easy status inspection.
• Reliable protection: Suitable for indoor and outdoor installation, with integrated DC switchgear for protection in severe weather and environmental conditions.
• Wide application: Suitable for grid-connected photovoltaic solar systems, solar off-grid systems, household use, and RVs.

Specifications: Item type: Circuit breaker Model: LQX C32.2 Material: Polycarbonate, ABS Input: 1 string Output: 1 string Maximum voltage: 500V Maximum short-circuit input current: 32A, replaceable Protection rating: IP65 Product size: Approx. 120 x 55 x 90 mm (4.72 x 2.17 x 3.54 in) Cable inlet: M20, 6 mm x 2 Output cable outlet: M20, 6 mm x 2 Rated insulation voltage Ui: 500V Rated current Ie: 32A Maximum operating voltage Ucpv: 500V Package contents: Option 1: 1 x circuit breaker; 1 x user manual Option 2: 1 x circuit breaker; 4 x connectors (2 male connectors and 2 female connectors); 4 x unspecified items; 4 x screws.
