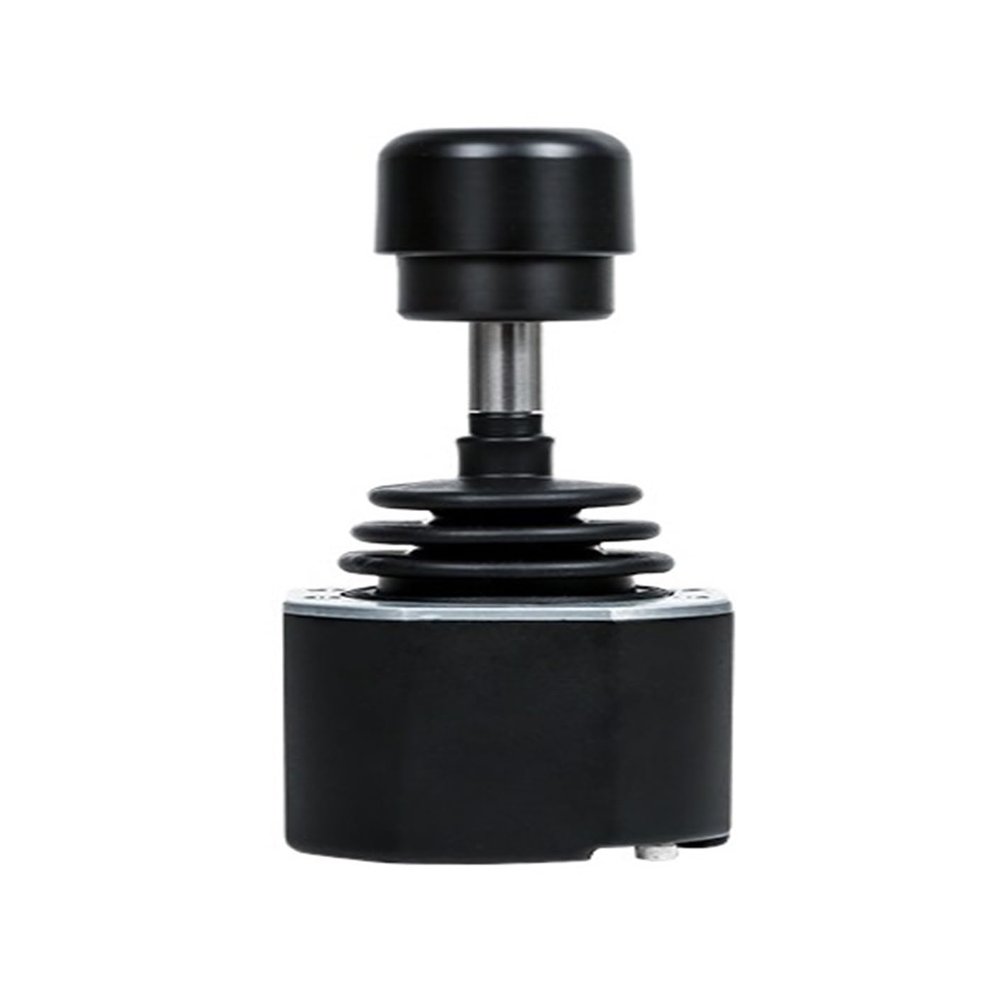

SMC61S Pull-Lock Hall Control Lever with Automatic Center Return, 12 V/USB Output

Description

• Durable aluminum alloy and stainless steel construction.
• IP67 protection above the panel for resistance to dust and water ingress.
• Automatic spring return and friction-resistance positioning.
• 34 operating angle, 68 total angle, with less than 1% linearity error.
• Hall sensor with analog voltage, USB, RS422, RS232, CAN 2.0, and PWM power-drive outputs.
• More than 5 million operations; operating temperature from -40C to +70C.
• Compact base size: 71.21 (L) 71.21 (W) 58.45 (H) mm.

This single-axis joystick is primarily used to control construction machinery and electric vehicles. It features an instrument-style structure, imported high-precision Hall sensors, a linear temperature range, comfortable operation, and an ergonomic mechanical design. The panel-mount design uses stainless steel and aluminum alloy materials and includes an automatic spring-return mechanism. Material: Aluminum alloy, stainless steel Protection rating: IP67 above the panel Positioning: Automatic spring return/friction-resistance positioning Operating angle: 34 (68 total) Linearity: Less than 1% Sensor: Hall sensor Power supply: DC 5 V, DC 1224 V Signal output: Analog voltage, USB, RS422, RS232, CAN 2.0, PWM power drive Direction switch: Forward + reverse Service life: More than 5 million operations Temperature: -40C to +70C Base size: 71.21 (L) 71.21 (W) 58.45 (H) mm
