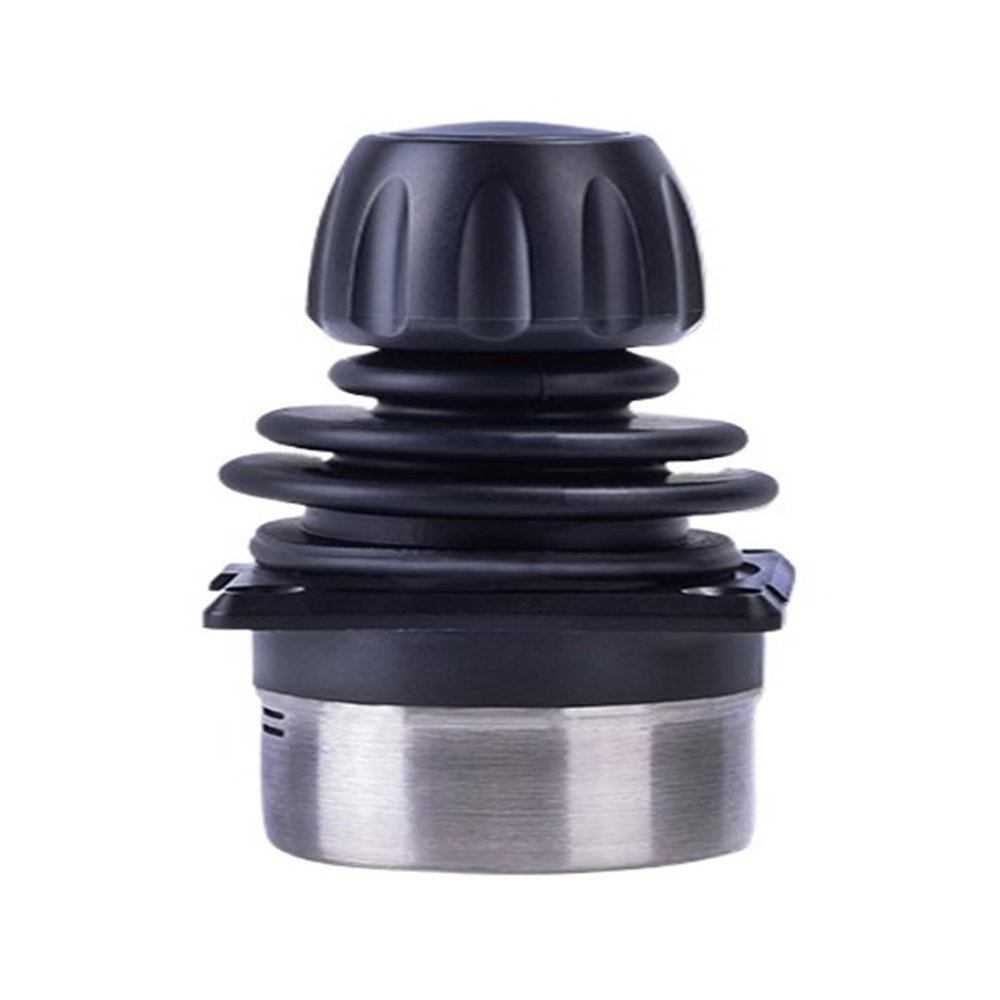

SMC35A Two-Axis Industrial Hall-Effect Joystick for Machine Vision, Square Boundary, 5 V Analog Output 1.0–4.0 V

Description

• Durable materials: Stainless steel, alloy, and engineering plastic construction.
• Precise positioning: Hall sensor with automatic spring return and precise positioning within a 20 XY-axis operating angle.
• Versatile signal output: Supports analog, RS485, RS422, RS232, USB, and CAN.
• Wide power supply range: Compatible with DC 5 V and DC 1228 V power supplies.
• Rugged design: IP67 protection above the panel and reliable operation from -40C to +70C.

SMC35 series Hall-effect joystick with 1, 2, or 3 axes for panel mounting and installation. It features stainless steel and alloy materials, an automatic spring-return mechanism, a high-precision Hall sensor, and positive linearity across the full temperature range. The joystick provides IP67 protection above the panel, comfortable operation, and an ergonomic mechanical design. Suitable for robots, drones, medical equipment, aerospace, ships, and radio and television equipment. Material: Stainless steel + alloy + engineering plastic Sensor: Hall sensor Positioning: Automatic spring return Operating angle: XY axis: 20 Operating range: Circular boundary, cross-shaped boundary, square boundary Signal output: Analog, RS485, RS422, RS232, USB, CAN Power supply: DC 5 V, DC 1228 V Power consumption: Less than 925 mA (5 V power supply; signal output and number of axes unspecified in the source) Service life: More than 10 million operations Operating temperature: -40C to +70C Protection rating: IP67 above the panel Base size: 44.4 44.4 mm Size: 35 35 mm
