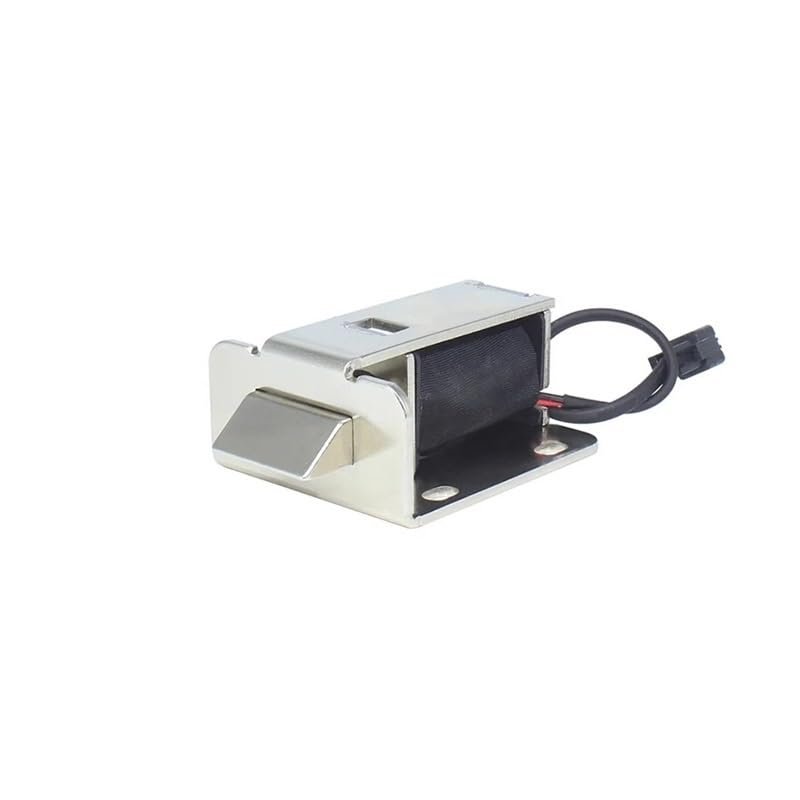

SM03 Wide-Tongue Electromagnetic Lock, DC 12V, Up to 150 kg Radial Load

Description

• Model: SM03
• Electrical parameters: DC 12V, 3A
• Locking pin extends when power is off and retracts when power is on
• Startup time: 5 seconds
• Can be re-energized when coil temperature is below 60C
• Dimensions: 54L 45W 26H mm
• Motion length: 10 mm
• Weight: 155.5 g
• Maximum radial load: 150 kg
• Operating temperature: -25C to 60C

ICXLPMC SM03 electromagnetic lock with a DC 12V, 3A electrical specification. The locking pin extends when power is off and retracts when power is on. The startup time is 5 seconds, and the unit can be re-energized when the coil temperature is below 60C. Dimensions are 54L 45W 26H mm, with a 10 mm motion length, a weight of 155.5 g, and a maximum radial load of 150 kg. Operating temperature: -25C to 60C. Initial lock tongue suction force:
