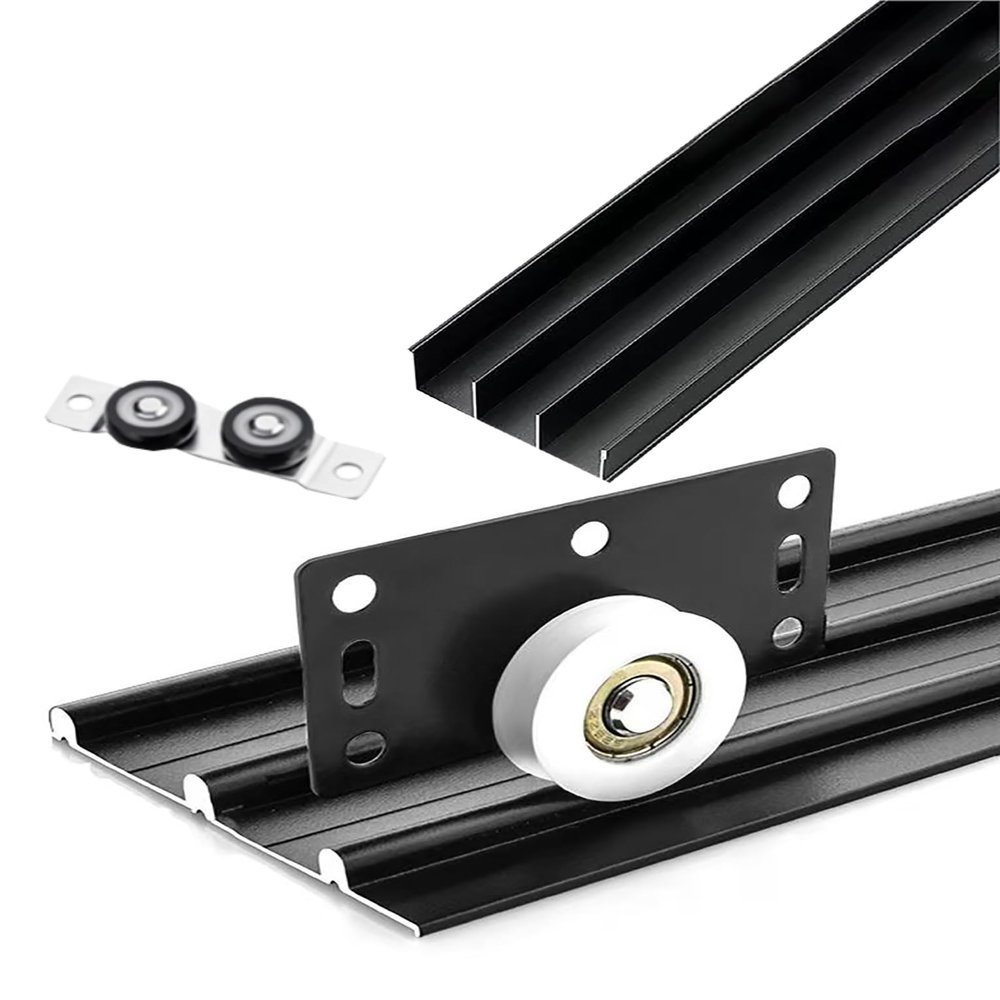

Sliding Door Hardware Kit, 3-Panel Bypass, 270 cm Rails

Description

• Versatile three-track design for up to 3 independent sliding panels.
• 1.5 mm thick anodized aluminum rails with reinforced mounting brackets.
• Supports individual doors weighing up to 50 kg.
• Quiet-running rollers with 3 mm vertical adjustment for precise alignment.
• Universal flush-mount design with wall/ceiling brackets and pre-drilled holes.
• Suitable for wood, laminate, or composite doors; recommended panel widths: 61121.9 cm.

The sliding-door rail system allows the doors to slide to one side at the same time. Its three-track design enables efficient use of space, accommodates multiple door panels, and maximizes accessibility in confined areas. The door panels are easy to remove: simply lift a door upward to release it. For installation, first secure the top rail and level the top of the cabinet. Insert the lower wheel using a 35 mm door-hinge saw and secure it with screws. Installing the upper wheel requires attention to detail: ensure that the smaller rounded corner is parallel to the inner door panel, while the larger rounded corner faces outward. Secure it with screws. Finally, install the door panels by lifting the upper wheel into the top rail, then adjust the doors until the gap is even. Secure the lower rail for stability. This high-quality three-track sliding system provides smooth operation for up to three door panels. It is made from industrial-grade anodized aluminum to reduce friction for effortless use. Technical specifications: - Rail material and thickness: 1.5 mm anodized aluminum alloy - Load capacity: 149.7 kg total, or 49.9 kg per panel - Included components: 2 rails, 12 rollers, and screws The installation is flexible and allows for a suspended or ceiling-mounted configuration. The roller height is adjustable for uneven surfaces. Precision tolerances help prevent derailment and minimize dust accumulation in residential or light commercial environments. Important notes: 1. Manual measurement may have an error of 13 cm. 2. Slight color differences may occur due to different lighting conditions and individual color perception. Refer to the actual product for accuracy. 3. Aluminum-alloy sliding rails longer than 1.2 m are cut for shipping and can be joined during installation.
