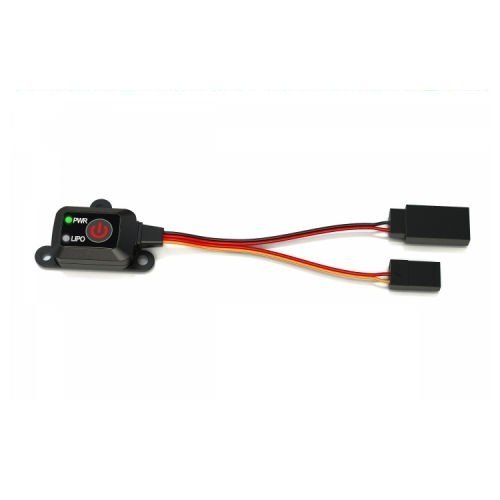

SkyRC SK600054 Power Switch, 4–12V, 10A, LiPo/NiMH

Description

• SkyRC power switch for RC models
• 412V input voltage
• Maximum current: 10A
• Supports LiPo, NiMH, and NiCd batteries
• LiPo low-voltage protection at 6.2V

A tiny microprocessor-controlled on/off switch from SKYRC for RC models. A simple push button serves as the switch, eliminating common problems such as intermittent connections that often occur with mechanical switches. The sealed plastic housing can be installed almost anywhere in the model using double-sided adhesive tape thanks to its compact size. Its three mounting holes also fit optimally on a transponder mount. Two different push-button covers are included, allowing the user to choose between them. The switch also supports LiPo mode, which automatically activates low-voltage protection when the voltage is too low to protect the LiPo battery from deep discharge. This mode can be disabled if other protective devices are already in use or if the switch is operated with NiMH/NiCd batteries. In addition, the switch indicates the battery's current capacity status at all times. Product information (SK-600054): Input voltage: 412V; maximum current: 10A; LiPo low-voltage protection: 6.2V (LiPo); operating temperature: 050C; weight: 7g; battery modes: 1. NiMH/NiCd, 2. LiPo. Switch configuration: 1. NiMH/NiCd battery packs: Press the switch and hold it for one second to turn it on. The Power (PWR) LED lights up. To turn it off, hold the switch until all LEDs go out. When switching on, the Power (PWR) LED indicates the battery's remaining capacity. 2. LiPo battery packs: Press the switch and hold it for more than three seconds to turn it on. The Power (PWR) LED and the LIPO LED light up. To turn it off, hold the switch until all LEDs go out. When switching on, the Power (PWR) LED indicates the battery's remaining capacity. SkyRC Technology Co., Ltd. is a manufacturer of battery chargers.
