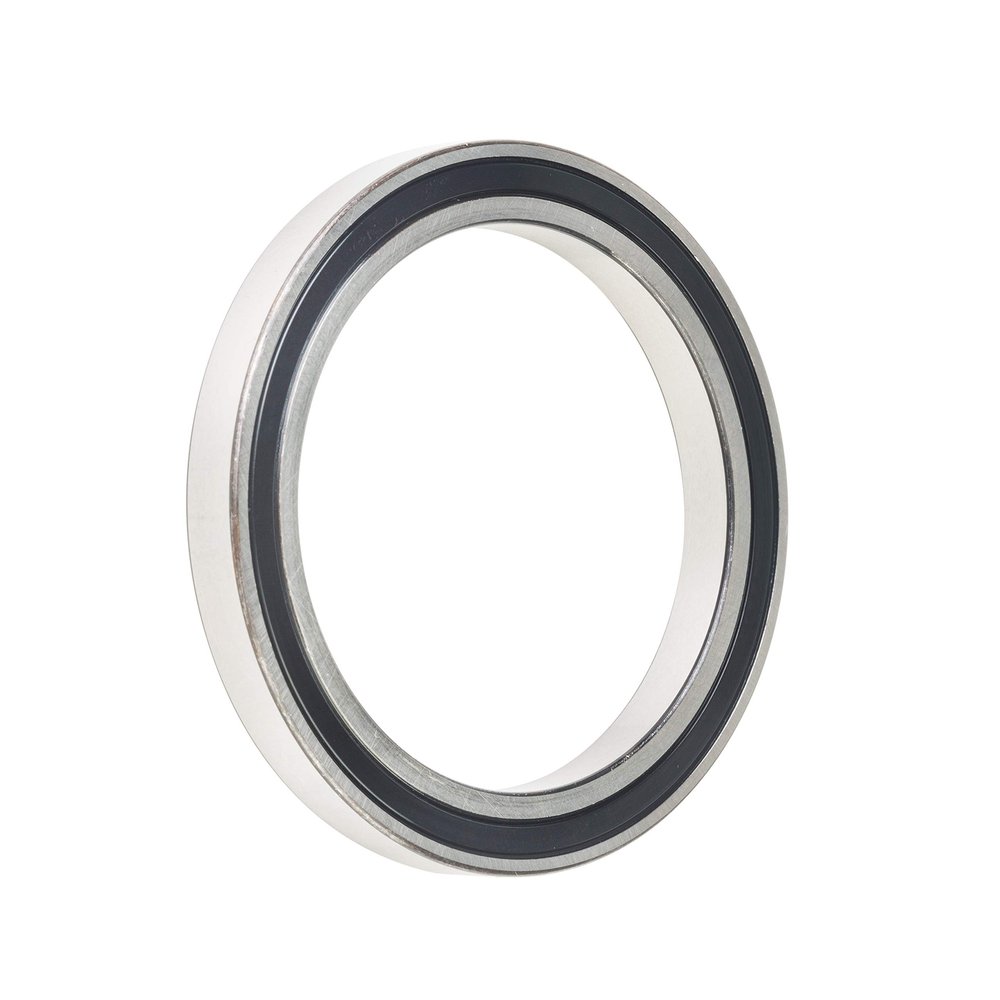

SKF Deep Groove Ball Bearing 61804-2RS1

Description

• Sealing solution: Contact seals on both sides
• Unit: Metric system
• Bore diameter d: 20 mm

Single-row deep groove ball bearing. Outside diameter D: 32 mm. Width B: 7 mm. Inner ring shoulder diameter d1: 23.85 mm. Outer ring shoulder diameter D1: 28.25 mm. Outer ring shoulder diameter D2: 29.4 mm. Minimum chamfer dimension r1,2: 0.6 mm. Minimum shaft abutment diameter: 22 mm. Maximum shaft abutment diameter: 23.6 mm. Maximum housing abutment diameter: 30 mm. Maximum fillet radius: 0.3 mm. Basic dynamic load rating C: 4 kN. Basic static load rating C0: 2.3 kN. Fatigue load limit Pu: 0.104 kN. Limiting speed: 13,000 r/min. Calculation factor kr: 0.015. Calculation factor f0: 14.5.
