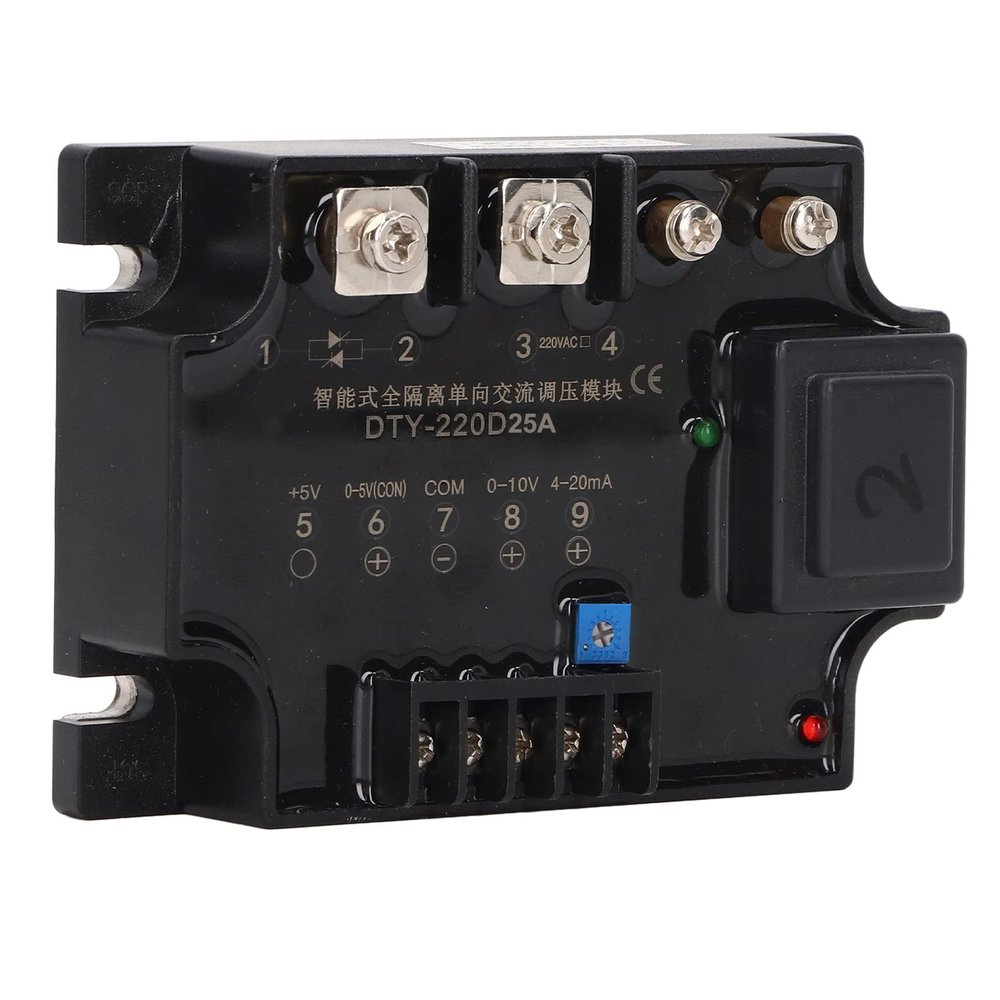

Single-Phase Voltage Regulator, Fully Isolated Thyristor Module, 4–20 mA/0–10 V Control, 220 V Output

Description

• Versatile control: Supports 420 mA, 05 VDC, 010 VDC, and manual potentiometer adjustment.
• Intuitive design: LED indicators for power and output regulation, maximum output limiting, and safety protection.
• Precise regulation: Wide input range, high output regulation accuracy, integrated SCR protection, low harmonic distortion, and linear compensation.
• High performance: Uses a high-performance thyristor chip and DCB ceramic substrate for stable, reliable operation.
• Full isolation: The terminals and main circuit are fully isolated, with a 2000 VAC control input voltage.

Versatile control: Supports various input control modes, including 420 mA, 05 VDC, 010 VDC, and manual adjustment via a potentiometer. Intuitive design: Features green power and red output-regulation LED indicators, along with maximum output limiting and safety protection for a longer service life. Precise regulation: Offers a wide input range, high output regulation accuracy, a built-in SCR protection circuit, low harmonic distortion, and a linear compensation function. High performance: Uses a high-performance thyristor chip and DCB ceramic substrate for stable and reliable operation. Full isolation technology: The terminals and main circuit are fully isolated, ensuring safety with a 2000 VAC control input voltage. Specifications: Item type: Single-phase voltage regulator Product material: Metal, PBT, DCB ceramic Input current: 05 V, 010 V, 420 mA multisignal The coefficient depends on the type of load used by the equipment: resistive load: 60%; inductive load: 30% Applications: Heating: Electric furnaces, injection molding equipment, thermoforming, textile equipment, infrared heating, and drying systems Motors: Soft starting of fan motors, water pump motors, and standard motors Lighting: Public lighting, industrial lighting, and stage lighting Other: Transformers, induction coils, electric welding, and electroplating Package contents: 1 single-phase voltage regulator Installation: Install and use directly. Note: The heat sink is used for additional heat dissipation. A solid-state relay with an operating current above 10 A must be equipped with a heat sink. The quality inspection of the relay and heat sink must be carried out according to
