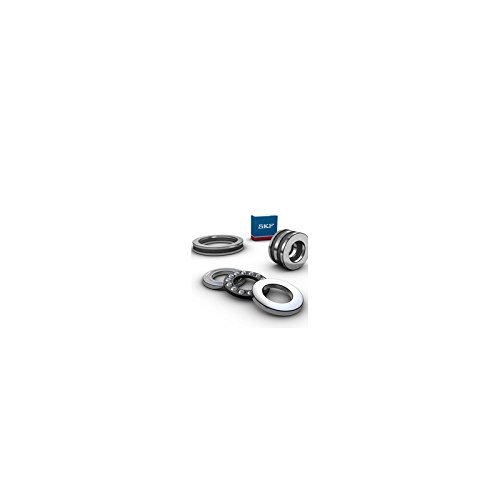

Single-Direction Thrust Ball Bearing

Description

• Design: with spherical housing washer
• Bore diameter D: 65 mm

Single-direction thrust ball bearing. Outside diameter D: 115 mm; height H: 39.4 mm. Bearing washer H1 including seat: 43 mm high. Shaft washer outside diameter D: 115 mm. Housing washer inside diameter D: 67 mm. Spherical seat washer inside diameter D2: 90 mm; outside diameter D3: 120 mm. Spherical seat washer height C: 12.5 mm. Spherical housing washer radius R: 90 mm; spherical housing washer center height S: 38.5 mm. Washer chamfer dimension r1,2 min.: 1.1 mm. Shaft abutment diameter: 95 mm. Housing abutment diameter Amax: 90 mm. Fillet radius: 1 mm. Basic dynamic load rating C: 106 kN. Basic static load rating C0: 240 kN. Fatigue load limit Pu: 8.8 kN. Reference speed: 2,000 rpm. Limiting speed: 2,800 rpm. Minimum load factor: 0.3A. Seat washer: U 313.
