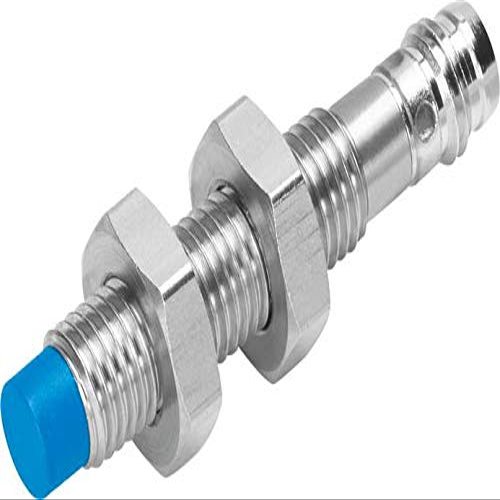

SIEN-M8NB-NS-S-L (150393) Proximity Switch, M8x1

Description

• Festo original proximity switch

Standard compliance: EN 60947-5-2. Approvals: RCM mark; cULus Listed (OL). CE marking (see Declaration of Conformity): in accordance with the EU EMC Directive. Material note: copper-free and PTFE-free. Rated sensing distance: 2.5 mm. Assured sensing distance: 2.03 mm. Reduction factors: stainless steel St 18/8 = 0.7; copper = 0.2; brass = 0.35; steel St 37 = 1.0; aluminum = 0.25. Ambient temperature: -25 to 70 C. Switching output: NPN. Switching element function: normally open. Maximum switching frequency: 3,000 Hz. Maximum output current: 200 mA. Voltage drop: 2 V. Short-circuit protection: pulsed. Operating voltage range, DC: 10 to 30 V. Residual ripple: 10%. No-load current: 10 mA. Reverse polarity protection: for all electrical connections. Electrical connection: M8x1, 3-pin plug. Size: M8x1. Mounting method: with locknut. Installation type: non-flush. Product weight: 18.0 g. Housing materials: PA, PBT, high-alloy stainless steel, chrome-plated brass. Switching status indication: yellow LED. Degree of protection: IP65, IP67. Repeatability under constant conditions: 0.12 mm. Ambient temperature with moving cable routing: -5 to 70 C. Corrosion resistance class KBK: 2 moderate corrosion stress. Hysteresis: 0.12 mm. Inductive protective circuit: built in.
