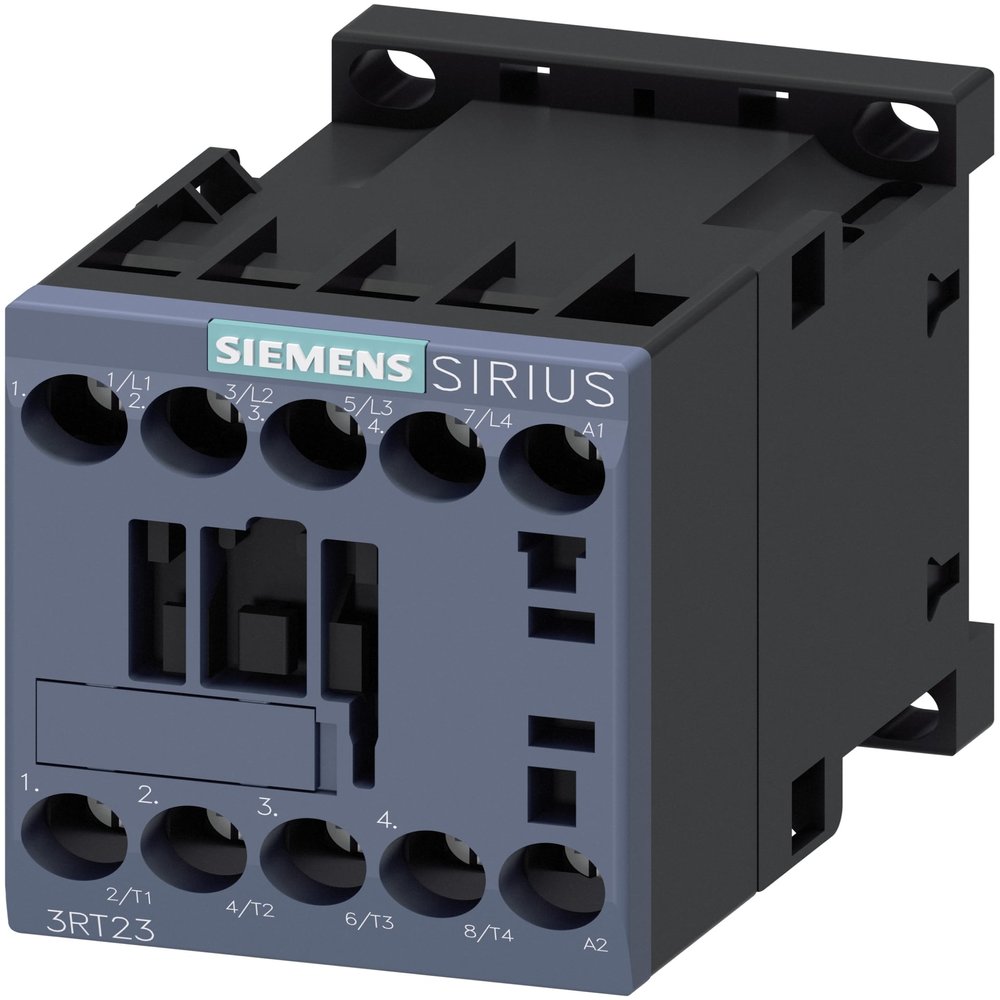

Siemens SIRIUS Contactor 14.5 kW, 22 A, AC 110/120 V, 4-Pole, Screw Terminals

Description

• Rated control supply voltage Us at AC 50 Hz: 110 V
• Rated control supply voltage Us at AC 60 Hz: 120 V
• Rated control supply voltage Us at DC: 0 V
• Control voltage type: AC
• Rated operational current Ie at AC-1, 400 V: 22 A
• Rated operational current Ie at AC-3, 400 V: 12 A
• Rated operational power at AC-3, 400 V: 5.5 kW
• Rated operational current Ie at AC-4, 400 V: 8.5 A
• Rated operational power Ie at AC-4, 400 V: 4 kW
• Suitable for in-line installation: Yes
• Auxiliary normally open contacts: 0
• Auxiliary normally closed contacts: 0
• Main circuit connection: Screw terminal
• Main normally closed contacts: 0
• Main normally open contacts: 4

The contactors are climate-resistant and touch-safe in accordance with DIN EN 50274. They are suitable for switching resistive loads; isolating networks with unearthed or poorly earthed neutral conductors; network changeover for alternative AC power supplies; inductive loads where the contactors only need to carry current and not switch it, such as variable-speed drives; and switching mixed loads in distribution systems, such as supplies for heaters, lamps, motors, and PC power supplies, with a power factor cos > 0.8 in accordance with IEC 60947-4-1, utilization category AC-1 test conditions. EAN: 4011209845695. Specification: 14.5 kW/400 V, 22 A, 110 V. Siemens Industry Sector contactor, 3RT2317-1AK60.
