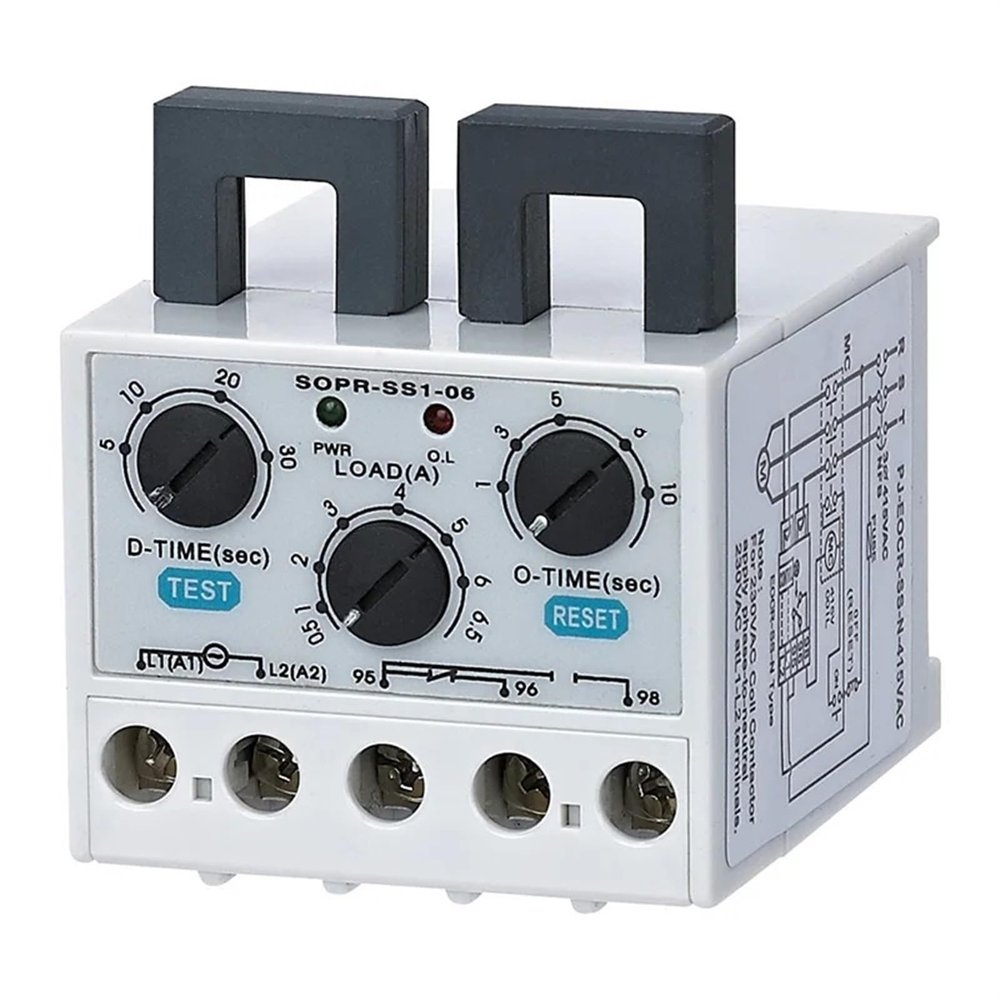

Samwha-Dsp SOPR-SS1 Electronic Overload Motor Protection Thermal Relay (5–70 A, Un 24 VAC/DC)

Description

• Relay / Mercury relay

Relay / Mercury relay Specifications Current range: Type 05: 0.56.5 A Type 30: 335 A Type 60: 570 A Type 600: Use an external CT (5 A secondary) above 60 A with Type 05. Operating voltage (Un): 12 VAC/DC, 24 VAC/DC, 110 VAC, 90260 VAC, 180460 VAC Operating frequency: 50/60 Hz Power consumption: <2 W Operating temperature: 20 to +55 C Delay times: D-time 0.230 s, O-time 0.210 s Asymmetry setting: 10% Contact rating: 5 A, 250 VAC, resistive load
