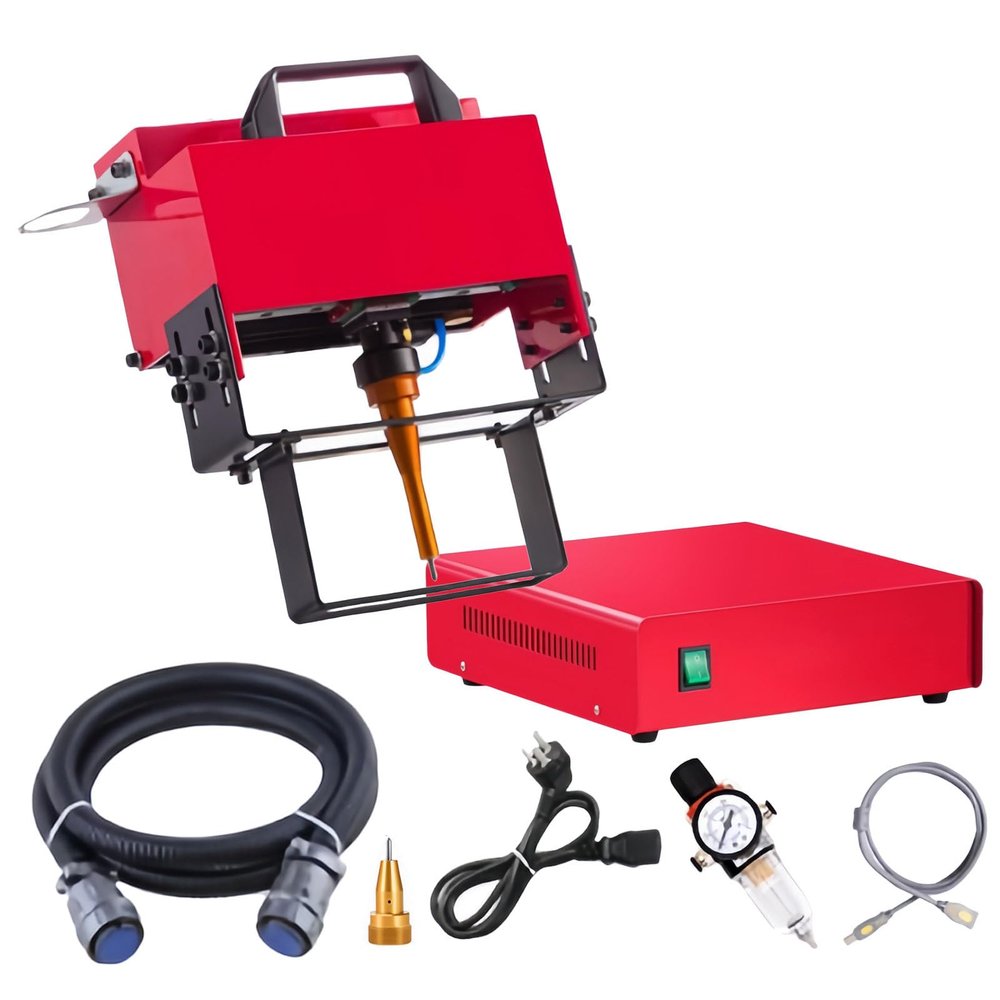

SAIYERUS Pneumatic Pin Marking Machine, M 100 x 20 mm

Description

• Supports Windows XP and Windows 7/8/10; marking depth: 0.011 mm depending on material.
• Engraving speed: approximately 1 second per character, adjustable.
• Marking direction selectable: up, down, left, right, and flat sector.
• High-hardness marking needle for deep marking on metals and hard nonmetallic materials.
• Rotary marking function for steel, stainless steel, iron, copper, aluminum, alloys, and more.
• Compact, lightweight, portable design with pneumatic or manual clamping.
• Suitable for vehicle frames, VINs, chassis numbers, engines, pipes, valves, fasteners, and hard plastic products.

This handheld pneumatic pin marking machine is designed for large and heavy metal parts such as automobile frames and chassis numbers. It can mark a variety of materials, including metal and plastic, up to a hardness of 60 HRC. Features include high-frequency linear forming, high-quality dot-matrix performance, super magnetism, deep marking, a multi-board configuration, lightweight construction, and portability. The machine can mark fixed characters, serial numbers, chassis numbers, dates, graphics, and other markings. Its four-way dual guide rails are designed for an extremely long service life and can operate continuously for more than 24 hours. The high-hardness alloy marking needle can be used to mark HRC65 materials. The non-integrated mainboard provides strong stability, and engraving content can be saved for future use. Specifications: - Device model: JMB-170 - Supported computer systems: Windows XP or Windows 7/8/10 - Marking areas: Type C: 170 x 110 mm; Type D: 80 x 20 mm; Type M: 100 x 20 mm; Type S: 135 x 50 mm; Type X: 140 x 40 mm - Marking depth: 0.011 mm - Engraving speed: approximately 1 second per character, adjustable - Marking direction: up, down, left, right, and flat sector - Operating temperature: -1 to 45C Package includes: 1 pneumatic marking machine, 1 pressure control valve, 1 power cable, and 1 user manual. A computer and air pump are not included. Air-source requirements: an air compressor with power above 800 W and pressure above 78 kg.
