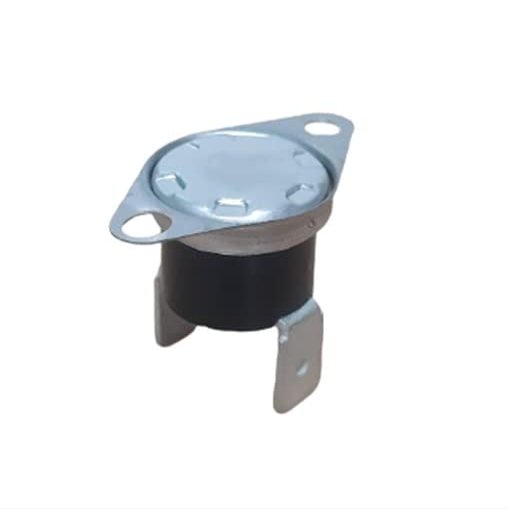

RS PRO Bimetal Thermostat, 75°C Close/90°C Open, 250 V AC, Fixed

Description

• RS PRO bimetal thermostat
• 75C closing / 90C opening
• 250 V AC
• Fixed
• Switch
• Microswitches and detector switches
• Thermal switch

Minimum temperature = 0C Maximum temperature = +150C Opening temperature = 90C Thermostat type = Bimetal Switching configuration = Normally closed Contact rating = 15 A at 125 V AC, 16 A at 250 V AC Rated contact voltage = 16 A 250 V / 15 A 125 V Connection type = Quick-connect tab terminal Reset type = Automatic RS PRO bimetal thermostat switches Introducing the RS PRO range of bimetal thermostat switches, ideal for regulating the temperature in equipment or objects that require temperature management, such as electrical appliances. The switch is equipped with a temperature-sensitive bimetal disc that actuates the thermally and electrically isolated contacts, which open when the ambient or surface temperature rises to the operating snap point of the metal disc. Features and benefits: This RS PRO bimetal thermal switch was designed for temperature monitoring and control in a wide range of electrical products, such as coffee makers, smoke detectors, heating systems, boilers and much more. Each thermostat is 12.4 mm (1/2 in) high, making it a compatible replacement part for a wide range of devices or suitable for new installations and designs requiring temperature sensors. These snap-action thermostats are available with automatic or manual reset options, phenolic, PPS or ceramic housings that provide dust-tight performance, and a variety of mounting brackets and terminal options. In addition, the switches offer a rapid response time to temperature changes due to the low mass of the disc and the compact size of the thermostat switch itself. Available as normally open and normally closed versions, with thermally and electrically isolated contacts. RoHS, REACH, UL/cUL and ENEC17 approved. Applications: Thermostat sensors or switches are mechanisms that
