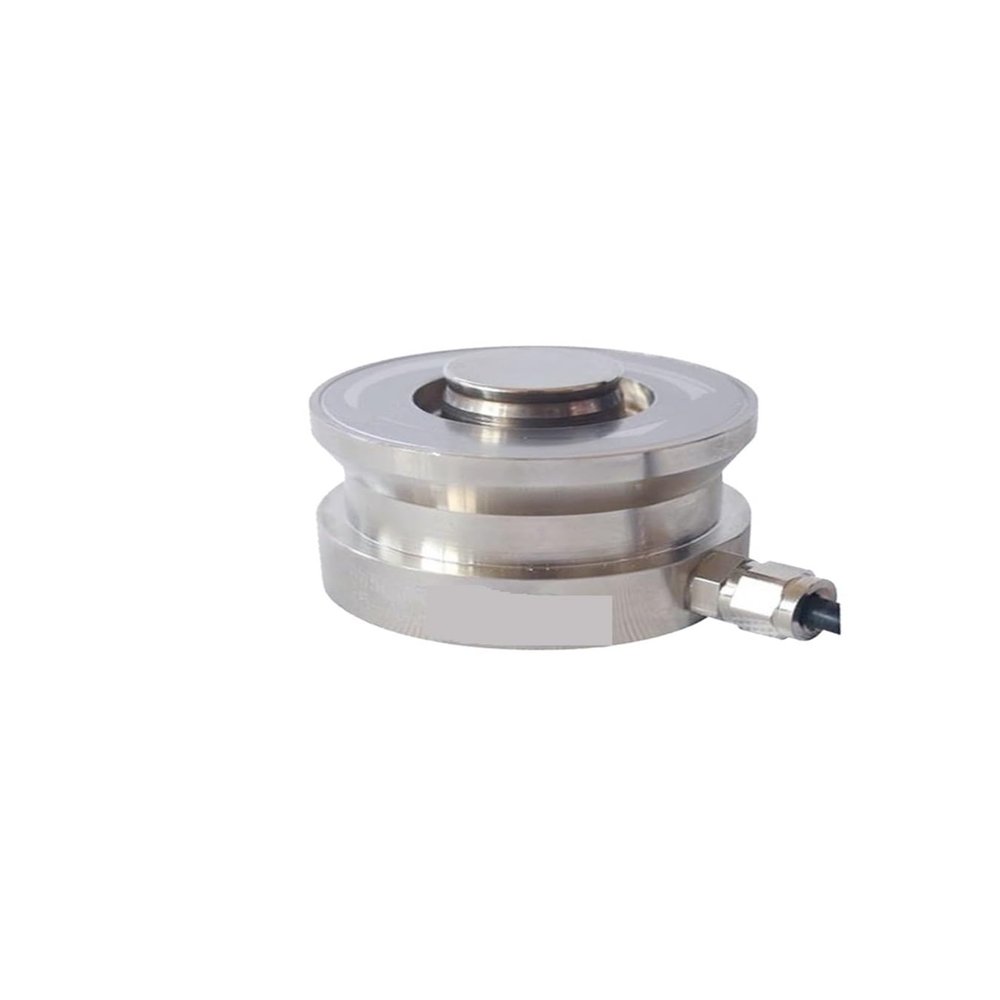

Ring Torsion Load Cell, Compact, 2.2T

Description

• High-precision ring torsion structure with sensitive response
• Good vibration resistance and easy installation
• Suitable for electronic scales, weighing, and force measurement
• High accuracy, strong stability, dustproof sealing, and wide measurement range
• Suitable for industrial force measurement, tension and compression measurement, and other weighing and force-measurement applications

Product description Rated capacities: 1T, 2.2T, 3.3T, 4.7T, 10T, 15T, 22T, 33T, 47T, 68T, 100T, 150T Sensitivity: 2.85 0.015 mV/V Hysteresis: 0.05% FS Nonlinearity: 0.1% FS Relative creep over 30 minutes: 0.03% FS Temperature effect on sensitivity: 0.03% FS/10C Temperature effect on zero signal: 0.03% FS/10C Zero output: 1.0% FS Input resistance: 1450 10 Output resistance: 1450 5 Insulation resistance: >5000 M Operating temperature range: -20 to +70C Safe overload limit: 120% FS Reference excitation voltage: 512 V Material: Alloy steel or stainless steel (custom-made to order) Protection rating: IP65 Wiring: Input+: Red Input: Black Output+: Green Output: White
