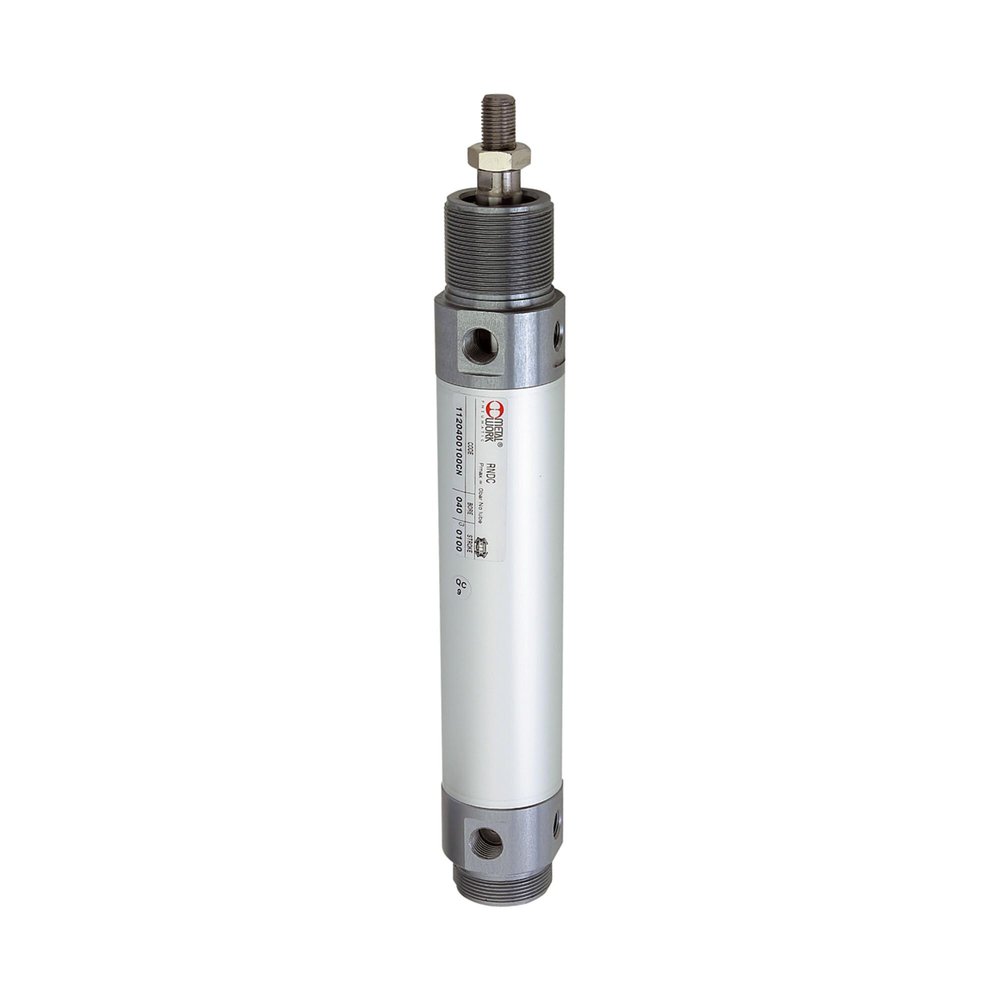

RIEGLER 105865-2.DM.40250 Double-Acting Round Cylinder, Magnetic Piston, Ø40 mm, 250 mm Stroke, G 1/4

Description

• Double-acting round cylinder for operation in both directions
• Magnetic piston for precise response
• Piston diameter: 40 mm
• Stroke: 250 mm
• Temperature range: -10C to +50C
• G 1/4 connection thread
• Maximum working pressure: 10 bar

Double-acting round cylinder with magnetic piston and no adjustable cushioning. Standard version with magnetic piston. Piston diameter: 40 mm; stroke: 250 mm. Piston rod seal: NBR (PU and FKM available at an additional cost). Connection: G 1/4. Temperature range: -10C to +50C. Piston: technopolymer. Tube and head: anodized aluminum alloy. Seals: NBR. Piston rod: C45 steel, hard-chromed. Maximum working pressure: 10 bar. Medium: filtered (50 m) and non-lubricated or lubricated compressed air. When using lubricated compressed air, ensure continuous lubrication. Response pressure: 0.4 bar for 32 and 40; 0.3 bar for 50. Tube: anodized aluminum. Piston rod thread: M12 1.25. See data sheet 18-3-1 and data sheet 18-3-1-B for mounting parts and accessories.
