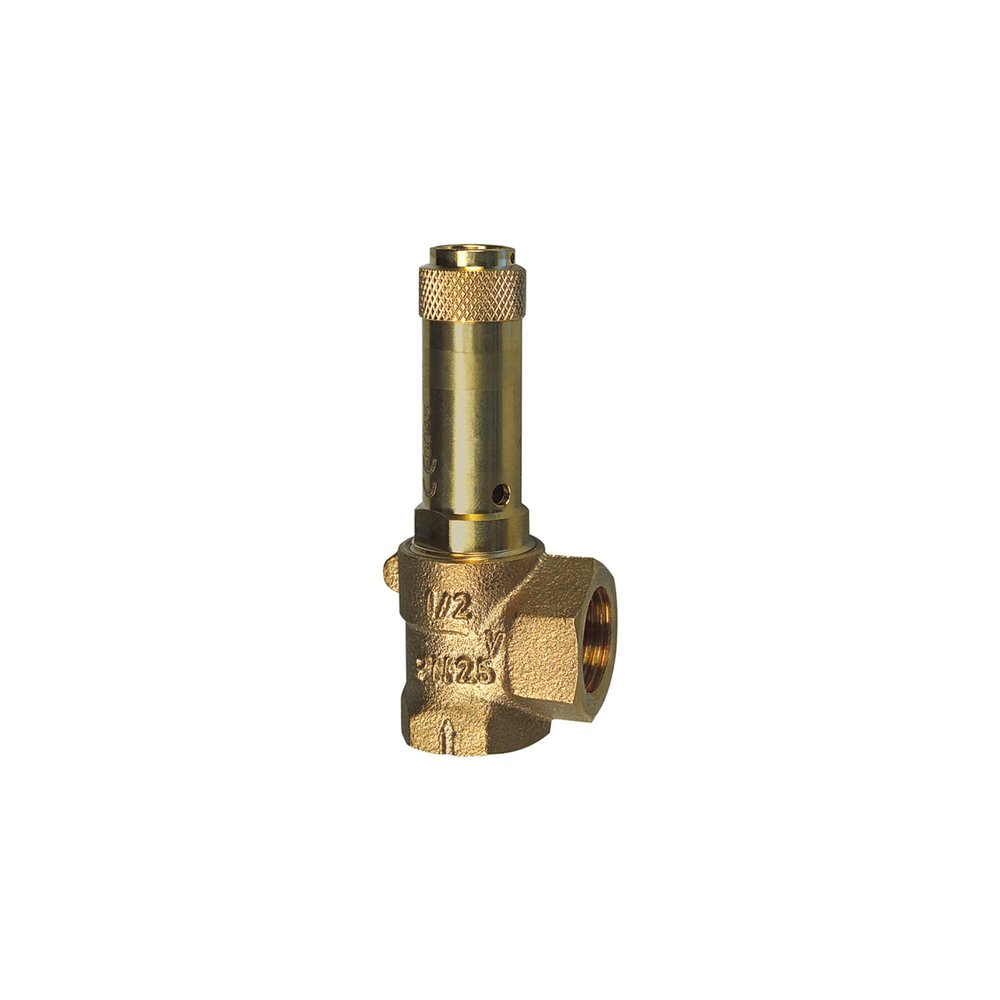

RIEGLER 105535-221.03-3.5 Angle Safety Valve, Fluids, G 1/2, Set Pressure 3.5 bar

Description

• Angle safety valve for fluids
• Gunmetal body, NBR membrane
• Operating temperature: -10C to [value not provided]
• G 1/2 thread, 27 mm wrench size
• Set pressure: 3.5 bar
• For non-toxic, non-flammable fluids
• No evaporation may occur during blow-off
• Membrane protects the spring; with lifting device

Angle safety valve with G 1/2 thread and 27 mm wrench size for non-toxic, non-flammable fluids. No evaporation may occur during blow-off. Equipped with a membrane to protect the spring and a lifting device. Component-tested, TV-SV 581 F. Further information is available in the data sheet on request. C-steel spring; G 1/2 thread; bonnet and internal parts made of brass; L1: 25 mm; operating temperature: -10C to [value not provided]; NBR membrane; gunmetal body; do: 93; inlet and outlet each with female thread according to DIN EN ISO 228-1; operating pressure: 17 bar; wrench size: 27 mm; L2: 20 mm.
