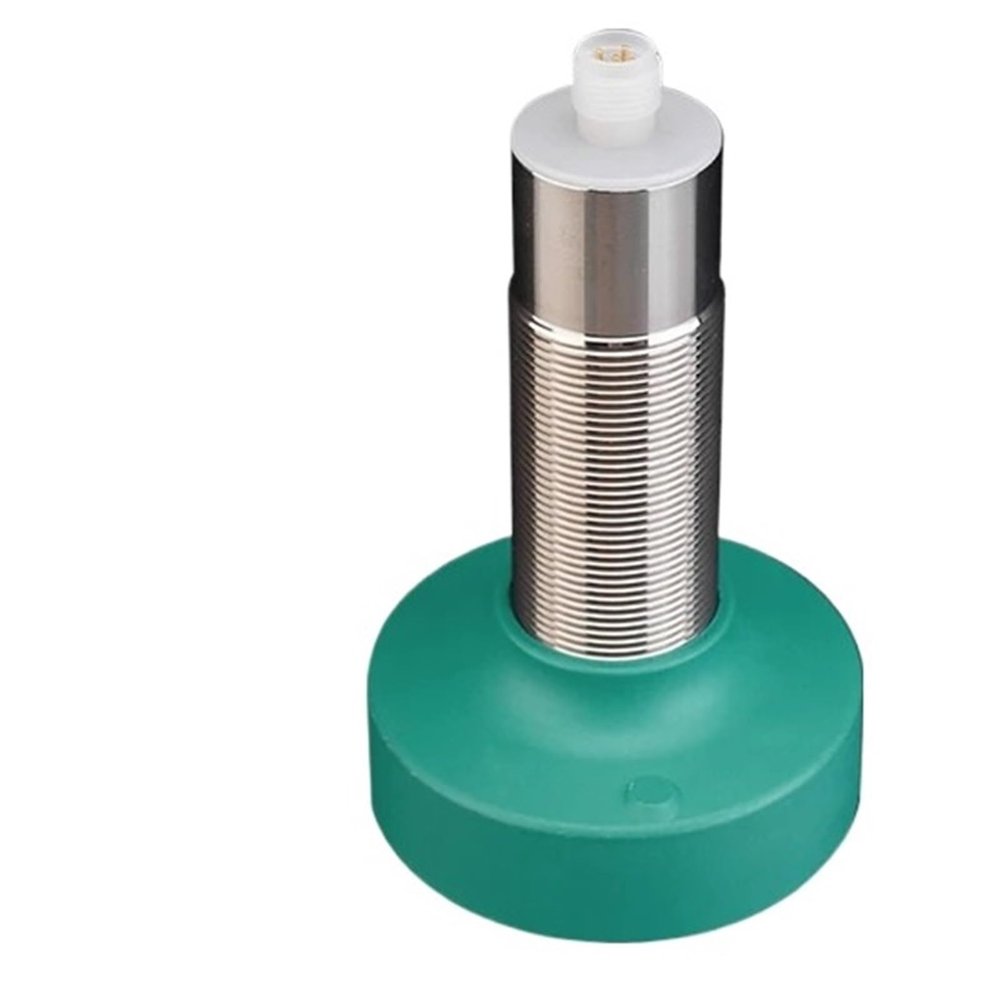

RGKYFUKL 6 m Ultrasonic Distance Proximity Sensor, NPN/PNP, 4–20 mA

Description

• Ultrasonic sensor, model GM30
• NPN/PNP analog output for liquid and material level detection
• Detection range: 4006000 mm; dead zone: 0400 mm
• Transducer frequency: approximately 65 kHz
• Response time: approximately 650 ms
• Repeat accuracy: 0.5%
• Supply voltage: 1030 VDC, 10% ripple
• No highly hazardous chemicals
• Polymer construction; IP65 protection rating
• H5 5-pin M12 connection with 2 m PVC cable
• Yellow, red, and green LED status indicators

Ultrasonic distance-measuring proximity sensor for liquid-level and material-level detection. The GM30 model has a 4006000 mm detection range, a 0400 mm dead zone, an approximately 65 kHz transducer frequency, and an approximately 650 ms response time. It operates on 1030 VDC with 10% ripple and has 0.5% repeat accuracy. The sensor uses a polymer housing with IP65 protection and connects via an H5 5-pin M12 connector with a 2 m PVC cable. The range can be adjusted by modifying the line for the farthest and shortest range. LED indicators display switching status, object detection, faults, programming functions, monitoring operation, and uncertain object detection.
